Item Code: K0338.04903

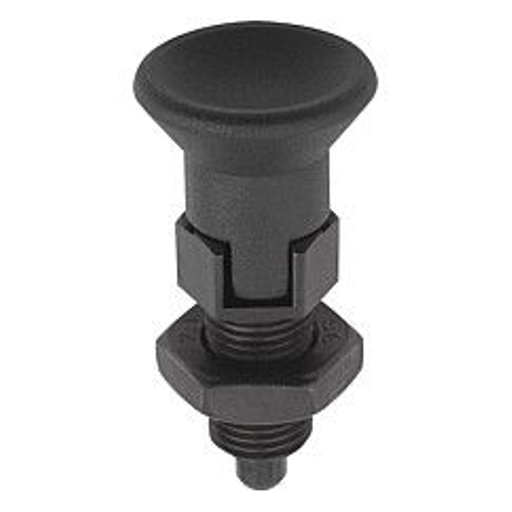

Indexing Plunger. M6 Thread. 0.75mm Thread Pitch. 3mm Pin Diameter. With Locking Slot. Hardened. Stainless Steel.

Item Code: K0338.04903

Indexing Plunger. M6 Thread. 0.75mm Thread Pitch. 3mm Pin Diameter. With Locking Slot. Hardened. Stainless Steel.

Material:
- Steel version, locking pin hardened:
quality class 5.8.
- Stainless steel version, locking pin hardened:
threaded sleeve 1.4305.
Locking pin 1.4034.
- Stainless steel version, locking pin not hardened:
threaded sleeve 1.4305.
Locking pin 1.4305. Mushroom knob in anthracite grey thermoplastic. Surface finish:
- Steel version, locking pin hardened:
black oxide finish. Locking pin ground.
- Stainless steel version, locking pin hardened:
natural finish. Locking pin ground.
- Stainless steel version, locking pin not hardened:
natural finish. Locking pin ground. Note:
Locking bolts are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the bolt has been manually disengaged. Form C or D is recommended for applications in which gradual disengagement of the locking bolt is desired, without any relocking of the locking pin.

Quick Links

Dispatch by 02/07/25

Black
3
M6x0.75
14
0.8
31.5
12
5
10
with locknut
Yes
10
4.5
Hardened
8
3.5

£17.08  ea. Excl VAT £20.50  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £14.01 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
- Steel version, locking pin hardened:
quality class 5.8.
- Stainless steel version, locking pin hardened:
threaded sleeve 1.4305.
Locking pin 1.4034.
- Stainless steel version, locking pin not hardened:
threaded sleeve 1.4305.
Locking pin 1.4305. Mushroom knob in anthracite grey thermoplastic. Surface finish:
- Steel version, locking pin hardened:
black oxide finish. Locking pin ground.
- Stainless steel version, locking pin hardened:
natural finish. Locking pin ground.
- Stainless steel version, locking pin not hardened:
natural finish. Locking pin ground. Note:
Locking bolts are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the bolt has been manually disengaged. Form C or D is recommended for applications in which gradual disengagement of the locking bolt is desired, without any relocking of the locking pin.

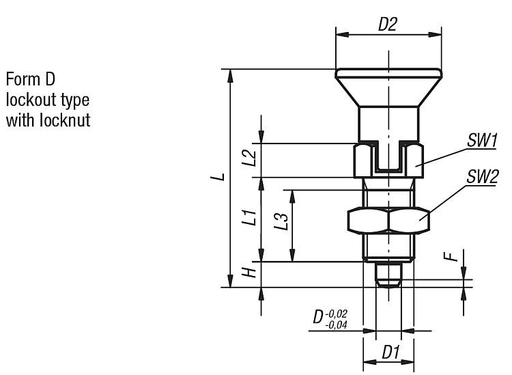

Component colourBlack
D3
D1M6x0.75
D214
Fx30°0.8
L31.5
L112
L25
L310
Locknutwith locknut
LockoutYes
Spring force final pressure F2 approx. N10
Spring force initial pressure F1 approx. N4.5
Surface finish / bodyHardened
SW18
Travel S3.5
STP
TypeLockout
Body MaterialStainless Steel
Thread SizeM6
Pin Diameter3mm
Pin Length3.5mm
