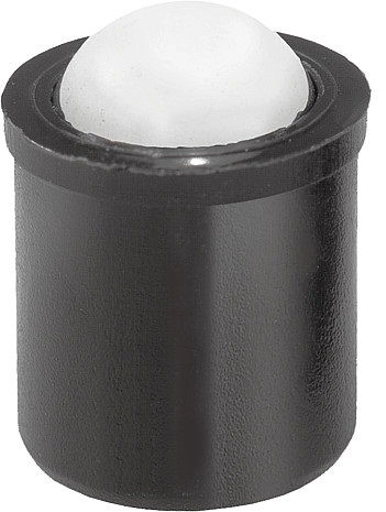

Spring Plunger. 8mm Hole Diameter. 9mm Long. 6.5mm Ball Diameter. 6N Spring Force. Plastic.

Item Code: K0334.208

Spring Plunger. 8mm Hole Diameter. 9mm Long. 6.5mm Ball Diameter. 6N Spring Force. Plastic.

Item Code: K0334.208

Spring Plunger. 8mm Hole Diameter. 9mm Long. 6.5mm Ball Diameter. 6N Spring Force. Plastic.

Material:
Sleeve thermoplastic.
Spring stainless steel.
Ball in plastic or hardened stainless steel. Surface finish:
Sleeve black.
Ball hardened, natural finish.

Quick Links

Dispatch by 09/06/25

Spring force final pressure F2 approx. N: 12

Spring force initial pressure F1 approx. N: 6

Material: POM

D: 8

L: 9

L1: 1

D1: 6.5

H: 1.8

D2: 8.5

£0.75 ea. Excl VAT £0.90 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
50 +	£0.64	14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Material:
Sleeve thermoplastic.
Spring stainless steel.
Ball in plastic or hardened stainless steel. Surface finish:
Sleeve black.
Ball hardened, natural finish.

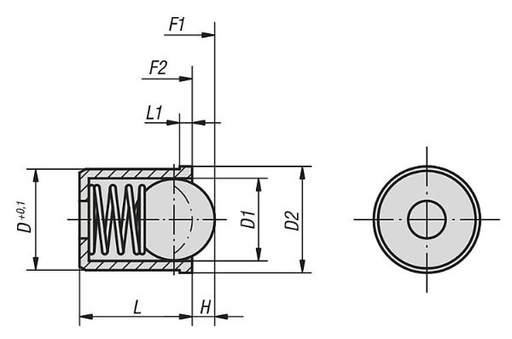

Product Dimensions

Spring force final pressure F2 approx. N	12
Spring force initial pressure F1 approx. N	6
Material	POM
D	8
L	9
L1	1
D1	6.5
H	1.8
D2	8.5

Downloads

STP

Specifications

Thread Size / Body Diameter	8mm
Length	9mm
Body Material	Plastic
Ball / Pin Material	POM
Thread Lock	No
