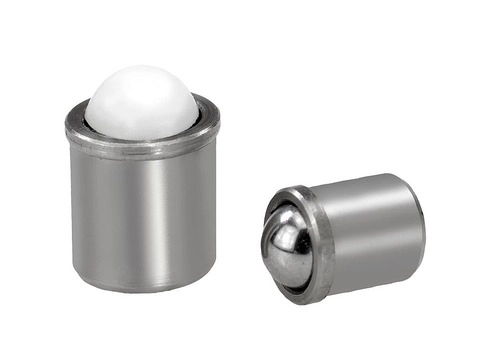

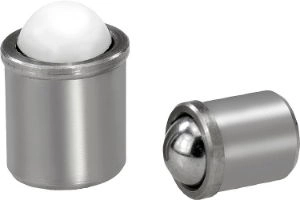

K0333 - Spring Plungers Smooth Version In Stainless Steel

K0333 - Spring Plungers Smooth Version In Stainless Steel

Material:
Sleeve and spring stainless steel.
Ball stainless steel or POM.

Version:
Sleeve bright.
Steel ball hardened and bright.

Spring Plunger. Hole Diameter 5mm. Length 12mm. Ball Diameter 4mm. Spring Force 19N Stainless Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Style

Line drawing placeholder

Move drawing here

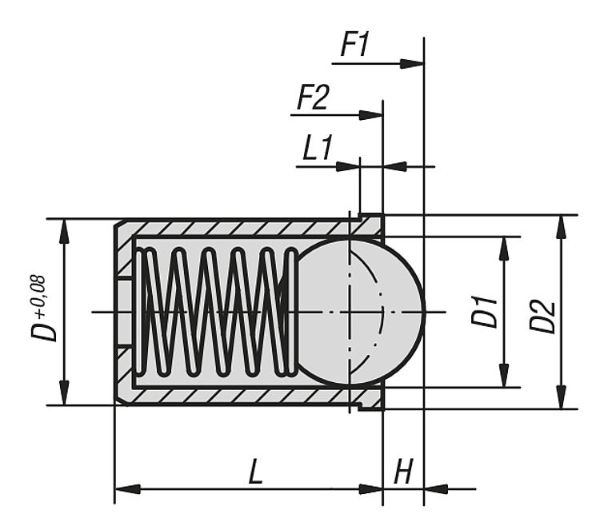

	D	D1	D2	L	L1	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	Travel S	Price (Exc. Tax)	Stock
Filters
K0333.02 View product	2	1.5	2.5	3	0.6	Stainless Steel	2.5	1.2	0.4	£1.60	72
K0333.03 View product	3	2.5	3.5	4	0.8	Stainless Steel	3.4	1.7	0.65	£1.04	529
K0333.04 View product	4	3	4.6	5	1	Stainless Steel	7	3	0.8	£0.86	135
K0333.104 View product	4	3	4.6	9	1	Stainless Steel	22	12	0.8	£1.51	2
K0333.304 View product	4	3	4.6	5	1	POM	7	3	0.6	£0.97	0
K0333.404 View product	4	3	4.6	9	1	POM	22	12	0.6	£1.65	15
K0333.05 View product	5	4	5.6	6	1	Stainless Steel	7	4	1	£0.89	582
K0333.105 View product	5	4	5.6	12	1	Stainless Steel	30	19	1	£1.67	24
K0333.305 View product	5	4	5.6	6	1	POM	7	4	0.8	£1.01	34
K0333.405 View product	5	4	5.6	12	1	POM	30	19	0.8	£1.86	0
K0333.06 View product	6	5	6.5	7	1	Stainless Steel	12	6	1.5	£0.92	0
K0333.106 View product	6	5	6.5	14	1	Stainless Steel	40	22	1.5	£1.74	0
K0333.306 View product	6	5	6.5	7	1	POM	12	6	1.3	£1.04	0
K0333.406 View product	6	5	6.5	14	1	POM	40	22	1.3	£1.90	0
K0333.08 View product	8	6.5	8.5	9	1	Stainless Steel	12	6	1.8	£1.13	74
K0333.108 View product	8	6	8.5	16	1	Stainless Steel	73	42	1.8	£2.13	52
K0333.308 View product	8	6.5	8.5	9	1	POM	12	6	1.6	£1.25	100
K0333.408 View product	8	6	8.5	16	1	POM	73	42	1.6	£2.31	0
K0333.10 View product	10	8	12	13.5	2.5	Stainless Steel	20	10	2.7	£1.47	0
K0333.110 View product	10	8	12	22	2.5	Stainless Steel	100	54	2.7	£2.33	72
K0333.310 View product	10	8	12	13.5	2.5	POM	20	10	2.6	£1.62	87
K0333.410 View product	10	8	12	22	2.5	POM	100	54	2.6	£2.58	0
K0333.12 View product	12	10	14	16	2.5	Stainless Steel	25	15	3.5	£1.76	196
K0333.112 View product	12	10	14	24	2.5	Stainless Steel	122	54	3.5	£2.82	0
K0333.312 View product	12	10	14	16	2.5	POM	25	15	3.3	£2.01	30
K0333.412 View product	12	10	14	24	2.5	POM	122	54	3.3	£3.14	0
