Item Code: K0330.16

Spring Plunger. M16 Thread. 32mm Long. 7.5mm Pin Diameter. 38N Spring Force. Stainless Steel.

Item Code: K0330.16

Spring Plunger. M16 Thread. 32mm Long. 7.5mm Pin Diameter. 38N Spring Force. Stainless Steel.

Material:
Sleeve in stainless steel 1.4305.
Pressure pin in plastic.
Spring in stainless steel 1.4310. LONG-LOK thread lock in nylon. Surface finish:
Natural finish.

Quick Links

Dispatch by 02/07/25

M16
7,5
5
32
14
3
2,5
5
38
85
3,9
2,5
Qty

£17.03  ea. Excl VAT £20.44  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £13.96 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty

Quick Links



Material:
Sleeve in stainless steel 1.4305.
Pressure pin in plastic.
Spring in stainless steel 1.4310. LONG-LOK thread lock in nylon. Surface finish:
Natural finish.

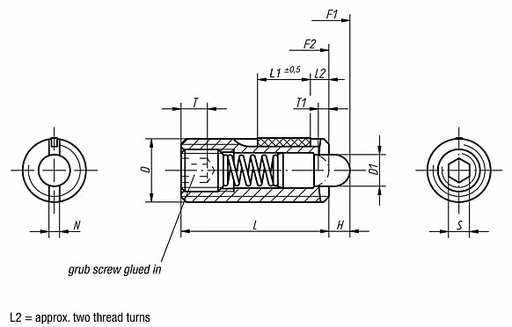

DM16
D17,5
H5
L32
L114
Loosening torque, approx. Nm3
N2,5
S5
Spring force initial pressure F1 approx. N38
Spring force final pressure F2 approx. N85
Tightening torque approx. Nm3,9
T12,5
STP
Thread Size / Body DiameterM16
Length32mm
Body MaterialStainless Steel
Ball / Pin MaterialPOM
Thread LockYes
