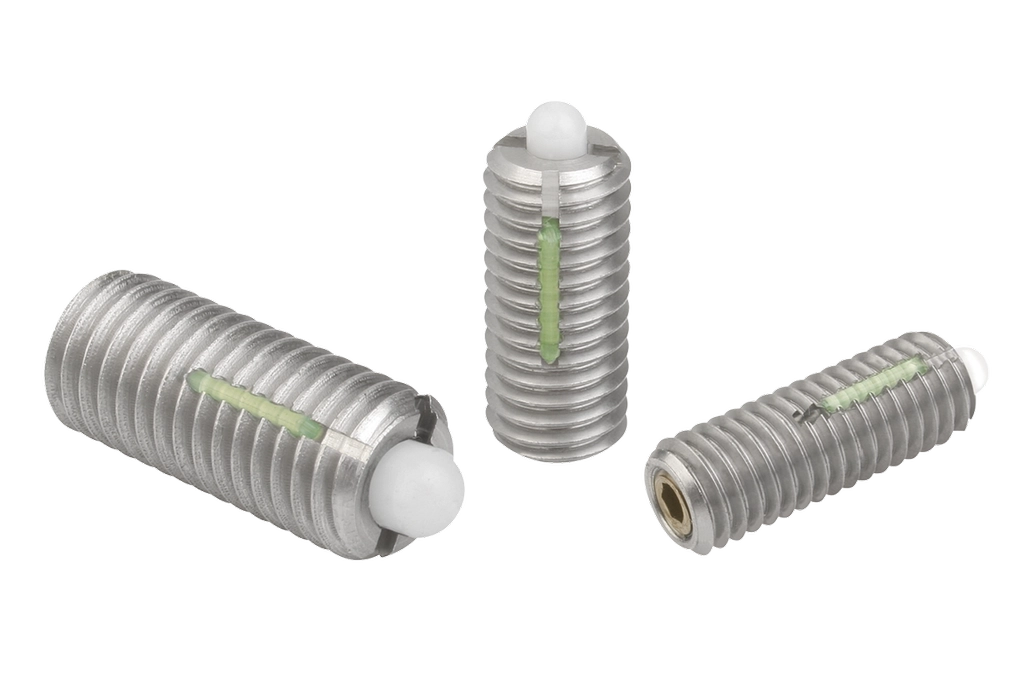

K0330 Inch - Spring Plungers With Hex Socket And POM Thrust Pin In Stainless Steel With Thread Lock

K0330 Inch - Spring Plungers With Hex Socket And POM Thrust Pin In Stainless Steel With Thread Lock

Material:
Body 1.4305 (AISI 303 equivalent).
Thrust pin POM.
Spring 1.4310 (AISI 301 equivalent).
LONG-LOK thread lock Nylon.

Version:
Bright.

Note:
For the inch series, dimension D and S are in inches, all other dimensions are in mm.

Drawing reference:
L2 = ca. two full threads
1) grub screw glued-in

Select your sizes

Line drawing placeholder

Move drawing here

	D	D1	H	L	L1	N	S	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	T1	Spring Strength	Price (Exc. Tax)	Stock
Filters
K0330.A5 View product	1/2-13	6	4	28	10	2	4	47	10	2	standard	£15.62	0
K0330.A2 View product	1/4-20	2.7	2.5	20	7	1	2	17	6	1	standard	£8.35	0
K0330.AJ View product	1/4-28	2.7	2.5	20	7	1	2	17	6	1	standard	£8.35	0
K0330.A1 View product	10-32	2.4	2.3	18	7	0.8	1.5	17	5	0.8	standard	£8.37	0
K0330.A4 View product	3/8-16	4	3	22	9	1.6	3	31	8	1.4	standard	£10.82	0
K0330.A3 View product	5/16-18	3.5	3	22	8	1.2	2.5	29	7	1.4	standard	£9.39	0
K0330.A6 View product	5/8-11	7.5	5	32	14	2.5	5	100	45	2.5	standard	£24.58	0

Showing products per page

{
    "id": "1579",
    "layout_id": "",
    "parent_id": "1559",
    "name": "K0330 Inch - Spring Plungers With Hex Socket And POM Thrust Pin In Stainless Steel With Thread Lock",
    "slug": "k0330-inch-spring-plungers-with-hex-socket-and-pom-thrust-pin-in-stainless-steel-with-thread-lock",
    "meta_title": "K0330 Inch - Spring Plungers With Hex Socket And POM Thrust Pin In Stainless Steel With Thread Lock",
    "meta_description": "",
    "long_description": "",
    "short_description": "<div id=\"category-description-short-1\">\r\n<p><strong>Material:<\/strong><br \/>\r\nBody 1.4305 (AISI 303 equivalent).<br \/>\r\nThrust pin POM.<br \/>\r\nSpring 1.4310 (AISI 301 equivalent).<br \/>\r\nLONG-LOK thread lock Nylon.<\/p>\r\n\r\n<p><strong>Version:<\/strong><br \/>\r\nBright.<\/p>\r\n\r\n<p><strong>Note:<\/strong><br \/>\r\nFor the inch series, dimension D and S are in inches, all other dimensions are in mm.<\/p>\r\n\r\n<p><strong>Drawing reference:<\/strong><br \/>\r\nL2 = ca. two full threads<br \/>\r\n1) grub screw glued-in<\/p>\r\n\r\n<div style=\"text-align: left;\">&nbsp;<\/div>\r\n\r\n<div class=\"category-desc-drawings\" style=\"display: flex; justify-content: center; flex-wrap: wrap; gap: 20px; margin-top: 20px;\"><img alt=\"Spring Plunger\" src=\"https:\/\/images.shopcdn.co.uk\/90\/2e\/902e3dca904da7d14ba50737304f49db\/1024x1024\/webp\/fit?quality=100&amp;compression=100&amp;t=1761823369\" \/><\/div>\r\n<\/div>",
    "active": "1",
    "visible": "1",
    "show_products": "1",
    "order_num": "",
    "default_sortby": "aa",
    "deleted": "0",
    "created": "2025-11-13 08:41:13",
    "updated": "2025-11-13 10:13:18",
    "images": [
        {
            "url": "https:\/\/images.shopcdn.co.uk\/da\/ce\/dacef1d5a7f796344d084fe89f554574\/1024x1024\/webp\/fit?quality=100&amp;compression=100",
            "contain_url": "https:\/\/images.shopcdn.co.uk\/da\/ce\/dacef1d5a7f796344d084fe89f554574\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "crop_url": "https:\/\/images.shopcdn.co.uk\/da\/ce\/dacef1d5a7f796344d084fe89f554574\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "original_url": "https:\/\/images.shopcdn.co.uk\/da\/ce\/dacef1d5a7f796344d084fe89f554574\/1200x800\/webp\/resize?quality=100&amp;compression=100"
        }
    ],
    "is_parent_category": false,
    "is_product_group": false,
    "parent_category_title": "Inch Spring Plungers",
    "parent_category_url": "inch-spring-plungers",
    "path": "Inch Parts > Inch Spring Plungers > K0330 Inch - Spring Plungers With Hex Socket And POM Thrust Pin In Stainless Steel With Thread Lock",
    "path_list": [
        "Inch Parts",
        "Inch Spring Plungers",
        "K0330 Inch - Spring Plungers With Hex Socket And POM Thrust Pin In Stainless Steel With Thread Lock"
    ],
    "selectedTags": [],
    "availableProducts": {
        "key": "available",
        "doc_count": 7,
        "stockLevel": {
            "untracked": 7,
            "in_stock": 0
        }
    },
    "unavailableProducts": {
        "key": "unavailable",
        "doc_count": 0
    },
    "product_attributes": [
        "D",
        "D1",
        "H",
        "L",
        "L1",
        "N",
        "S",
        "Spring force final pressure F2 approx. N",
        "Spring force initial pressure F1 approx. N",
        "T1",
        "Spring Strength"
    ]
}

K0330 Inch - Spring Plungers With Hex Socket And POM Thrust Pin In Stainless Steel With Thread Lock

£15.62

£8.35

£8.35

£8.37

£10.82

£9.39

£24.58

Spring Plunger With Hex Socket And POM Thrust Pin. 1/2"-13 Thread. 28mm Long. 6mm Pin Diameter. Standard Spring Force. Stainless Steel.

Spring Plunger With Hex Socket And POM Thrust Pin. 1/4"-20 Thread. 20mm Long. 2.7mm Pin Diameter. Standard Spring Force. Stainless Steel.

Spring Plunger With Hex Socket And POM Thrust Pin. 1/4"-28 Thread. 20mm Long. 2.7mm Pin Diameter. Standard Spring Force. Stainless Steel.

Spring Plunger With Hex Socket And POM Thrust Pin. 10-32" Thread. 18mm Long. 2.4mm Pin Diameter. Standard Spring Force. Stainless Steel.

Spring Plunger With Hex Socket And POM Thrust Pin. 3/8"-16 Thread. 22mm Long. 4mm Pin Diameter. Standard Spring Force. Stainless Steel.

Spring Plunger With Hex Socket And POM Thrust Pin. 5/16"-18 Thread. 22mm Long. 3.5mm Pin Diameter. Standard Spring Force. Stainless Steel.

Spring Plunger With Hex Socket And POM Thrust Pin. 5/8"-11 Thread. 32mm Long. 7.5mm Pin Diameter. Standard Spring Force. Stainless Steel.
