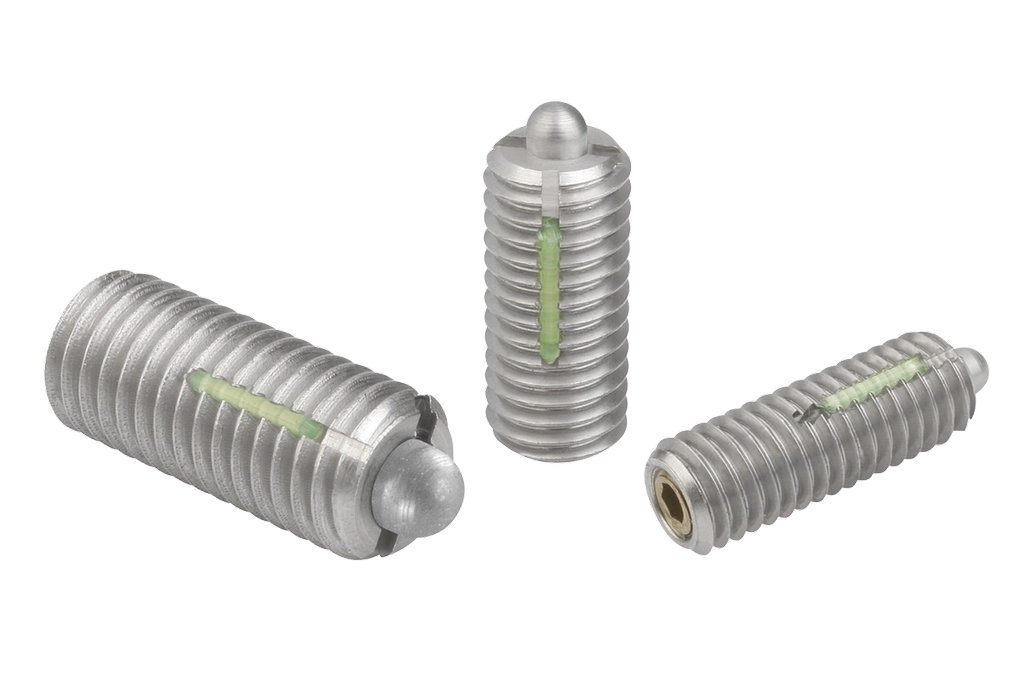

K0329 Inch - Spring Plungers With Hex Socket And Thrust Pin In Stainless Steel With Thread Lock

K0329 Inch - Spring Plungers With Hex Socket And Thrust Pin In Stainless Steel With Thread Lock

Material:
Body 1.4305 (AISI 303 equivalent).
Thrust pin 1.4034 (AISI 420 equivalent).
Spring 1.4310 (AISI 301 equivalent).
LONG-LOK thread lock Nylon.

Version:
Bright.
Thrust pin hardened.

Note:
For the inch series, dimension D and S are in inches, all other dimensions are in mm.

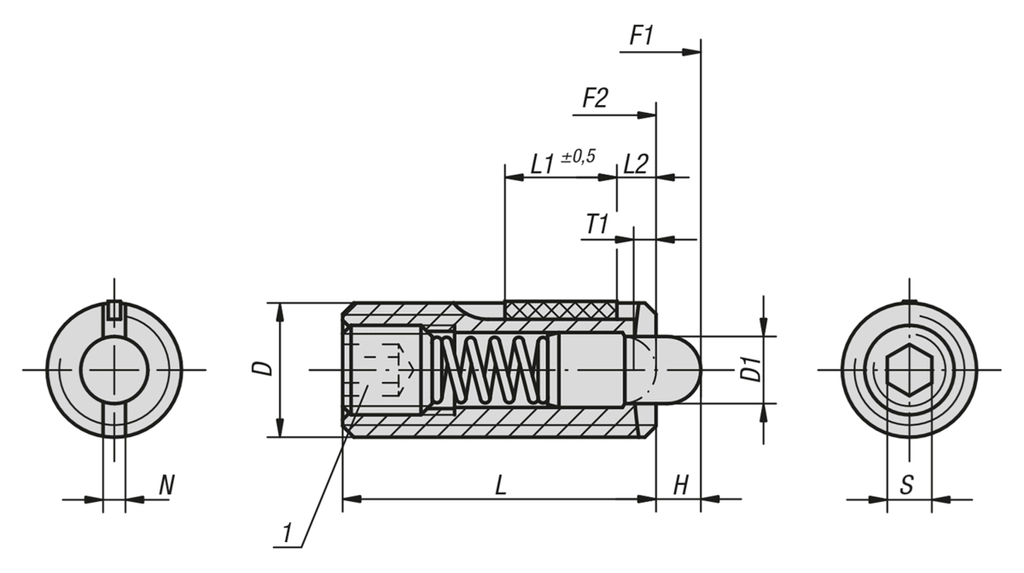

Drawing reference:
L2 = ca. two full threads
1) grub screw glued-in

Select your sizes

Line drawing placeholder

Move drawing here

	D	D1	H	L	L1	N	S	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	T1	Spring Strength	Price (Exc. Tax)	Stock
Filters
K0329.A5 View product	1/2-13	6	4	28	10	2	4	47	10	2	standard	£15.40	0
K0329.A2 View product	1/4-20	2.7	2.5	20	7	1	2	17	6	1	standard	£8.23	0
K0329.AJ View product	1/4-28	2.7	2.5	20	7	1	2	17	6	1	standard	£8.23	0
K0329.A1 View product	10-32	2.4	2.3	18	7	0.8	1.5	17	5	0.8	standard	£8.23	0
K0329.A4 View product	3/8-16	4	3	22	9	1.6	3	31	8	1.4	standard	£10.65	0
K0329.A3 View product	5/16-18	3.5	3	22	8	1.2	2.5	29	7	1.4	standard	£9.18	0
K0329.A6 View product	5/8-11	7.5	5	32	14	2.5	5	100	45	2.5	standard	£24.13	0
