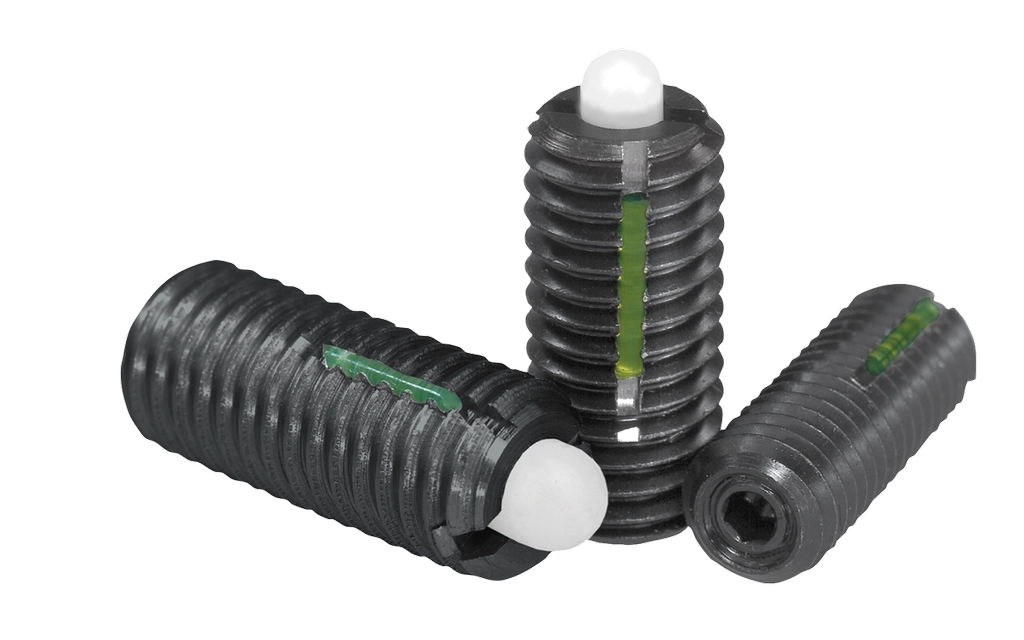

K0328 Inch - Spring Plungers With Hex Socket And POM Thrust Pin In Steel With Thread Lock

K0328 Inch - Spring Plungers With Hex Socket And POM Thrust Pin In Steel With Thread Lock

Material:
Sleeve steel grade 5.8.
Thrust pin POM.
Spring grade D spring steel wire.
Thread lock nylon.

Version:
Black oxidized.

Note:
For the inch series, dimension D and S are in inches, all other dimensions are in mm.

Drawing reference:
L2 = ca. two full threads
1) grub screw glued-in


Spring Plunger

K0328 Inch - Spring Plungers With Hex Socket And POM Thrust Pin In Steel With Thread Lock

Line drawing placeholder

Move drawing here

D D1 H L L1 N S Spring force final pressure F2 approx. N Spring force initial pressure F1 approx. N T1 Spring Strength Price (Exc. Tax) Stock Qty basket

Filters
K0328.1A5
View product 		1/2-13 6 4 28 10 2 4 27 5 2 light
£9.05
0
K0328.A5
View product 		1/2-13 6 4 28 10 2 4 55 10 2 standard
£8.60
0
K0328.1A2
View product 		1/4-20 2.7 2.5 20 7 1 2 9 3 1 light
£4.64
0
K0328.A2
View product 		1/4-20 2.7 2.5 20 7 1 2 20 7 1 standard
£4.21
0
K0328.1AJ
View product 		1/4-28 2.7 2.5 20 7 1 2 9 3 1 light
£4.64
0
K0328.AJ
View product 		1/4-28 2.7 2.5 20 7 1 2 20 7 1 standard
£4.21
0
K0328.1A1
View product 		10-32 2.4 2.3 18 7 0.8 1.5 10 3 0.8 light
£4.43
0
K0328.A1
View product 		10-32 2.4 2.3 18 7 0.8 1.5 20 6 0.8 standard
£4.07
0
K0328.1A4
View product 		3/8-16 4 3 22 9 1.6 3 16 4 1.4 light
£5.90
0
K0328.A4
View product 		3/8-16 4 3 22 9 1.6 3 35 9 1.4 standard
£5.56
0
K0328.1A3
View product 		5/16-18 3.5 3 22 8 1.2 2.5 16 4 1.4 light
£5.05
0
K0328.A3
View product 		5/16-18 3.5 3 22 8 1.2 2.5 35 9 1.4 standard
£4.79
0
K0328.1A6
View product 		5/8-11 7.5 5 32 14 2.5 5 45 20 2.5 light
£12.13
0
K0328.A6
View product 		5/8-11 7.5 5 32 14 2.5 5 100 45 2.5 standard
£11.61
0
