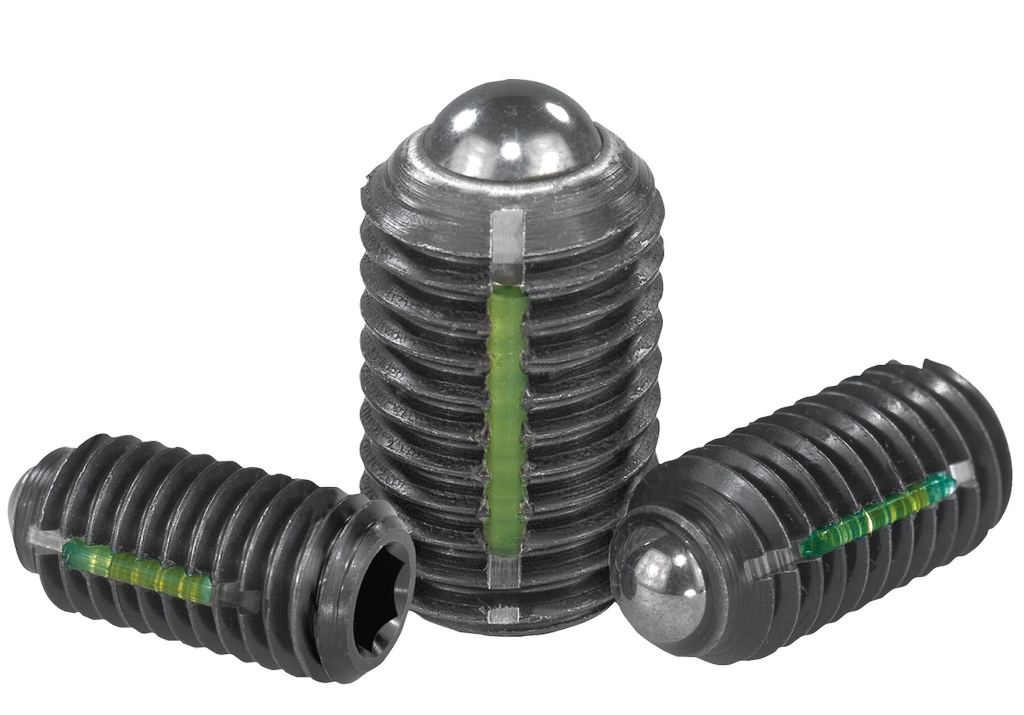

K0325 Inch - Spring Plungers With Hex Socket And Ball In Steel With Thread Lock

K0325 Inch - Spring Plungers With Hex Socket And Ball In Steel With Thread Lock

Material:
Sleeve steel grade 5.8.
Ball steel.
Spring grade D spring steel wire.
Thread lock nylon.

Version:
Black oxidized. Ball hardened.

Note:
For the inch series, dimension D and S are in inches, all other dimensions are in mm.

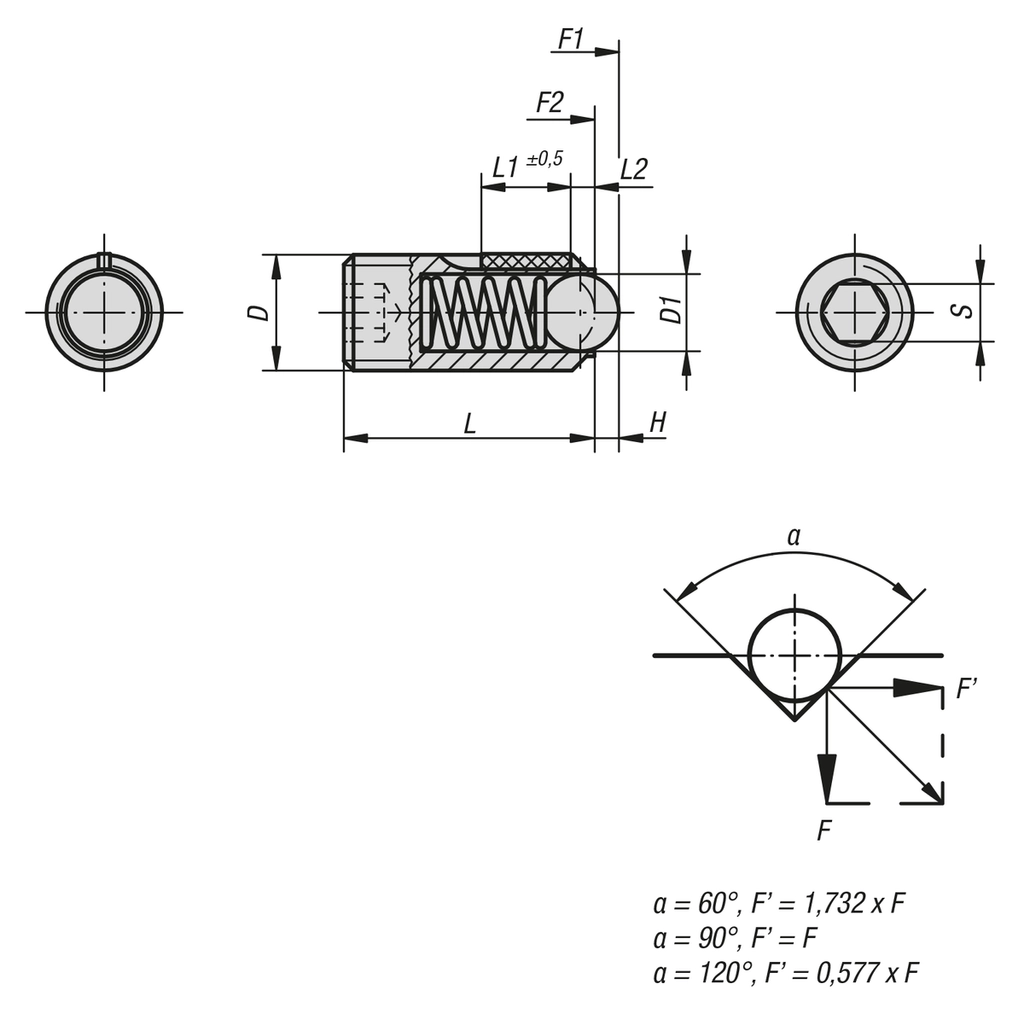

Drawing reference:
L2 = approx. 2x thread pitch


Spring Plunger

K0325 Inch - Spring Plungers With Hex Socket And Ball In Steel With Thread Lock

Line drawing placeholder

Move drawing here

D D1 H L L1 S Spring force final pressure F2 approx. N Spring force initial pressure F1 approx. N Spring Strength Price (Exc. Tax) Stock Qty basket

Filters
K0325.2A5
View product 		1/2-13 8 2.5 26 10 7/32 120 66 intensified
£7.33
0
K0325.A5
View product 		1/2-13 8 2.5 26 10 7/32 55 30 standard
£6.93
0
K0325.2A2
View product 		1/4-20 3.5 1 15 7 1/8 40 28 intensified
£3.27
0
K0325.A2
View product 		1/4-20 3.5 1 15 7 1/8 13 9 standard
£3.08
0
K0325.2AJ
View product 		1/4-28 3.5 1 15 7 1/8 40 28 intensified
£3.27
0
K0325.AJ
View product 		1/4-28 3.5 1 15 7 1/8 13 9 standard
£3.08
0
K0325.2A4
View product 		3/8-16 6 2 23 9 3/16 100 66 intensified
£4.40
0
K0325.A4
View product 		3/8-16 6 2 23 9 3/16 40 20 standard
£4.08
0
K0325.2A3
View product 		5/16-18 5 1.5 18 8 5/32 73 47 intensified
£4.02
0
K0325.A3
View product 		5/16-18 5 1.5 18 8 5/32 30 15 standard
£3.72
0
K0325.2A6
View product 		5/8-11 10 3.5 33 14 5/16 180 90 intensified
£10.45
0
K0325.A6
View product 		5/8-11 10 3.5 33 14 5/16 125 65 standard
£9.86
0
