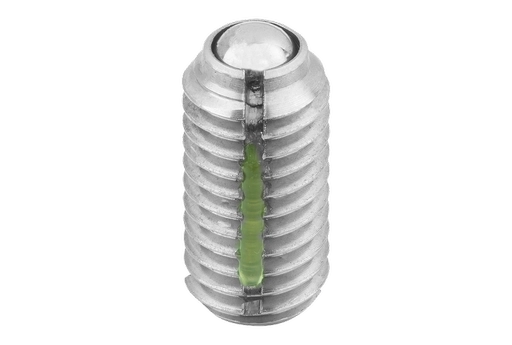

Spring Plunger With Slot And Ball. 3/8"-16 Thread. 19mm Long. 6mm Ball Diameter. Intensified Spring Force. Stainless Steel.

Item Code: K0322.2A4

Spring Plunger With Slot And Ball. 3/8"-16 Thread. 19mm Long. 6mm Ball Diameter. Intensified Spring Force. Stainless Steel.

Item Code: K0322.2A4

Material:
body 1.4305 (AISI 303 equivalent).
Ball 1.4034 (AISI 420 equivalent).
Spring 1.4310 (AISI 301 equivalent).
LONG-LOK thread lock, Nylon.

Version:
Bright. Ball hardened.

Note:
For the inch series, dimension D is in inches, all other dimensions are in mm.

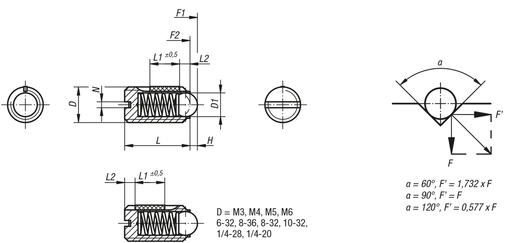

Drawing Reference:
L2 = approx. 2x thread pitch

Quick Links

Dispatch by 07/12/25

Spring Strength: intensified

D: 3/8-16

D1: 6

H: 2

L: 19

L1: 9

N: 1.6

Spring force final pressure F2 approx. N: 100

Spring force initial pressure F1 approx. N: 66

£6.94 ea. Excl VAT £8.33 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £15 ex VAT

Spend another £15 to qualify

modal placeholder

Quick Links

Spring Strength	intensified
D	3/8-16
D1	6
H	2
L	19
L1	9
N	1.6
Spring force final pressure F2 approx. N	100
Spring force initial pressure F1 approx. N	66
