Back to K0321 Inch - Spring Plungers With Slot And Ball In Steel With Thread Lock

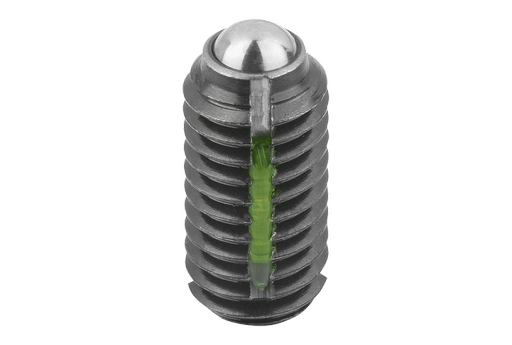

Spring Plunger With Slot And Ball. 1/2"-13 Thread. 22mm Long. 8mm Ball Diameter. Standard Spring Force. Steel.

Item Code: K0321.A5

Spring Plunger With Slot And Ball. 1/2"-13 Thread. 22mm Long. 8mm Ball Diameter. Standard Spring Force. Steel.

Item Code: K0321.A5

Material:
Sleeve steel grade 5.8.
Ball steel.
Spring grade D spring steel wire.
Thread lock nylon.

Version:
Black oxidized. Ball hardened.

Note:
For the inch series, dimension D is in inches, all other dimensions are in mm.

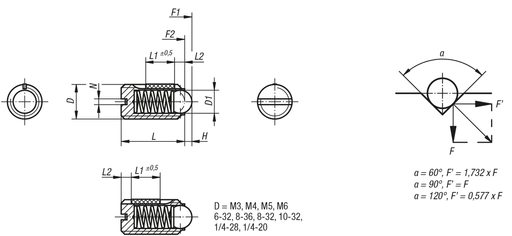

Drawing Reference:
L2 = approx. 2x thread pitch

Quick Links

Dispatch by 07/12/25

Spring Strength: standard

D: 1/2-13

D1: 8

H: 2.5

L: 22

N: 2

Spring force final pressure F2 approx. N: 55

Spring force initial pressure F1 approx. N: 30

T1: 10

£5.35 ea. Excl VAT £6.42 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £15 ex VAT

Spend another £15 to qualify

modal placeholder

Quick Links

Spring Strength	standard
D	1/2-13
D1	8
H	2.5
L	22
N	2
Spring force final pressure F2 approx. N	55
Spring force initial pressure F1 approx. N	30
T1	10
