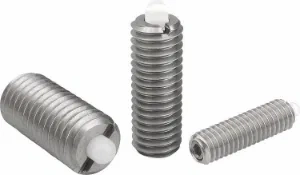

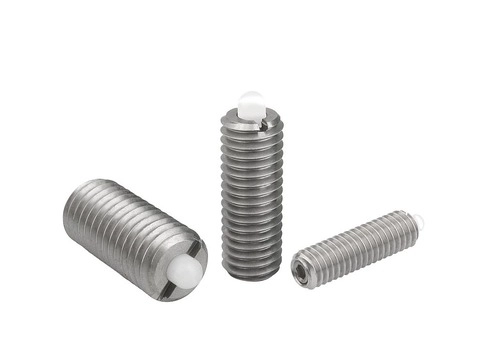

K0320 - Spring Plungers With Hexagon Socket And POM Thrust Pin In Stainless Steel

List view Grid view
K0320 - Spring Plungers With Hexagon Socket And POM Thrust Pin In Stainless Steel

Material:
Sleeve 1.4305.
Thrust pin POM.
Spring 1.4310.

Version:
Bright.

Drawing reference:
1) grub screw glued in

Spring Plunger. Thread M10. Length 22mm. Ball Diameter 4mm. Spring Force 8N. Stainless Steel.

K0320 - Spring Plungers With Hexagon Socket And POM Thrust Pin In Stainless Steel

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm+

Choose Type

Hook

Latch

Vertical Latch

Assembly key g

D

D1

H

L

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0320.03

View product

Spring Plunger. M3 Thread. 10mm Length. 1mm Ball Diameter. 0.5N Spring Force.. Stainless Steel.

 - M3 1 1,5 10 0,4 0,7 0,5 3 1 £6.08 £7.30

0

Dispatched 02/07/25

Assembly key g

D

D1

H

L

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0320.04

View product

Spring Plunger. Thread M4. Length 15mm. Ball Diameter 1.5mm. Spring Force 5N. Stainless Steel.

 14 M4 1,5 1,5 15 0,6 1,3 5 16 0,6 £5.09 £6.11

23

23 in stock

Assembly key g

D

D1

H

L

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0320.05

View product

Spring Plunger. Thread M5. Length 18mm. Ball Diameter 2.4mm. Spring Force 5N. Stainless Steel.

 14 M5 2,4 2,3 18 0,8 1,5 5 17 0,8 £5.02 £6.02

0

Dispatched 02/07/25

Assembly key g

D

D1

H

L

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0320.06

View product

Spring Plunger. Thread M6. Length 20mm. Ball Diameter 2.7mm. Spring Force 6N. Stainless Steel.

 14 M6 2,7 2,5 20 1 2 6 17 1 £5.02 £6.02

0

Dispatched 02/07/25

Assembly key g

D

D1

H

L

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0320.08

View product

Spring Plunger. Thread M8. Length 22mm. Ball Diameter 3.5mm. Spring Force 7N. Stainless Steel.

 33 M8 3,5 3 22 1,2 2,5 7 29 1,4 £5.76 £6.91

0

Dispatched 02/07/25

Assembly key g

D

D1

H

L

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0320.10

View product

Spring Plunger. Thread M10. Length 22mm. Ball Diameter 4mm. Spring Force 8N. Stainless Steel.

 50 M10 4 3 22 1,6 3 8 31 1,4 £6.65 £7.98

0

Dispatched 02/07/25

Assembly key g

D

D1

H

L

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0320.12

View product

Spring Plunger. Thread M12. Length 28mm. Ball Diameter 6mm. Spring Force 10N. Stainless Steel.

 70 M12 6 4 28 2 4 10 47 2 £8.52 £10.22

0

Dispatched 02/07/25

Assembly key g

D

D1

H

L

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0320.16

View product

Spring Plunger. Thread M16. Length 32mm. Ball Diameter 7.5mm. Spring Force 38N. Stainless Steel.

 100 M16 7,5 5 32 2,5 5 38 85 2,5 £13.42 £16.10
