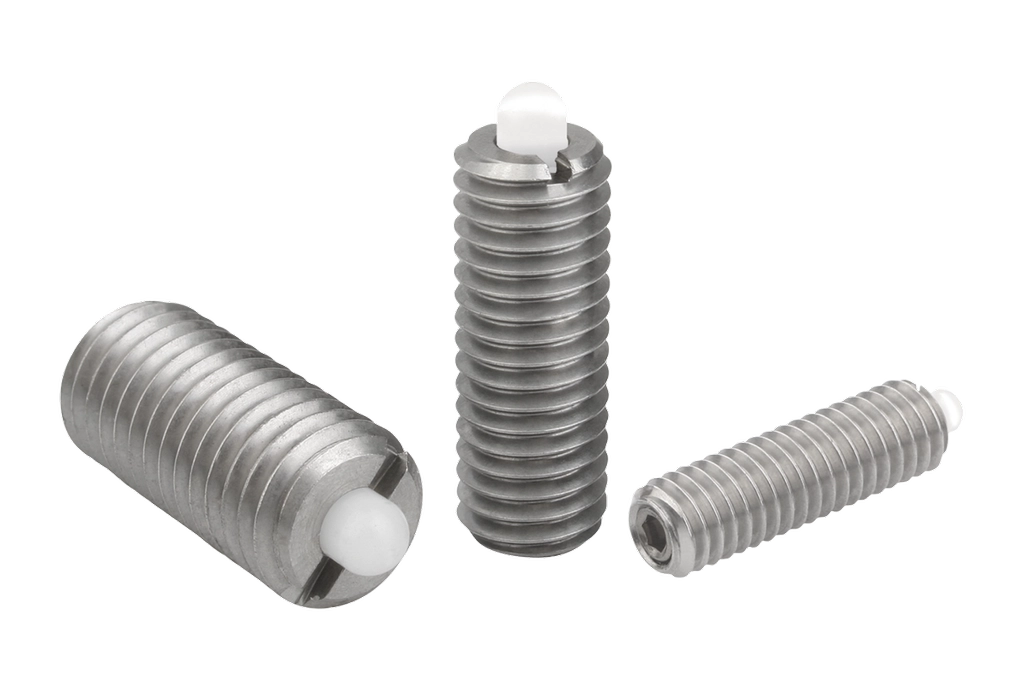

K0320 Inch - Spring Plungers With Hex Socket And POM Thrust Pin In Stainless Steel

K0320 Inch - Spring Plungers With Hex Socket And POM Thrust Pin In Stainless Steel

Material:
Body 1.4305 (AISI 303 equivalent).
Thrust pin POM.
Spring 1.4310 (AISI 301 equivalent).

Version:
Bright.

Note:
For the inch series, dimension D and S are in inches, all other dimensions are in mm.

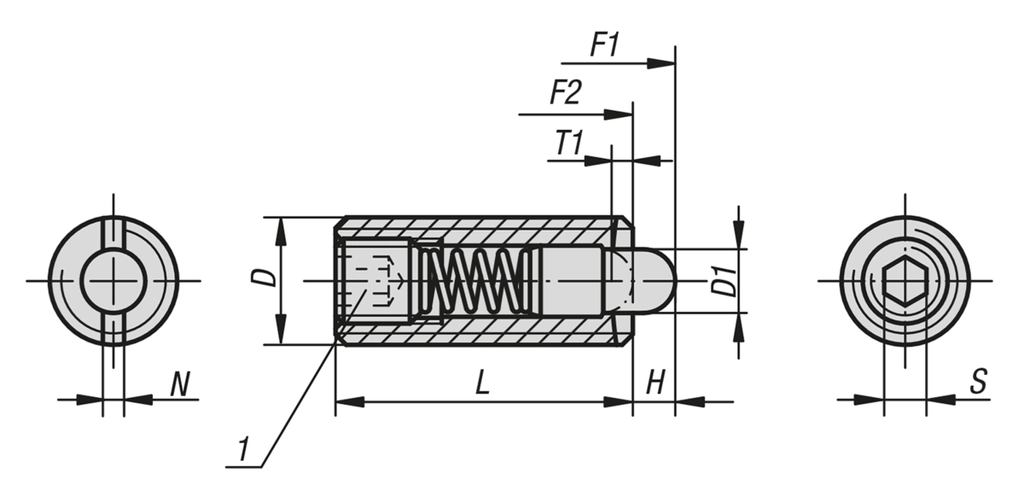

Drawing reference:
1) grub screw glued in


Spring Plunger

K0320 Inch - Spring Plungers With Hex Socket And POM Thrust Pin In Stainless Steel

Line drawing placeholder

Move drawing here

D D1 H L N S Spring force final pressure F2 approx. N Spring force initial pressure F1 approx. N T1 Spring Strength Price (Exc. Tax) Stock Qty basket

Filters
K0320.A5
View product 		1/2-13 6 4 28 2 4 47 10 2 standard
£12.27
0
K0320.A2
View product 		1/4-20 2.7 2.5 20 1 2 17 6 1 standard
£7.25
0
K0320.AJ
View product 		1/4-28 2.7 2.5 20 1 2 17 6 1 standard
£7.25
0
K0320.A1
View product 		10-32 2.4 2.3 18 0.8 1.5 17 5 0.8 standard
£7.25
0
K0320.A4
View product 		3/8-16 4 3 22 1.6 3 31 8 1.4 standard
£9.63
0
K0320.A3
View product 		5/16-18 3.5 3 22 1.2 2.5 29 7 1.4 standard
£8.33
0
K0320.A6
View product 		5/8-11 7.5 5 32 2.5 5 100 45 2.5 standard
£19.39
0
K0320.AE
View product 		8-32 1.5 1.5 15 0.6 1.3 16 5 0.6 standard
£7.31
0
K0320.AG
View product 		8-36 1.5 1.5 15 0.6 1.3 16 5 0.6 standard
£7.31
0

Showing products per page


List view Grid view
£
£

Dispatch by 07/12/25

Item Code: K0320.A5

Spring Plunger With Hex Socket And POM Thrust Pin. 1/2"-13 Thread. 28mm Long. 6mm Pin Diameter. Standard Spring Force. Stainless Steel.

£12.27  Excl VAT £14.72  Inc VAT

Price breaks available

Text

Qty

Dispatch by 07/12/25

Item Code: K0320.A2

Spring Plunger With Hex Socket And POM Thrust Pin. 1/4"-20 Thread. 20mm Long. 2.7mm Pin Diameter. Standard Spring Force. Stainless Steel.

£7.25  Excl VAT £8.70  Inc VAT

Price breaks available

Text

Qty

Dispatch by 07/12/25

Item Code: K0320.AJ

Spring Plunger With Hex Socket And POM Thrust Pin. 1/4"-28 Thread. 20mm Long. 2.7mm Pin Diameter. Standard Spring Force. Stainless Steel.

£7.25  Excl VAT £8.70  Inc VAT

Price breaks available

Text

Qty

Dispatch by 07/12/25

Item Code: K0320.A1

Spring Plunger With Hex Socket And POM Thrust Pin. 10-32" Thread. 18mm Long. 2.4mm Pin Diameter. Standard Spring Force. Stainless Steel.

£7.25  Excl VAT £8.70  Inc VAT

Price breaks available

Text

Qty

Dispatch by 07/12/25

Item Code: K0320.A4

Spring Plunger With Hex Socket And POM Thrust Pin. 3/8"-16 Thread. 22mm Long. 4mm Pin Diameter. Standard Spring Force. Stainless Steel.

£9.63  Excl VAT £11.56  Inc VAT

Price breaks available

Text

Qty

Dispatch by 07/12/25

Item Code: K0320.A3

Spring Plunger With Hex Socket And POM Thrust Pin. 5/16"-18 Thread. 22mm Long. 3.5mm Pin Diameter. Standard Spring Force. Stainless Steel.

£8.33  Excl VAT £10.00  Inc VAT

Price breaks available

Text

Qty

Dispatch by 07/12/25

Item Code: K0320.A6

Spring Plunger With Hex Socket And POM Thrust Pin. 5/8"-11 Thread. 32mm Long. 7.5mm Pin Diameter. Standard Spring Force. Stainless Steel.

£19.39  Excl VAT £23.27  Inc VAT

Price breaks available

Text

Qty

Dispatch by 07/12/25

Item Code: K0320.AE

Spring Plunger With Hex Socket And POM Thrust Pin. 8-32" Thread. 15mm Long. 1.5mm Pin Diameter. Standard Spring Force. Stainless Steel.

£7.31  Excl VAT £8.77  Inc VAT

Price breaks available

Text

Qty

Dispatch by 07/12/25

Item Code: K0320.AG

Spring Plunger With Hex Socket And POM Thrust Pin. 8-36" Thread. 15mm Long. 1.5mm Pin Diameter. Standard Spring Force. Stainless Steel.

£7.31  Excl VAT £8.77  Inc VAT

Price breaks available

Text

Qty
