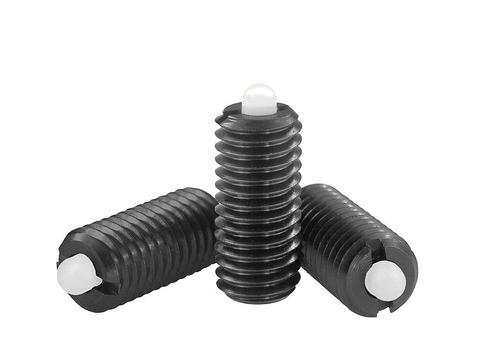

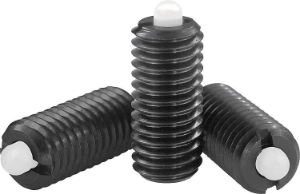

K0318 - Spring Plungers In Steel With Hex Socket And POM Thrust Pin

K0318 - Spring Plungers In Steel With Hex Socket And POM Thrust Pin

List view Grid view

Material:
Sleeve steel grade 5.8.
Thrust pin POM.
Spring grade D steel wire.

Version:
Black oxidised.

Drawing reference:
1) grub screw glued in

Spring Plunger. Thread M6. Length 20mm. Pin Diameter 2.7mm. Spring Force 3N. Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Sort by

	Assembly key g	D	D1	H	L	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	T1	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0318.03 View product Spring Plunger. M3 Thread. 10mm Long. 1mm Pin Diameter. 0.5N Spring Force. Steel.	-	M3	1	1,5	10	0,4	0,7	0,5	3	1	£2.90 £3.48		33 33 in stock

	Assembly key g	D	D1	H	L	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	T1	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0318.04 View product Spring Plunger. Thread M4. Length 15mm. Pin Diameter 1.5mm. Spring Force 5N. Steel.	14	M4	1,5	1,5	15	0,6	1,3	5	16	0,6	£2.25 £2.70		0 Dispatched 01/07/25

	Assembly key g	D	D1	H	L	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	T1	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0318.104 View product Spring Plunger. Thread M4. Length 15mm. Pin Diameter 1.5mm. Spring Force 2N. Steel.	14	M4	1,5	1,5	15	0,6	1,3	2	7	0,6	£2.39 £2.87		30 30 in stock

	Assembly key g	D	D1	H	L	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	T1	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0318.05 View product Spring Plunger. Thread M5. Length 18mm. Pin Diameter 2.4mm. Spring Force 6N. Steel.	14	M5	2,4	2,3	18	0,8	1,5	6	20	0,8	£2.17 £2.60		21 21 in stock

	Assembly key g	D	D1	H	L	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	T1	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0318.105 View product Spring Plunger. Thread M5. Length 18mm. Pin Diameter 2.4mm. Spring Force 3N. Steel.	14	M5	2,4	2,3	18	0,8	1,5	3	10	0,8	£2.44 £2.93		3 3 in stock

	Assembly key g	D	D1	H	L	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	T1	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0318.06 View product Spring Plunger. Thread M6. Length 20mm. Pin Diameter 2.7mm. Spring Force 7N. Steel.	14	M6	2,7	2,5	20	1	2	7	20	1	£2.25 £2.70		13 13 in stock

	Assembly key g	D	D1	H	L	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	T1	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0318.106 View product Spring Plunger. Thread M6. Length 20mm. Pin Diameter 2.7mm. Spring Force 3N. Steel.	14	M6	2,7	2,5	20	1	2	3	9	1	£2.54 £3.05		0 Dispatched 01/07/25

	Assembly key g	D	D1	H	L	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	T1	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0318.08 View product Spring Plunger. Thread M8. Length 22mm. Pin Diameter 3.5mm. Spring Force 9N. Steel.	33	M8	3,5	3	22	1,2	2,5	9	35	1,4	£2.66 £3.19		0 Dispatched 01/07/25

	Assembly key g	D	D1	H	L	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	T1	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0318.108 View product Spring Plunger. Thread M8. Length 22mm. Pin Diameter 3.5mm. Spring Force 4N. Steel.	33	M8	3,5	3	22	1,2	2,5	4	16	1,4	£2.79 £3.35		1 1 in stock

	Assembly key g	D	D1	H	L	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	T1	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0318.10 View product Spring Plunger. Thread M10. Length 22mm. Pin Diameter 4mm. Spring Force 9N. Steel.	50	M10	4	3	22	1,6	3	9	35	1,4	£3.17 £3.80		0 Dispatched 01/07/25

	Assembly key g	D	D1	H	L	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	T1	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0318.110 View product Spring Plunger. Thread M10. Length 22mm. Pin Diameter 4mm. Spring Force 4N. Steel.	50	M10	4	3	22	1,6	3	4	16	1,4	£3.34 £4.01		0 Dispatched 01/07/25

	Assembly key g	D	D1	H	L	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	T1	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0318.12 View product Spring Plunger. Thread M12. Length 28mm. Pin Diameter 6mm. Spring Force 12N. Steel.	70	M12	6	4	28	2	4	12	55	2	£3.99 £4.79		116 50+ in stock

	Assembly key g	D	D1	H	L	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	T1	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0318.112 View product Spring Plunger. Thread M12. Length 28mm. Pin Diameter 6mm. Spring Force 5N. Steel.	70	M12	6	4	28	2	4	5	27	2	£4.27 £5.12		8 8 in stock

	Assembly key g	D	D1	H	L	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	T1	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0318.16 View product Spring Plunger. Thread M16. Length 32mm. Pin Diameter 7.5mm. Spring Force 45N. Steel.	100	M16	7,5	5	32	2,5	5	45	100	2,5	£4.91 £5.89		0 Dispatched 01/07/25

	Assembly key g	D	D1	H	L	N	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	T1	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0318.116 View product Spring Plunger. Thread M16. Length 32mm. Pin Diameter 7.5mm. Spring Force 20N. Steel.	100	M16	7,5	5	32	2,5	5	20	45	2,5	£5.30 £6.36		8 8 in stock

Showing products per page

Sort by

33 in stock

Item Code: K0318.03

Spring Plunger. M3 Thread. 10mm Long. 1mm Pin Diameter. 0.5N Spring Force. Steel.

£2.90 Excl VAT £3.48 Inc VAT

Price breaks available

Text

Qty

Dispatch by 01/07/25

Item Code: K0318.04

Spring Plunger. Thread M4. Length 15mm. Pin Diameter 1.5mm. Spring Force 5N. Steel.

£2.25 Excl VAT £2.70 Inc VAT

Price breaks available

Text

Qty

30 in stock

Item Code: K0318.104

Spring Plunger. Thread M4. Length 15mm. Pin Diameter 1.5mm. Spring Force 2N. Steel.

£2.39 Excl VAT £2.87 Inc VAT

Price breaks available

Text

Qty

21 in stock

Item Code: K0318.05

Spring Plunger. Thread M5. Length 18mm. Pin Diameter 2.4mm. Spring Force 6N. Steel.

£2.17 Excl VAT £2.60 Inc VAT

Price breaks available

Text

Qty

3 in stock

Item Code: K0318.105

Spring Plunger. Thread M5. Length 18mm. Pin Diameter 2.4mm. Spring Force 3N. Steel.

£2.44 Excl VAT £2.93 Inc VAT

Price breaks available

Text

Qty

13 in stock

Item Code: K0318.06

Spring Plunger. Thread M6. Length 20mm. Pin Diameter 2.7mm. Spring Force 7N. Steel.

£2.25 Excl VAT £2.70 Inc VAT

Price breaks available

Text

Qty

Dispatch by 01/07/25

Item Code: K0318.106

Spring Plunger. Thread M6. Length 20mm. Pin Diameter 2.7mm. Spring Force 3N. Steel.

£2.54 Excl VAT £3.05 Inc VAT

Price breaks available

Text

Qty

Dispatch by 01/07/25

Item Code: K0318.08

Spring Plunger. Thread M8. Length 22mm. Pin Diameter 3.5mm. Spring Force 9N. Steel.

£2.66 Excl VAT £3.19 Inc VAT

Price breaks available

Text

Qty

1 in stock

Item Code: K0318.108

Spring Plunger. Thread M8. Length 22mm. Pin Diameter 3.5mm. Spring Force 4N. Steel.

£2.79 Excl VAT £3.35 Inc VAT

Price breaks available

Text

Qty

Dispatch by 01/07/25

Item Code: K0318.10

Spring Plunger. Thread M10. Length 22mm. Pin Diameter 4mm. Spring Force 9N. Steel.

£3.17 Excl VAT £3.80 Inc VAT

Price breaks available

Text

Qty

Dispatch by 01/07/25

Item Code: K0318.110

Spring Plunger. Thread M10. Length 22mm. Pin Diameter 4mm. Spring Force 4N. Steel.

£3.34 Excl VAT £4.01 Inc VAT

Price breaks available

Text

Qty

50+ in stock

Item Code: K0318.12

Spring Plunger. Thread M12. Length 28mm. Pin Diameter 6mm. Spring Force 12N. Steel.

£3.99 Excl VAT £4.79 Inc VAT

Price breaks available

Text

Qty

8 in stock

Item Code: K0318.112

Spring Plunger. Thread M12. Length 28mm. Pin Diameter 6mm. Spring Force 5N. Steel.

£4.27 Excl VAT £5.12 Inc VAT

Price breaks available

Text

Qty

Dispatch by 01/07/25

Item Code: K0318.16

Spring Plunger. Thread M16. Length 32mm. Pin Diameter 7.5mm. Spring Force 45N. Steel.

£4.91 Excl VAT £5.89 Inc VAT

Price breaks available

Text

Qty

8 in stock

Item Code: K0318.116

Spring Plunger. Thread M16. Length 32mm. Pin Diameter 7.5mm. Spring Force 20N. Steel.
