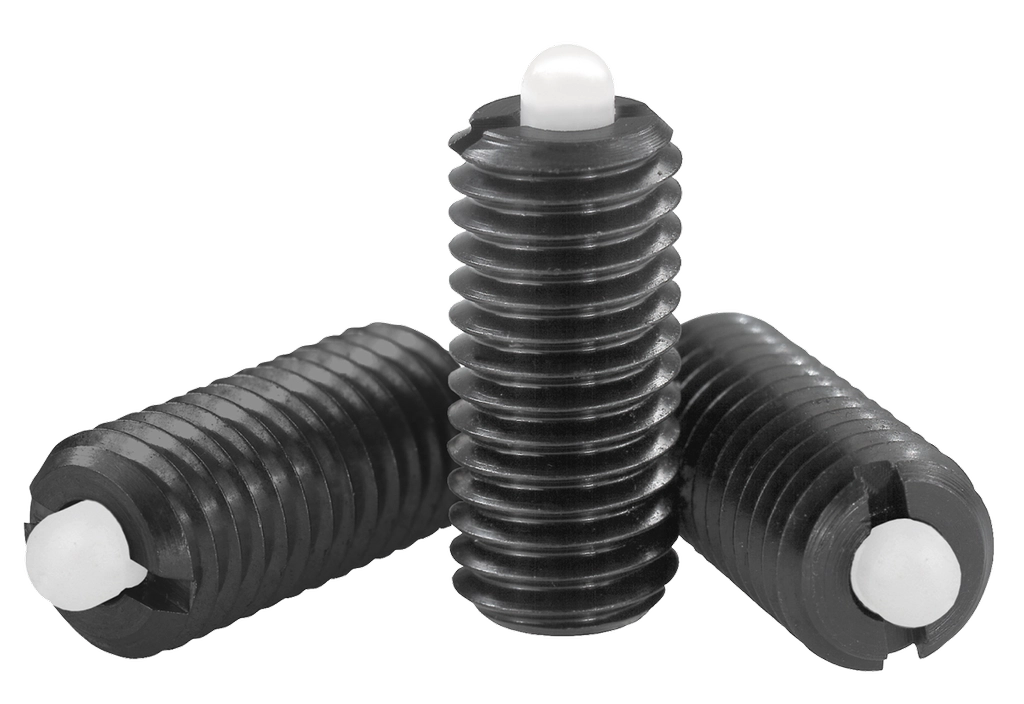

K0318 Inch - Spring Plungers With Hex Socket And POM Thrust Pin In Steel

K0318 Inch - Spring Plungers With Hex Socket And POM Thrust Pin In Steel

Material:
Body steel grade 5.8.
Ball steel.
Spring grade D steel wire.

Version:
Black oxidized.

Note:
For the inch series, dimension D is in inches, all other dimensions are in mm.

Drawing reference:
1) grub screw glued in


Spring Plunger

K0318 Inch - Spring Plungers With Hex Socket And POM Thrust Pin In Steel

Line drawing placeholder

Move drawing here

D D1 H L N S Spring force final pressure F2 approx. N Spring force initial pressure F1 approx. N T1 Spring Strength Price (Exc. Tax) Stock Qty basket

Filters
K0318.1A5
View product 		1/2-13 6 4 28 2 4 27 5 2 light
£6.16
0
K0318.A5
View product 		1/2-13 6 4 28 2 4 55 12 2 standard
£5.75
0
K0318.1A2
View product 		1/4-20 2.7 2.5 20 1 2 9 3 1 light
£3.67
0
K0318.A2
View product 		1/4-20 2.7 2.5 20 1 2 20 7 1 standard
£3.24
0
K0318.1AJ
View product 		1/4-28 2.7 2.5 20 1 2 9 3 1 light
£3.67
0
K0318.AJ
View product 		1/4-28 2.7 2.5 20 1 2 20 7 1 standard
£3.24
0
K0318.1A1
View product 		10-32 2.4 2.3 18 0.8 1.5 10 3 0.8 light
£3.53
0
K0318.A1
View product 		10-32 2.4 2.3 18 0.8 1.5 20 6 0.8 standard
£3.15
0
K0318.1A4
View product 		3/8-16 4 3 22 1.6 3 16 4 1.4 light
£4.82
0
K0318.A4
View product 		3/8-16 4 3 22 1.6 3 35 9 1.4 standard
£4.58
0
K0318.1A3
View product 		5/16-18 3.5 3 22 1.2 2.5 16 4 1.4 light
£4.05
0
K0318.A3
View product 		5/16-18 3.5 3 22 1.2 2.5 35 9 1.4 standard
£3.78
0
K0318.1A6
View product 		5/8-11 7.5 5 32 2.5 5 45 20 2.5 light
£7.65
0
K0318.A6
View product 		5/8-11 7.5 5 32 2.5 5 100 45 2.5 standard
£7.11
0
K0318.AD
View product 		6-32 1 1.5 10 0.4 0.7 3 0.5 1 standard
£4.17
0
K0318.1AE
View product 		8-32 1.5 1.5 15 0.6 1.3 7 2 0.6 light
£3.47
0
K0318.AE
View product 		8-32 1.5 1.5 15 0.6 1.3 16 5 0.6 standard
£3.24
0
K0318.1AG
View product 		8-36 1.5 1.5 15 0.6 1.3 7 2 0.6 light
£3.47
0
K0318.AG
View product 		8-36 1.5 1.5 15 0.6 1.3 16 5 0.6 standard
£3.24
0
