K0317 - Spring Plungers With Hexagon Socket And Thrust Pin In Steel

K0317 - Spring Plungers With Hexagon Socket And Thrust Pin In Steel

Material:
Sleeve steel grade 5.8.
Thrust pin steel.
Spring steel wire grade D.

Version:
Black oxidised.
Thrust pin hardened.

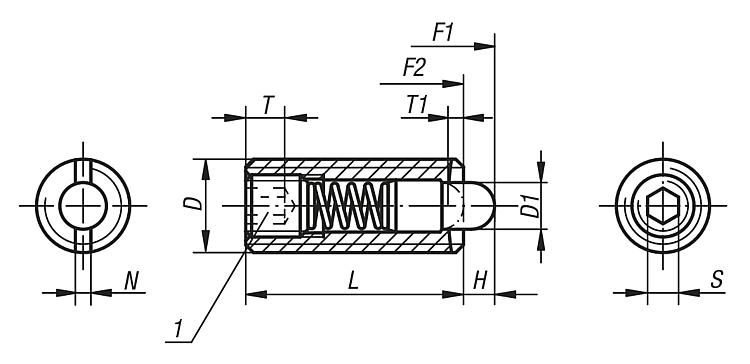

Drawing reference:
1) grub screw glued in

Spring Plunger. Thread M6. Length 20mm. Pin Diameter 2.7mm. Spring Force 3N. Steel.

K0317 - Spring Plungers With Hexagon Socket And Thrust Pin In Steel

Line drawing placeholder

Move drawing here

Assembly key g D D1 H L N S T1 Price (Exc. Tax) Stock Qty basket

Filters
K0317.03
View product 		11 M3 1 1,5 10 0,4 0,7 1
£2.61
0
K0317.04
View product 		14 M4 1,5 1,5 15 0,6 1,3 0,6
£1.44
4
K0317.104
View product 		14 M4 1,5 1,5 15 0,6 1,3 0,6
£2.10
12
K0317.05
View product 		14 M5 2,4 2,3 18 0,8 1,5 0,8
£1.95
0
K0317.105
View product 		14 M5 2,4 2,3 18 0,8 1,5 0,8
£1.52
33
K0317.205
View product 		14 M5 2,4 2,3 18 0,8 1,5 0,8
£1.49
20
K0317.06
View product 		14 M6 2,7 2,5 20 1 2 1
£1.42
53
K0317.106
View product 		14 M6 2,7 2,5 20 1 2 1
£1.54
45
K0317.206
View product 		14 M6 2,7 2,5 20 1 2 1
£2.20
0
K0317.08
View product 		33 M8 3,5 3 22 1,2 2,5 1,4
£1.67
7
K0317.108
View product 		33 M8 3,5 3 22 1,2 2,5 1,4
£1.83
15
K0317.208
View product 		33 M8 3,5 3 22 1,2 2,5 1,4
£1.84
2
K0317.10
View product 		50 M10 4 3 22 1,6 3 1,4
£1.87
4
K0317.110
View product 		50 M10 4 3 22 1,6 3 1,4
£2.87
0
K0317.210
View product 		50 M10 4 3 22 1,6 3 1,4
£2.04
26
K0317.12
View product 		70 M12 6 4 28 2 4 2
£3.44
0
K0317.112
View product 		70 M12 6 4 28 2 4 2
£3.71
0
K0317.212
View product 		70 M12 6 4 28 2 4 2
£3.76
111
K0317.16
View product 		100 M16 7,5 5 32 2,5 5 2,5
£4.39
16
K0317.116
View product 		100 M16 7,5 5 32 2,5 5 2,5
£4.75
0
K0317.216
View product 		100 M16 7,5 5 32 2,5 5 2,5
£3.39
24
K0317.20
View product 		-- M20 10 7 40 2,5 6 3
£3.96
49
K0317.220
View product 		-- M20 10 7 40 2,5 6 3
£6.19
0
K0317.24
View product 		-- M24 12 10 52 2,5 8 3
£6.98
7
K0317.224
View product 		-- M24 12 10 52 2,5 8 3
£11.02
0
