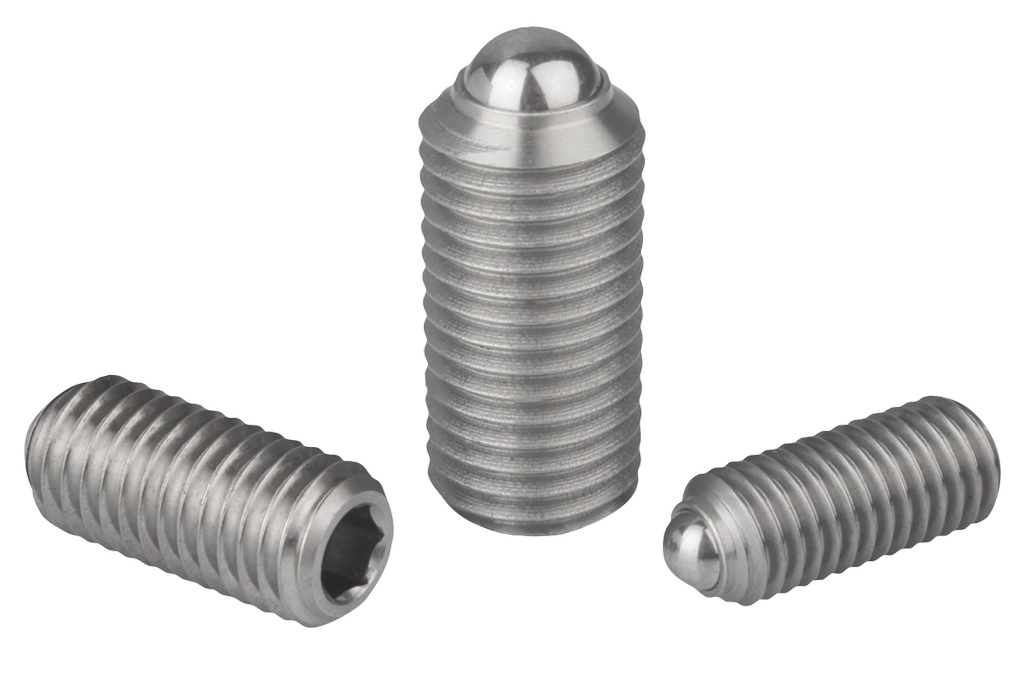

K0316 Inch - Spring Plungers With Hex Socket And Ball In Stainless Steel

K0316 Inch - Spring Plungers With Hex Socket And Ball In Stainless Steel

Material:
Body 1.4305 (AISI 303 equivalent).
Ball 1.4034 (AISI 420 equivalent).
Spring 1.4310 (AISI 301 equivalent).

Version:
Bright. Ball hardened.

Note:
For the inch series, dimension D and S are in inches, all other dimensions are in mm.

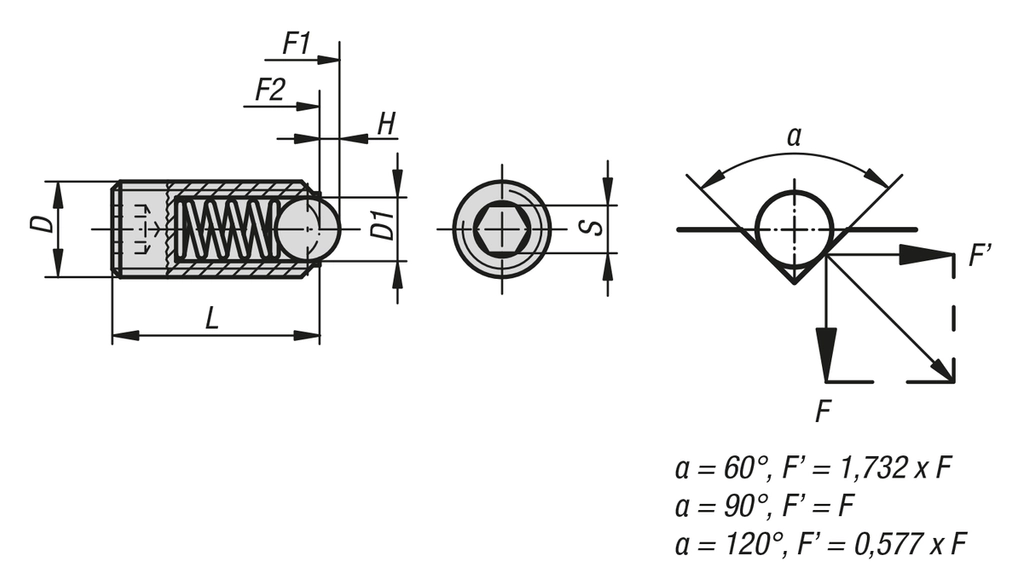

Spring Plunger

K0316 Inch - Spring Plungers With Hex Socket And Ball In Stainless Steel

Line drawing placeholder

Move drawing here

Spring Strength D D1 H L S Spring force final pressure approx. N Spring force initial pressure approx. N Price (Exc. Tax) Stock Qty basket

Filters
K0316.2A5
View product 		intensified 1/2-13 8 2.5 26 Jul-32 120 66
£7.11
0
K0316.A5
View product 		standard 1/2-13 8 2.5 26 Jul-32 55 30
£6.47
0
K0316.2A2
View product 		intensified 1/4-20 3.5 1 15 01-Aug 40 28
£4.25
0
K0316.A2
View product 		standard 1/4-20 3.5 1 15 01-Aug 13 9
£3.84
0
K0316.2AJ
View product 		intensified 1/4-28 3.5 1 15 01-Aug 40 28
£4.25
0
K0316.AJ
View product 		standard 1/4-28 3.5 1 15 01-Aug 13 9
£3.84
0
K0316.2A4
View product 		intensified 3/8-16 6 2 23 Mar-16 100 66
£5.31
0
K0316.A4
View product 		standard 3/8-16 6 2 23 Mar-16 35 20
£4.84
0
K0316.2A3
View product 		intensified 5/16-18 5 1.5 18 May-32 73 47
£4.60
0
K0316.A3
View product 		standard 5/16-18 5 1.5 18 May-32 30 15
£4.16
0
K0316.2A6
View product 		intensified 5/8-11 10 3.5 33 May-16 180 90
£11.22
0
K0316.A6
View product 		standard 5/8-11 10 3.5 33 May-16 125 65
£10.22
0

Showing products per page


List view Grid view
£
£

Item Code: K0316.2A5

Spring Plunger With Hex Socket And Ball. 1/2"-13 Thread. 26mm Long. 8mm Ball Diameter. Intensified Spring Force. Stainless Steel.

£7.11  Excl VAT £8.53  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0316.A5

Spring Plunger With Hex Socket And Ball. 1/2"-13 Thread. 26mm Long. 8mm Ball Diameter. Standard Spring Force. Stainless Steel.

£6.47  Excl VAT £7.76  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0316.2A2

Spring Plunger With Hex Socket And Ball. 1/4"-20 Thread. 15mm Long. 3.5mm Ball Diameter. Intensified Spring Force. Stainless Steel.

£4.25  Excl VAT £5.10  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0316.A2

Spring Plunger With Hex Socket And Ball. 1/4"-20 Thread. 15mm Long. 3.5mm Ball Diameter. Standard Spring Force. Stainless Steel.

£3.84  Excl VAT £4.61  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0316.2AJ

Spring Plunger With Hex Socket And Ball. 1/4"-28 Thread. 15mm Long. 3.5mm Ball Diameter. Intensified Spring Force. Stainless Steel.

£4.25  Excl VAT £5.10  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0316.AJ

Spring Plunger With Hex Socket And Ball. 1/4"-28 Thread. 15mm Long. 3.5mm Ball Diameter. Standard Spring Force. Stainless Steel.

£3.84  Excl VAT £4.61  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0316.2A4

Spring Plunger With Hex Socket And Ball. 3/8"-16 Thread. 23mm Long. 6mm Ball Diameter. Intensified Spring Force. Stainless Steel.

£5.31  Excl VAT £6.37  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0316.A4

Spring Plunger With Hex Socket And Ball. 3/8"-16 Thread. 23mm Long. 6mm Ball Diameter. Standard Spring Force. Stainless Steel.

£4.84  Excl VAT £5.81  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0316.2A3

Spring Plunger With Hex Socket And Ball. 5/16"-18 Thread. 18mm Long. 5mm Ball Diameter. Intensified Spring Force. Stainless Steel.

£4.60  Excl VAT £5.52  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0316.A3

Spring Plunger With Hex Socket And Ball. 5/16"-18 Thread. 18mm Long. 5mm Ball Diameter. Standard Spring Force. Stainless Steel.

£4.16  Excl VAT £4.99  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0316.2A6

Spring Plunger With Hex Socket And Ball. 5/8"-11 Thread. 33mm Long. 10mm Ball Diameter. Intensified Spring Force. Stainless Steel.

£11.22  Excl VAT £13.46  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0316.A6

Spring Plunger With Hex Socket And Ball. 5/8"-11 Thread. 33mm Long. 10mm Ball Diameter. Standard Spring Force. Stainless Steel.

£10.22  Excl VAT £12.26  Inc VAT

Price breaks available
