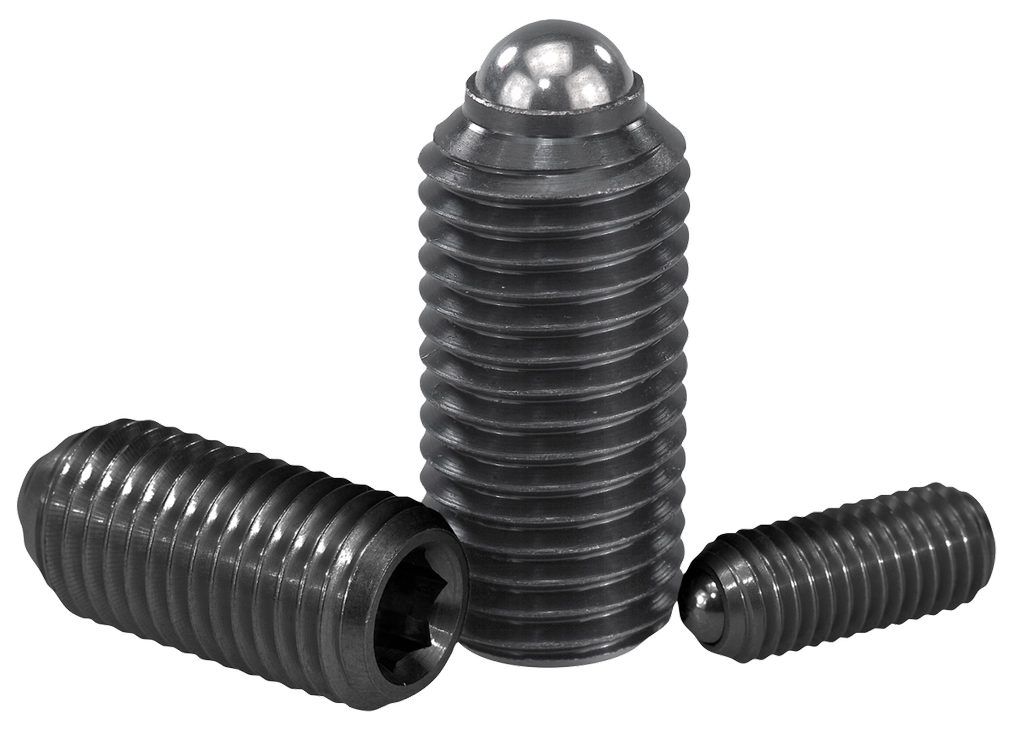

K0315 Inch - Spring Plungers With Hex Socket And Ball In Steel

K0315 Inch - Spring Plungers With Hex Socket And Ball In Steel

Material:
Body steel grade 5.8.
Ball steel.
Spring grade D steel wire.

Version:
Black oxidized. Ball hardened.

Note:
For the inch series, dimension D and S are in inches, all other dimensions are in mm.


Spring Plunger

K0315 Inch - Spring Plungers With Hex Socket And Ball In Steel

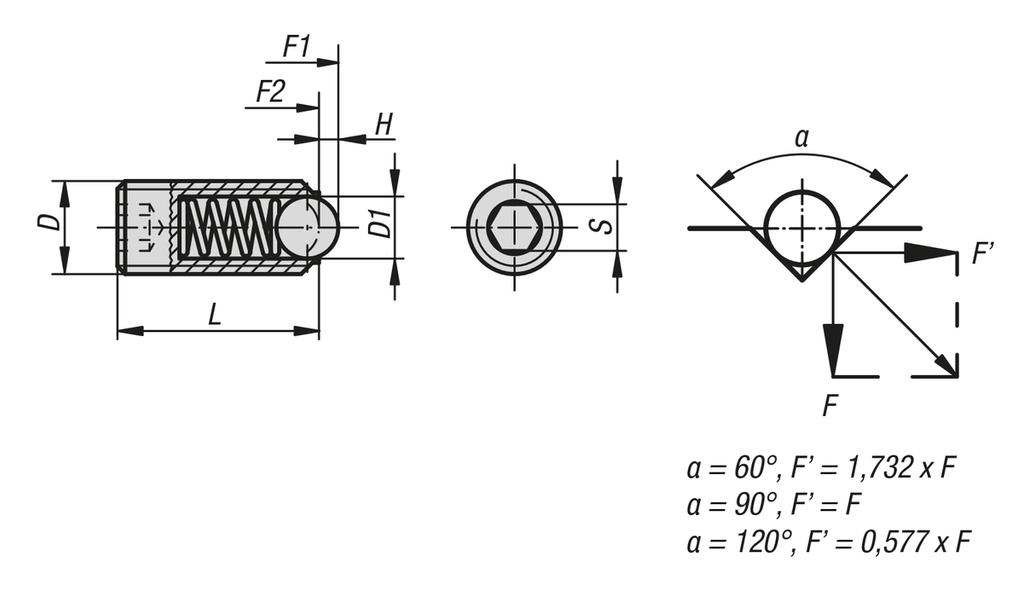

Line drawing placeholder

Move drawing here

Spring Strength D D1 H L S Spring force final pressure approx. N Spring force initial pressure approx. N Price (Exc. Tax) Stock Qty basket

Filters
K0315.2A5
View product 		intensified 1/2-13 8 2.5 26 Jul-32 120 66
£3.00
0
K0315.A5
View product 		standard 1/2-13 8 2.5 26 Jul-32 55 30
£2.70
0
K0315.2A2
View product 		intensified 1/4-20 3.5 1 15 01-Aug 40 28
£1.55
0
K0315.A2
View product 		standard 1/4-20 3.5 1 15 01-Aug 13 9
£1.44
0
K0315.2AJ
View product 		intensified 1/4-28 3.5 1 15 01-Aug 40 28
£1.55
0
K0315.AJ
View product 		standard 1/4-28 3.5 1 15 01-Aug 13 9
£1.44
0
K0315.2A4
View product 		intensified 3/8-16 6 2 23 Mar-16 100 66
£2.23
0
K0315.A4
View product 		standard 3/8-16 6 2 23 Mar-16 40 20
£2.03
0
K0315.2A3
View product 		intensified 5/16-18 5 1.5 18 May-32 73 47
£2.00
0
K0315.A3
View product 		standard 5/16-18 5 1.5 18 May-32 30 15
£1.84
0
K0315.2A6
View product 		intensified 5/8-11 10 3.5 33 May-16 180 90
£3.96
0
K0315.A6
View product 		standard 5/8-11 10 3.5 33 May-16 125 65
£3.61
0

Showing products per page


List view Grid view
£
£

Item Code: K0315.2A5

Spring Plunger With Hex Socket And Ball. 1/2"-13 Thread. 26mm Long. 8mm Ball Diameter. Intensified Spring Force. Steel.

£3.00  Excl VAT £3.60  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0315.A5

Spring Plunger With Hex Socket And Ball. 1/2"-13 Thread. 26mm Long. 8mm Ball Diameter. Standard Spring Force. Steel.

£2.70  Excl VAT £3.24  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0315.2A2

Spring Plunger With Hex Socket And Ball. 1/4"-20 Thread. 15mm Long. 3.5mm Ball Diameter. Intensified Spring Force. Steel.

£1.55  Excl VAT £1.86  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0315.A2

Spring Plunger With Hex Socket And Ball. 1/4"-20 Thread. 15mm Long. 3.5mm Ball Diameter. Standard Spring Force. Steel.

£1.44  Excl VAT £1.73  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0315.2AJ

Spring Plunger With Hex Socket And Ball. 1/4"-28 Thread. 15mm Long. 3.5mm Ball Diameter. Intensified Spring Force. Steel.

£1.55  Excl VAT £1.86  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0315.AJ

Spring Plunger With Hex Socket And Ball. 1/4"-28 Thread. 15mm Long. 3.5mm Ball Diameter. Standard Spring Force. Steel.

£1.44  Excl VAT £1.73  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0315.2A4

Spring Plunger With Hex Socket And Ball. 3/8"-16 Thread. 23mm Long. 6mm Ball Diameter. Intensified Spring Force. Steel.

£2.23  Excl VAT £2.68  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0315.A4

Spring Plunger With Hex Socket And Ball. 3/8"-16 Thread. 23mm Long. 6mm Ball Diameter. Standard Spring Force. Steel.

£2.03  Excl VAT £2.44  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0315.2A3

Spring Plunger With Hex Socket And Ball. 5/16"-18 Thread. 18mm Long. 5mm Ball Diameter. Intensified Spring Force. Steel.

£2.00  Excl VAT £2.40  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0315.A3

Spring Plunger With Hex Socket And Ball. 5/16"-18 Thread. 18mm Long. 5mm Ball Diameter. Standard Spring Force. Steel.

£1.84  Excl VAT £2.21  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0315.2A6

Spring Plunger With Hex Socket And Ball. 5/8"-11 Thread. 33mm Long. 10mm Ball Diameter. Intensified Spring Force. Steel.

£3.96  Excl VAT £4.75  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Item Code: K0315.A6

Spring Plunger With Hex Socket And Ball. 5/8"-11 Thread. 33mm Long. 10mm Ball Diameter. Standard Spring Force. Steel.

£3.61  Excl VAT £4.33  Inc VAT

Price breaks available

Dispatch by 04/05/26

Text

Qty

Showing products per page

Spring Plunger With Hex Socket And Ball. 1/2"-13 Thread. 26mm Long. 8mm Ball Diameter. Intensified Spring Force. Steel.

Spring Plunger With Hex Socket And Ball. 1/2"-13 Thread. 26mm Long. 8mm Ball Diameter. Intensified Spring Force. Steel.

Dispatch by 04/05/26

Item Code: K0315.2A5

£3.00  Excl VAT £3.60  Inc VAT

Price breaks available

Text

Qty

Spring Plunger With Hex Socket And Ball. 1/2"-13 Thread. 26mm Long. 8mm Ball Diameter. Standard Spring Force. Steel.

Spring Plunger With Hex Socket And Ball. 1/2"-13 Thread. 26mm Long. 8mm Ball Diameter. Standard Spring Force. Steel.

Dispatch by 04/05/26

Item Code: K0315.A5

£2.70  Excl VAT £3.24  Inc VAT

Price breaks available

Text

Qty

Spring Plunger With Hex Socket And Ball. 1/4"-20 Thread. 15mm Long. 3.5mm Ball Diameter. Intensified Spring Force. Steel.

Spring Plunger With Hex Socket And Ball. 1/4"-20 Thread. 15mm Long. 3.5mm Ball Diameter. Intensified Spring Force. Steel.

Dispatch by 04/05/26

Item Code: K0315.2A2

£1.55  Excl VAT £1.86  Inc VAT

Price breaks available

Text

Qty

Spring Plunger With Hex Socket And Ball. 1/4"-20 Thread. 15mm Long. 3.5mm Ball Diameter. Standard Spring Force. Steel.

Spring Plunger With Hex Socket And Ball. 1/4"-20 Thread. 15mm Long. 3.5mm Ball Diameter. Standard Spring Force. Steel.

Dispatch by 04/05/26

Item Code: K0315.A2

£1.44  Excl VAT £1.73  Inc VAT

Price breaks available

Text

Qty

Spring Plunger With Hex Socket And Ball. 1/4"-28 Thread. 15mm Long. 3.5mm Ball Diameter. Intensified Spring Force. Steel.

Spring Plunger With Hex Socket And Ball. 1/4"-28 Thread. 15mm Long. 3.5mm Ball Diameter. Intensified Spring Force. Steel.

Dispatch by 04/05/26

Item Code: K0315.2AJ

£1.55  Excl VAT £1.86  Inc VAT

Price breaks available

Text

Qty

Spring Plunger With Hex Socket And Ball. 1/4"-28 Thread. 15mm Long. 3.5mm Ball Diameter. Standard Spring Force. Steel.

Spring Plunger With Hex Socket And Ball. 1/4"-28 Thread. 15mm Long. 3.5mm Ball Diameter. Standard Spring Force. Steel.

Dispatch by 04/05/26

Item Code: K0315.AJ

£1.44  Excl VAT £1.73  Inc VAT

Price breaks available

Text

Qty

Spring Plunger With Hex Socket And Ball. 3/8"-16 Thread. 23mm Long. 6mm Ball Diameter. Intensified Spring Force. Steel.

Spring Plunger With Hex Socket And Ball. 3/8"-16 Thread. 23mm Long. 6mm Ball Diameter. Intensified Spring Force. Steel.

Dispatch by 04/05/26

Item Code: K0315.2A4

£2.23  Excl VAT £2.68  Inc VAT

Price breaks available

Text

Qty

Spring Plunger With Hex Socket And Ball. 3/8"-16 Thread. 23mm Long. 6mm Ball Diameter. Standard Spring Force. Steel.

Spring Plunger With Hex Socket And Ball. 3/8"-16 Thread. 23mm Long. 6mm Ball Diameter. Standard Spring Force. Steel.

Dispatch by 04/05/26

Item Code: K0315.A4

£2.03  Excl VAT £2.44  Inc VAT

Price breaks available

Text

Qty

Spring Plunger With Hex Socket And Ball. 5/16"-18 Thread. 18mm Long. 5mm Ball Diameter. Intensified Spring Force. Steel.

Spring Plunger With Hex Socket And Ball. 5/16"-18 Thread. 18mm Long. 5mm Ball Diameter. Intensified Spring Force. Steel.

Dispatch by 04/05/26

Item Code: K0315.2A3

£2.00  Excl VAT £2.40  Inc VAT

Price breaks available

Text

Qty

Spring Plunger With Hex Socket And Ball. 5/16"-18 Thread. 18mm Long. 5mm Ball Diameter. Standard Spring Force. Steel.

Spring Plunger With Hex Socket And Ball. 5/16"-18 Thread. 18mm Long. 5mm Ball Diameter. Standard Spring Force. Steel.

Dispatch by 04/05/26

Item Code: K0315.A3

£1.84  Excl VAT £2.21  Inc VAT

Price breaks available

Text

Qty

Spring Plunger With Hex Socket And Ball. 5/8"-11 Thread. 33mm Long. 10mm Ball Diameter. Intensified Spring Force. Steel.

Spring Plunger With Hex Socket And Ball. 5/8"-11 Thread. 33mm Long. 10mm Ball Diameter. Intensified Spring Force. Steel.

Dispatch by 04/05/26

Item Code: K0315.2A6

£3.96  Excl VAT £4.75  Inc VAT

Price breaks available

Text

Qty

Spring Plunger With Hex Socket And Ball. 5/8"-11 Thread. 33mm Long. 10mm Ball Diameter. Standard Spring Force. Steel.

Spring Plunger With Hex Socket And Ball. 5/8"-11 Thread. 33mm Long. 10mm Ball Diameter. Standard Spring Force. Steel.

Dispatch by 04/05/26

Item Code: K0315.A6

£3.61  Excl VAT £4.33  Inc VAT

Price breaks available

Text

Qty

Showing products per page

{
