Back to K0314 - Spring Plungers With Slot And Thrust Pin In Stainless Steel

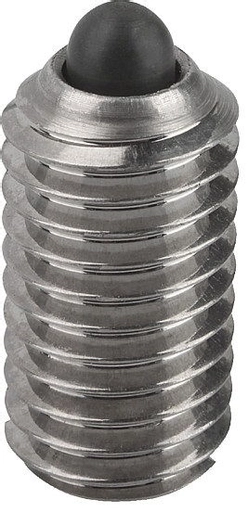

Spring Plunger. Thread M6. Length 14mm. Pin Diameter 2.7mm. Spring Force 7N. Stainless Steel.

Item Code: K0314.06

Spring Plunger. Thread M6. Length 14mm. Pin Diameter 2.7mm. Spring Force 7N. Stainless Steel.

Item Code: K0314.06

Material:
Sleeve 1.4305.
Pressure pin 1.4034.
Spring 1.4310. Surface finish:
Natural finish.
Pressure pin hardened.

Quick Links

12 in stock

D: M6

L: 14

D1: 2,7

H: 2

N: 1

Spring strength: standard

Spring force initial pressure F1 approx. N: 7

Spring force final pressure F2 approx. N: 20

£2.56 ea. Excl VAT £3.07 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
50 +	£2.20	14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Material:
Sleeve 1.4305.
Pressure pin 1.4034.
Spring 1.4310. Surface finish:
Natural finish.
Pressure pin hardened.

D	M6
L	14
D1	2,7
H	2
N	1
Spring strength	standard
Spring force initial pressure F1 approx. N	7
Spring force final pressure F2 approx. N	20
