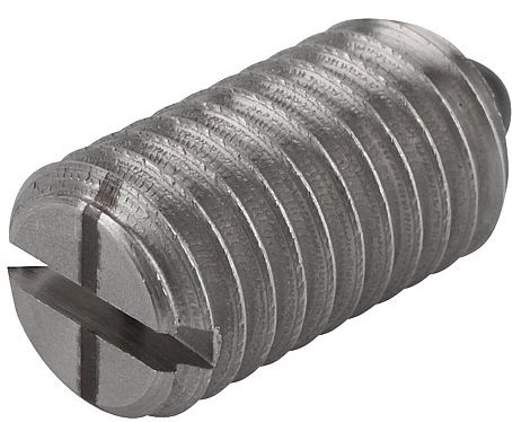

Spring Plunger. Thread M4. Length 9mm. Pin Diameter 1.8mm. Spring Force 3N. Stainless Steel.

Item Code: K0314.104

Spring Plunger. Thread M4. Length 9mm. Pin Diameter 1.8mm. Spring Force 3N. Stainless Steel.

Item Code: K0314.104

Material:
Sleeve 1.4305.
Pressure pin 1.4034.
Spring 1.4310. Surface finish:
Natural finish.
Pressure pin hardened.

Quick Links

Dispatch by 08/07/25

D: M4

D1: 1,8

H: 1,5

L: 9

N: 0,6

Spring force initial pressure F1 approx. N: 3

Spring force final pressure F2 approx. N: 10

Spring strength: light

£2.97 ea. Excl VAT £3.56 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
50 +	£2.55	14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Material:
Sleeve 1.4305.
Pressure pin 1.4034.
Spring 1.4310. Surface finish:
Natural finish.
Pressure pin hardened.

D	M4
D1	1,8
H	1,5
L	9
N	0,6
Spring force initial pressure F1 approx. N	3
Spring force final pressure F2 approx. N	10
Spring strength	light
