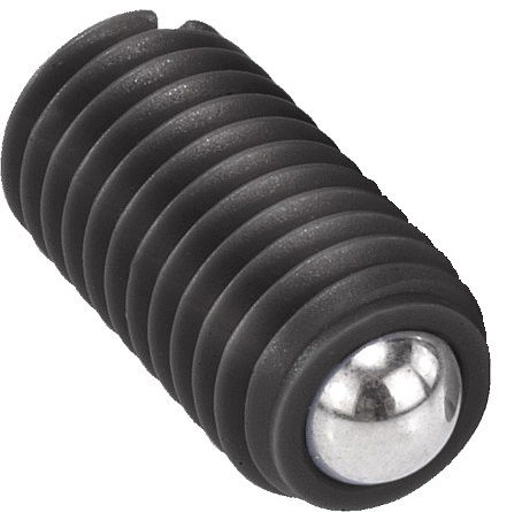

SPRING PLUNGER SPRING FORCE D=M06 L=14, PLASTIC, COMP:BALL STAINLESS STEEL, PU=25

Item Code: K0312.06

SPRING PLUNGER SPRING FORCE D=M06 L=14, PLASTIC, COMP:BALL STAINLESS STEEL, PU=25

Item Code: K0312.06

SPRING PLUNGER SPRING FORCE D=M06 L=14, PLASTIC, COMP:BALL STAINLESS STEEL, PU=25

Material, surface finish:
Sleeve in plastic.
Ball in stainless steel 1.4034, hardened.
Spring 1.4310. Note:
Spring plungers are used for indexing and positioning. They can also be used as ejectors.

Quick Links

17 in stock

D: M6

L: 14

D1: 3,5

H: 1

N: 1

Spring force initial pressure F1 approx. N: 9

Spring force final pressure F2 approx. N: 13

£0.75 ea. Excl VAT £0.90 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
50 +	£0.67	11%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Material, surface finish:
Sleeve in plastic.
Ball in stainless steel 1.4034, hardened.
Spring 1.4310. Note:
Spring plungers are used for indexing and positioning. They can also be used as ejectors.

Product Dimensions

D	M6
L	14
D1	3,5
H	1
N	1
Spring force initial pressure F1 approx. N	9
Spring force final pressure F2 approx. N	13

Downloads

STP

Specifications

Thread Size / Body Diameter	M6
Length	14mm
Body Material	Plastic
Ball / Pin Material	Stainless Steel
Thread Lock	No

SPRING PLUNGER SPRING FORCE D=M06 L=14, PLASTIC, COMP:BALL STAINLESS STEEL, PU=25

SPRING PLUNGER SPRING FORCE D=M06 L=14, PLASTIC, COMP:BALL STAINLESS STEEL, PU=25
