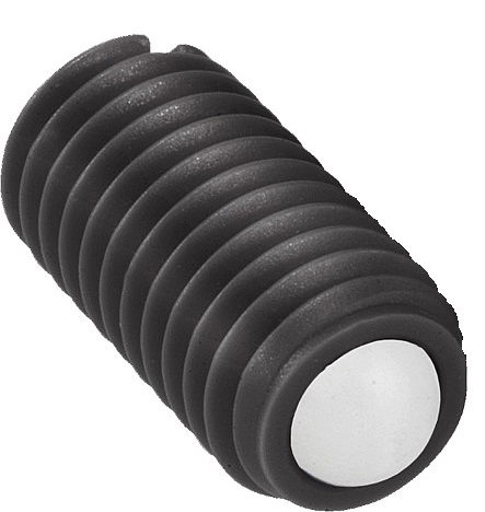

SPRING PLUNGER SPRING FORCE D=M08 L=16, PLASTIC, COMP:BALL POM, PU=25

Item Code: K0311.08

SPRING PLUNGER SPRING FORCE D=M08 L=16, PLASTIC, COMP:BALL POM, PU=25

Item Code: K0311.08

SPRING PLUNGER SPRING FORCE D=M08 L=16, PLASTIC, COMP:BALL POM, PU=25

Material, surface finish:
Sleeve in plastic.
Ball in white Delrin.
Spring 1.4310. Note:
Spring plungers are used for indexing and positioning. They can also be used as ejectors.

Quick Links

6 in stock

D: M8

D1: 5

H: 1,5

L: 16

N: 1,2

Spring force initial pressure F1 approx. N: 15

Spring force final pressure F2 approx. N: 30

£1.27 ea. Excl VAT £1.52 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
50 +	£1.09	14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Material, surface finish:
Sleeve in plastic.
Ball in white Delrin.
Spring 1.4310. Note:
Spring plungers are used for indexing and positioning. They can also be used as ejectors.

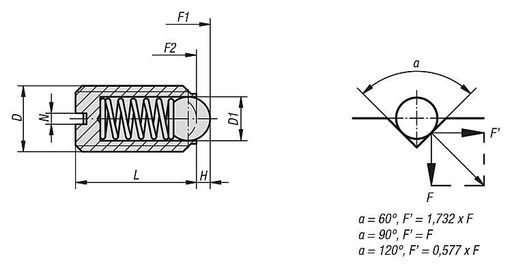

Product Dimensions

D	M8
D1	5
H	1,5
L	16
N	1,2
Spring force initial pressure F1 approx. N	15
Spring force final pressure F2 approx. N	30

Downloads

STP

Specifications

Thread Size / Body Diameter	M8
Length	16mm
Body Material	Plastic
Ball / Pin Material	POM
Thread Lock	No

SPRING PLUNGER SPRING FORCE D=M08 L=16, PLASTIC, COMP:BALL POM, PU=25

SPRING PLUNGER SPRING FORCE D=M08 L=16, PLASTIC, COMP:BALL POM, PU=25
