Back to K0309 - Spring Plungers With Slot And Ball In Steel
Spring Plunger. M8 Thread. 16mm Long. 5mm Ball Diameter. 47N Spring Force. Steel.

Item Code: K0309.208

Spring Plunger. M8 Thread. 16mm Long. 5mm Ball Diameter. 47N Spring Force. Steel.

Item Code: K0309.208

Material:
Sleeve in steel quality class 5.8.
Ball in steel.
Spring in spring steel D. Surface finish:
Black oxide finish.
Ball hardened.

Quick Links

49 in stock

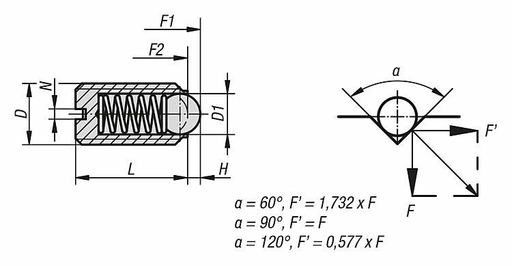

D: M8

D1: 5

H: 1,5

L: 16

N: 1,2

Spring force initial pressure F1 approx. N: 47

Spring force final pressure F2 approx. N: 73

Spring strength: intensified

£1.19 ea. Excl VAT £1.43 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
50 +	£1.02	14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

D	M8
D1	5
H	1,5
L	16
N	1,2
Spring force initial pressure F1 approx. N	47
Spring force final pressure F2 approx. N	73
Spring strength	intensified
