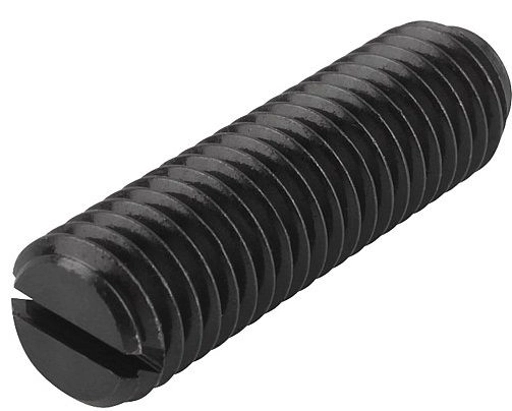

Spring Plunger. M4 Thread. 16mm Long. 2.5mm Ball Diameter. 4N Spring Force. Steel.

Item Code: K0309.404

Spring Plunger. M4 Thread. 16mm Long. 2.5mm Ball Diameter. 4N Spring Force. Steel.

Item Code: K0309.404

Material:
Sleeve in steel quality class 5.8.
Ball in steel.
Spring in spring steel D. Surface finish:
Black oxide finish.
Ball hardened.

Quick Links

50+ in stock

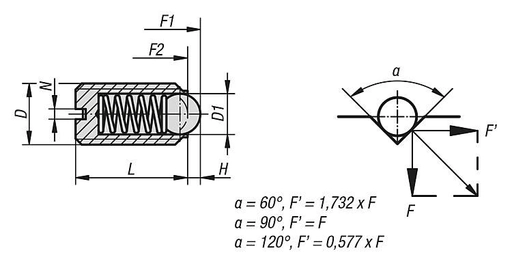

D: M4

L: 16

D1: 2,5

H: 0,8

N: 0,6

Spring strength: standard

Spring force initial pressure F1 approx. N: 4

Spring force final pressure F2 approx. N: 10

£1.06 ea. Excl VAT £1.27 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
50 +	£0.91	14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Material:
Sleeve in steel quality class 5.8.
Ball in steel.
Spring in spring steel D. Surface finish:
Black oxide finish.
Ball hardened.

D	M4
L	16
D1	2,5
H	0,8
N	0,6
Spring strength	standard
Spring force initial pressure F1 approx. N	4
Spring force final pressure F2 approx. N	10
