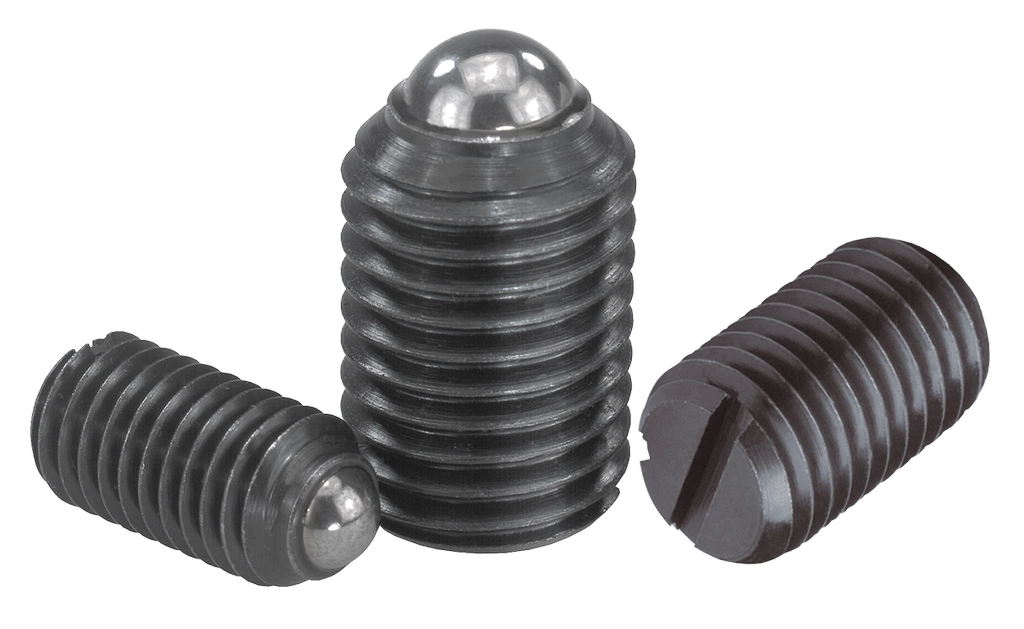

K0309 Inch - Spring Plungers With Slot And Ball In Steel

K0309 Inch - Spring Plungers With Slot And Ball In Steel

Material:
Body steel grade 5.8.
Ball steel.
Spring grade D steel wire.

Version:
Black oxidized. Ball hardened.

Note:
For the inch series, dimension D is in inches, all other dimensions are in mm.

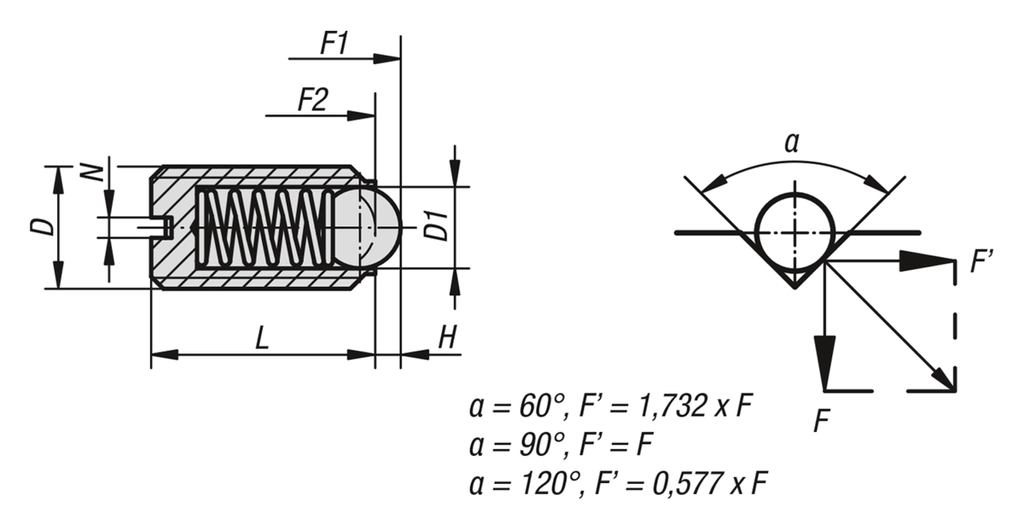

Spring Plunger

K0309 Inch - Spring Plungers With Slot And Ball In Steel

Line drawing placeholder

Move drawing here

D D1 H L N Spring force final pressure F2 approx. N Spring force initial pressure F1 approx. N Spring Strength Price (Exc. Tax) Stock Qty basket

Filters
K0309.2A5
View product 		1/2-13 8 2.5 22 2 120 66 intensified
£2.78
0
K0309.A5
View product 		1/2-13 8 2.5 22 2 55 30 standard
£2.50
0
K0309.2A2
View product 		1/4-20 3.5 1 14 1 40 28 intensified
£1.29
0
K0309.A2
View product 		1/4-20 3.5 1 14 1 13 9 standard
£1.10
0
K0309.2AJ
View product 		1/4-28 3.5 1 14 1 40 28 intensified
£1.29
0
K0309.AJ
View product 		1/4-28 3.5 1 14 1 13 9 standard
£1.10
0
K0309.2A1
View product 		10-32 3 0.9 12 0.8 30 19 intensified
£1.29
0
K0309.A1
View product 		10-32 3 0.9 12 0.8 11 6 standard
£1.10
0
K0309.2A4
View product 		3/8-16 6 2 19 1.6 100 66 intensified
£1.80
0
K0309.A4
View product 		3/8-16 6 2 19 1.6 40 20 standard
£1.62
0
K0309.2A3
View product 		5/16-18 5 1.5 16 1.2 73 47 intensified
£1.72
0
K0309.A3
View product 		5/16-18 5 1.5 16 1.2 30 15 standard
£1.55
0
K0309.2A6
View product 		5/8-11 10 3.5 24 2.5 180 90 intensified
£3.70
0
K0309.A6
View product 		5/8-11 10 3.5 24 2.5 125 65 standard
£3.38
0
K0309.AD
View product 		6-32 1.5 0.4 7 0.4 3 1.5 standard
£1.53
0
K0309.AE
View product 		8-32 2.5 0.8 9 0.6 10 4 standard
£1.10
0
K0309.AG
View product 		8-36 2.5 0.8 9 0.6 10 4 standard
£1.10
0
