Positioning Foot. Form B. 22mm Square Face. M12 Thread. Hardened Steel.

Item Code: K0298.210

Positioning Foot. Form B. 22mm Square Face. M12 Thread. Hardened Steel.

Item Code: K0298.210

Positioning Foot. Form B. 22mm Square Face. M12 Thread. Hardened Steel.

Material:
Free-cutting steel. Surface finish:
Case-hardened with black oxide finish. Note:
Positioning feet are used as supports, stops and plungers for jigs and fixtures, as well as in general machine and appliance construction.

Quick Links

6 in stock

B: 14

E: 25.2

Form: B

G: M12

H: 10

L2: 24

Mount surface / support surface: Round

Seat form: hexagon

SW: 22

Tightening torque max. Nm: 60

Was £17.16 Save 50% £8.58 ea. Excl VAT Was £20.59 Save 50% £10.30 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£7.04	18%

Next Working Day Delivery on All In-Stock Products

modal placeholder

Quick Links

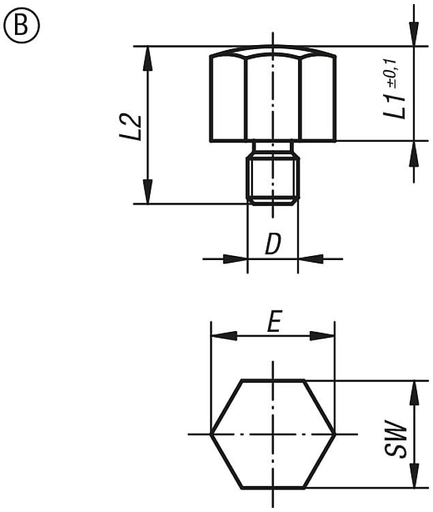

Product Dimensions

B	14
E	25.2
Form	B
G	M12
H	10
L2	24
Mount surface / support surface	Round
Seat form	hexagon
SW	22
Tightening torque max. Nm	60

CAD Download
