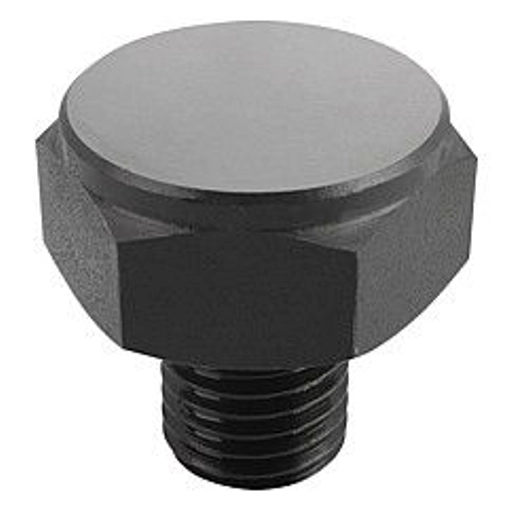

Positioning Foot. Form A. 22mm Square Face. M12 Thread. Hardened Steel.

Item Code: K0298.110

Positioning Foot. Form A. 22mm Square Face. M12 Thread. Hardened Steel.

Item Code: K0298.110

Positioning Foot. Form A. 22mm Square Face. M12 Thread. Hardened Steel.

Material:
Free-cutting steel. Surface finish:
Case-hardened with black oxide finish. Note:
Positioning feet are used as supports, stops and plungers for jigs and fixtures, as well as in general machine and appliance construction.

Quick Links

18 in stock

B: 14

D1: 22

E: 25,2

Form: A

G: M12

H: 10

L2: 24

Mount surface / support surface: plane

Seat form: Round

SW: 22

Tightening torque max. Nm: 60

£20.52 ea. Excl VAT £24.62 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£16.83	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

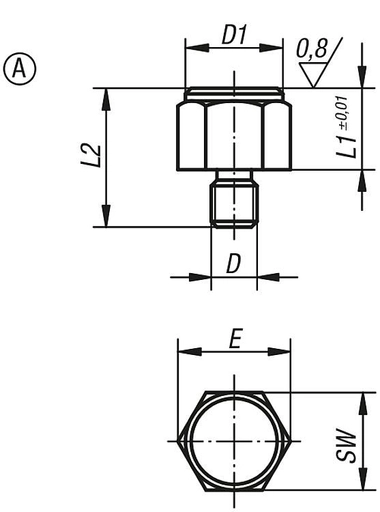

Product Dimensions

B	14
D1	22
E	25,2
Form	A
G	M12
H	10
L2	24
Mount surface / support surface	plane
Seat form	Round
SW	22
Tightening torque max. Nm	60
