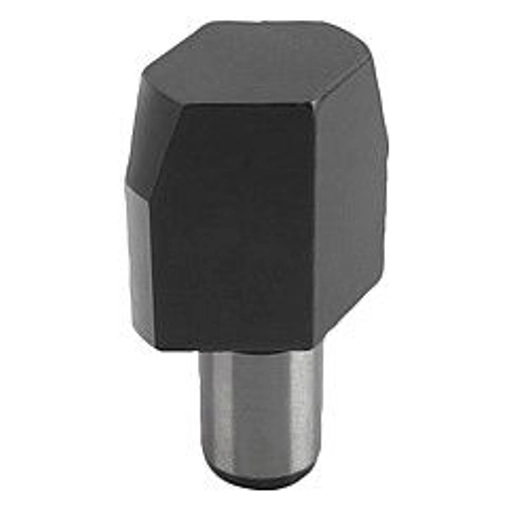

Locating Pin. Flattened. 16mm Pad Diameter. 22mm High. Hardened Steel.

Item Code: K0293.516

Locating Pin. Flattened. 16mm Pad Diameter. 22mm High. Hardened Steel.

Item Code: K0293.516

Locating Pin. Flattened. 16mm Pad Diameter. 22mm High. Hardened Steel.

Material:
Tool steel. Surface finish:
Hardened and ground.
Support surface without centring. Note:
Thrust bolts form A serve as a mount for workpieces and fixtures.
Straight bolts form B serve to position workpieces and fixture parts in holes with locating dimensions.
The flattened form C can be used to bridge tolerances in hole spacing or to secure the part to be positioned in one direction only.
Form A and B can also be used as hardened stop and as foot for fixtures.
For similar bolts see K0352, K0353, K0354 and K0355.

Quick Links

Dispatch by 17/02/26

B: 3.5

D1: 16

D2: 8

DIN: DIN 6321

Form: C

H: 22

H1: 12

H2: 2

H3: 8

T: 0.04

£18.75 ea. Excl VAT £22.50 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.
