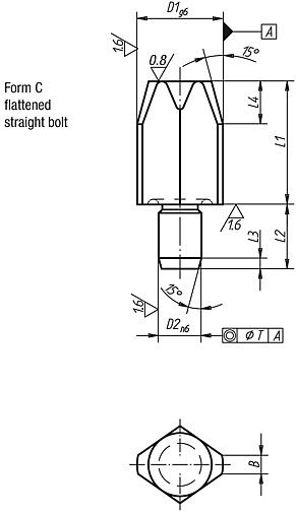

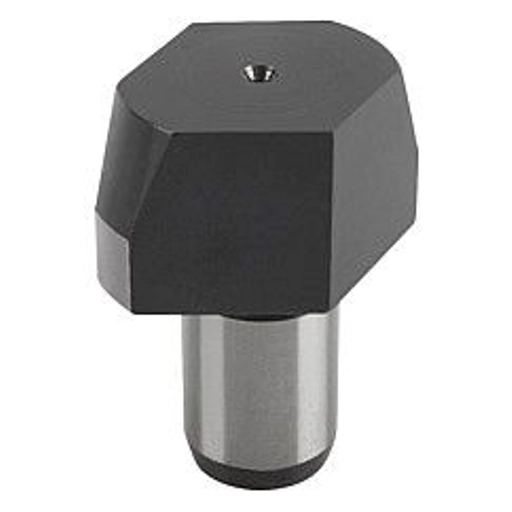

Locating Pin. Flattened. 10mm Pad Diameter. 10mm High. Hardened Steel.

Item Code: K0293.410

Locating Pin. Flattened. 10mm Pad Diameter. 10mm High. Hardened Steel.

Item Code: K0293.410

Locating Pin. Flattened. 10mm Pad Diameter. 10mm High. Hardened Steel.

Material:
Tool steel. Surface finish:
Hardened and ground.
Support surface without centring. Note:
Thrust bolts form A serve as a mount for workpieces and fixtures.
Straight bolts form B serve to position workpieces and fixture parts in holes with locating dimensions.
The flattened form C can be used to bridge tolerances in hole spacing or to secure the part to be positioned in one direction only.
Form A and B can also be used as hardened stop and as foot for fixtures.
For similar bolts see K0352, K0353, K0354 and K0355.

Quick Links

Dispatch by 15/09/25

B: 2,5

D1: 10

D2: 6

DIN: DIN 6321

Form: C

H: 10

H1: 9

H2: 1,6

H3: 6

T: 0,02

£12.74 ea. Excl VAT £15.29 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.
