Locating Pin. Cylindrival. 8mm Pad Diameter. 10mm High. Hardened Steel.

Item Code: K0293.208

Locating Pin. Cylindrival. 8mm Pad Diameter. 10mm High. Hardened Steel.

Item Code: K0293.208

Locating Pin. Cylindrival. 8mm Pad Diameter. 10mm High. Hardened Steel.

Material:
Tool steel. Surface finish:
Hardened and ground.
Support surface without centring. Note:
Thrust bolts form A serve as a mount for workpieces and fixtures.
Straight bolts form B serve to position workpieces and fixture parts in holes with locating dimensions.
The flattened form C can be used to bridge tolerances in hole spacing or to secure the part to be positioned in one direction only.
Form A and B can also be used as hardened stop and as foot for fixtures.
For similar bolts see K0352, K0353, K0354 and K0355.

Quick Links

Dispatch by 09/06/25

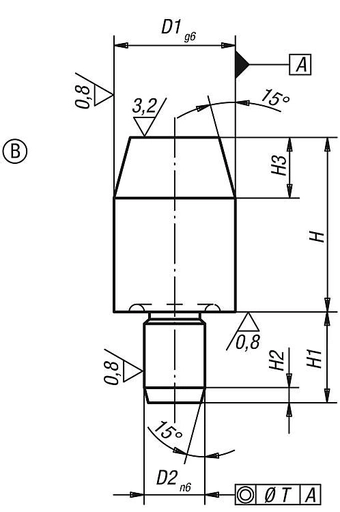

Form: B

D1: 8

H: 10

H1: 9

H2: 1,6

T: 0,02

D2: 6

H3: 6

DIN: DIN 6321

£9.13 ea. Excl VAT £10.96 ea. Inc VAT
