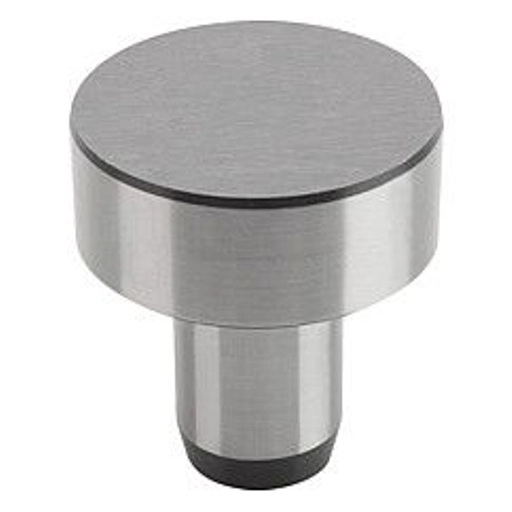

Rest Pad Without Bore. 6mm Pad Diameter. 5mm High. Hardened Steel.

Item Code: K0293.106

Rest Pad Without Bore. 6mm Pad Diameter. 5mm High. Hardened Steel.

Item Code: K0293.106

Rest Pad Without Bore. 6mm Pad Diameter. 5mm High. Hardened Steel.

Material:
Tool steel. Surface finish:
Hardened and ground.
Support surface without centring. Note:

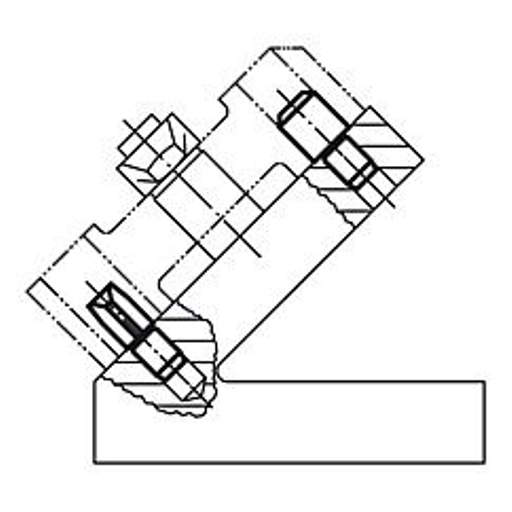

Thrust bolts form A serve as a mount for workpieces and fixtures.

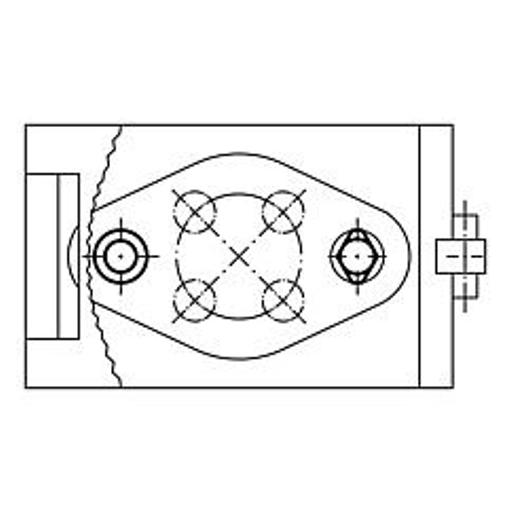

Straight bolts form B serve to position workpieces and fixture parts in holes with locating dimensions.
The flattened form C can be used to bridge tolerances in hole spacing or to secure the part to be positioned in one direction only.
Form A and B can also be used as hardened stop and as foot for fixtures.
For similar bolts see K0352, K0353, K0354 and K0355.

Quick Links

Dispatch by 09/06/25

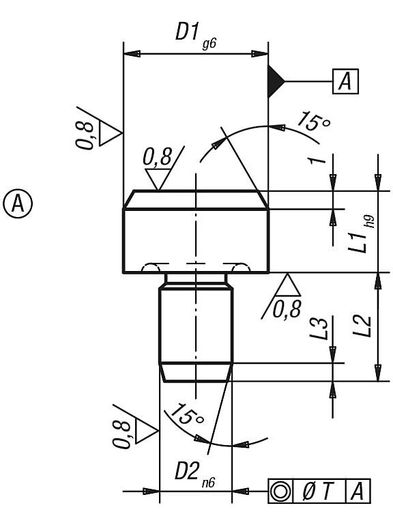

Form: A

D1: 6

H: 5

H1: 6

H2: 1,2

T: 0,02

D2: 4

DIN: DIN 6321

£5.74 ea. Excl VAT £6.89 ea. Inc VAT
