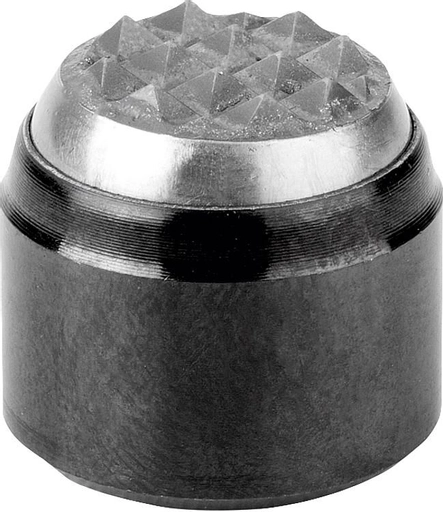

Self-Sligning Pad. Form K. M3 Thread. 12mm Diameter. Carbon Steel.

Item Code: K0282.803

Self-Sligning Pad. Form K. M3 Thread. 12mm Diameter. Carbon Steel.

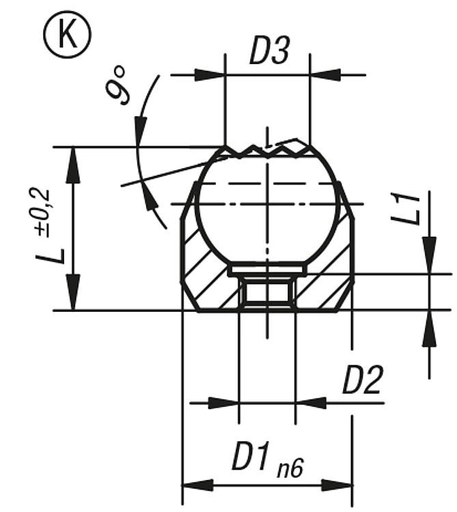

Self-alligning-pad-K-Drawing_1200x1200.jpg?

Item Code: K0282.803

Self-Sligning Pad. Form K. M3 Thread. 12mm Diameter. Carbon Steel.

Material:
Body carbon steel,
ball 1.2067 ball-bearing steel,
insert carbide.
Version:
Body tempered and phosphated.
Ball hardened.
Note:
Self-aligning pads serve as stops, supports and thrust pads in fixture constructions.
Ball secured against rotation.

Quick Links

Dispatch by 08/07/25

D1: 12

D2: M3

D3: 7,9

DK: 10

Form: K

H: 11

Load rating max. kN (static load only): 10*

Material mount surface / support surface: carbide

Receiving hole: ø 12 H7X6 min.

T: 3

£47.98 ea. Excl VAT £57.58 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£44.14	8%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Product Dimensions

D1	12
D2	M3
D3	7,9
DK	10
Form	K
H	11
Load rating max. kN (static load only)	10*
Material mount surface / support surface	carbide
Receiving hole	ø 12 H7X6 min.
T	3

Downloads

STP

Specifications

Thread Size / Body Diameter	M3
Length	12mm
Body Material	Steel
Ball / Head Material	Steel
Head Type	Flat Serrated
