K0282 - Self-Aligning Pads
Back to K0282 Self-Aligning Pad Form G

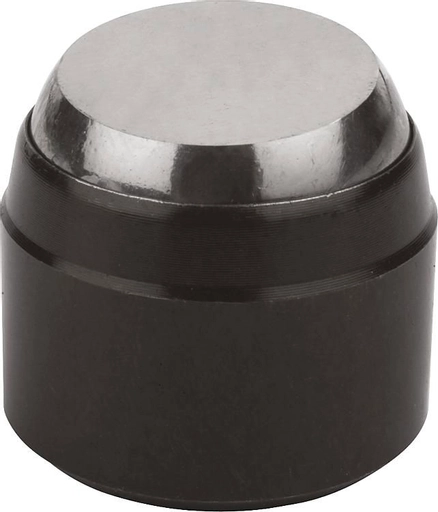

Self-Sligning Pad. Form G. M4 Thread. 18mm Diameter. Carbon Steel.

Item Code: K0282.404

Self-Sligning Pad. Form G. M4 Thread. 18mm Diameter. Carbon Steel.

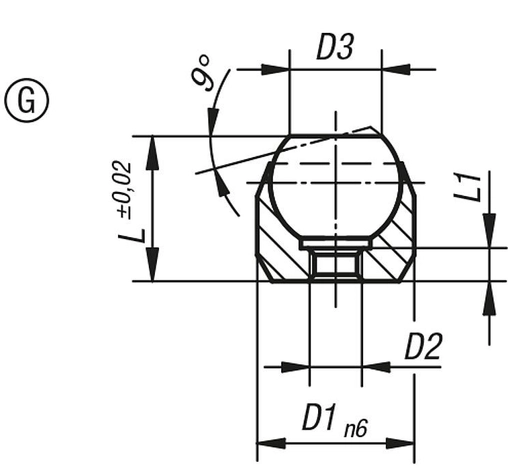

Self-alligning-pad-G-Drawing_1200x1200.jpg?

Item Code: K0282.404

Self-Sligning Pad. Form G. M4 Thread. 18mm Diameter. Carbon Steel.

Material:
Body carbon steel, ball ball-bearing steel 1.2067.
Version:
Body tempered and phosphated.
Ball hardened.
Note:
Self-aligning pads serve as stops, supports and thrust pads in fixture constructions.
Ball secured against rotation.

Quick Links

Dispatch by 08/07/25

D1: 18

D2: M4

D3: 10,5

DK: 16

Form: G

H: 17

Load rating max. kN (static load only): 25*

Material mount surface / support surface: Steel

Receiving hole: ø 18 H7X8 min.

T: 4,4

£32.50 ea. Excl VAT £39.00 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£29.90	8%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Product Dimensions

D1	18
D2	M4
D3	10,5
DK	16
Form	G
H	17
Load rating max. kN (static load only)	25*
Material mount surface / support surface	Steel
Receiving hole	ø 18 H7X8 min.
T	4,4

Downloads

STP

Specifications

Thread Size / Body Diameter	M4
Length	18mm
Body Material	Steel
Ball / Head Material	Steel
Head Type	Flat

Self-Sligning Pad. Form G. M4 Thread. 18mm Diameter. Carbon Steel.

Self-Sligning Pad. Form G. M4 Thread. 18mm Diameter. Carbon Steel.
