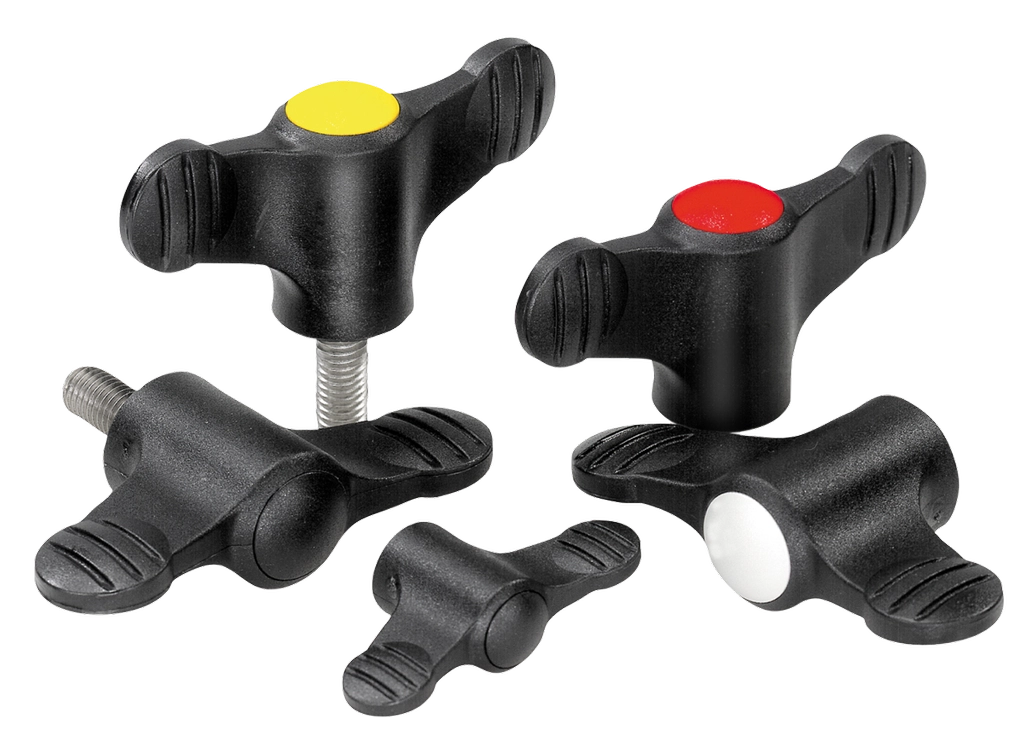

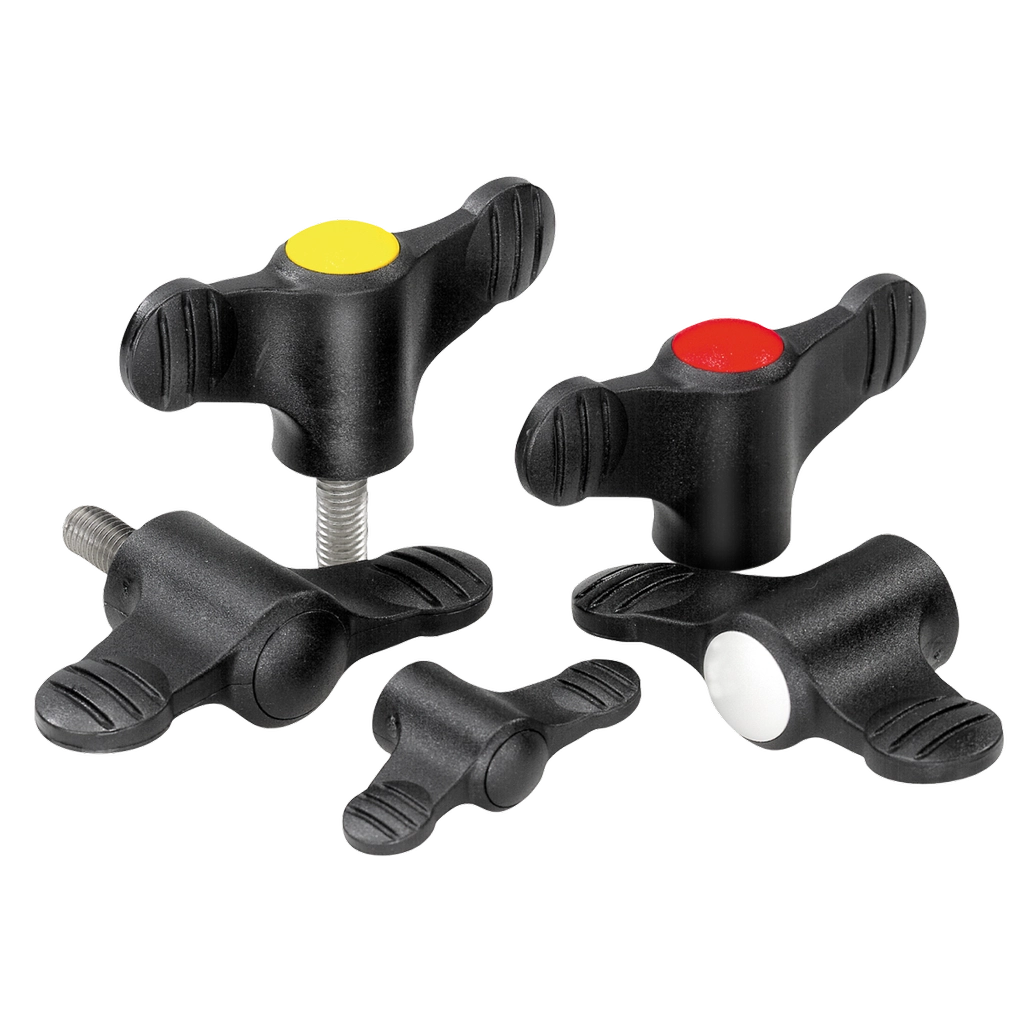

K0274 Inch - Wing Grips Parts In Steel And Stainless Steel

K0274 Inch - Wing Grips Parts In Steel And Stainless Steel

Material:
Grip black thermoplastic.
Bushing and screw steel 5.8 or stainless steel 1.4305 (AISI 303 equivalent).

Version:
Bushing or screw trivalent blue passivated steel or bright stainless steel.

Note:
For the inch series, dimension D is in inches, all other dimensions are in mm.

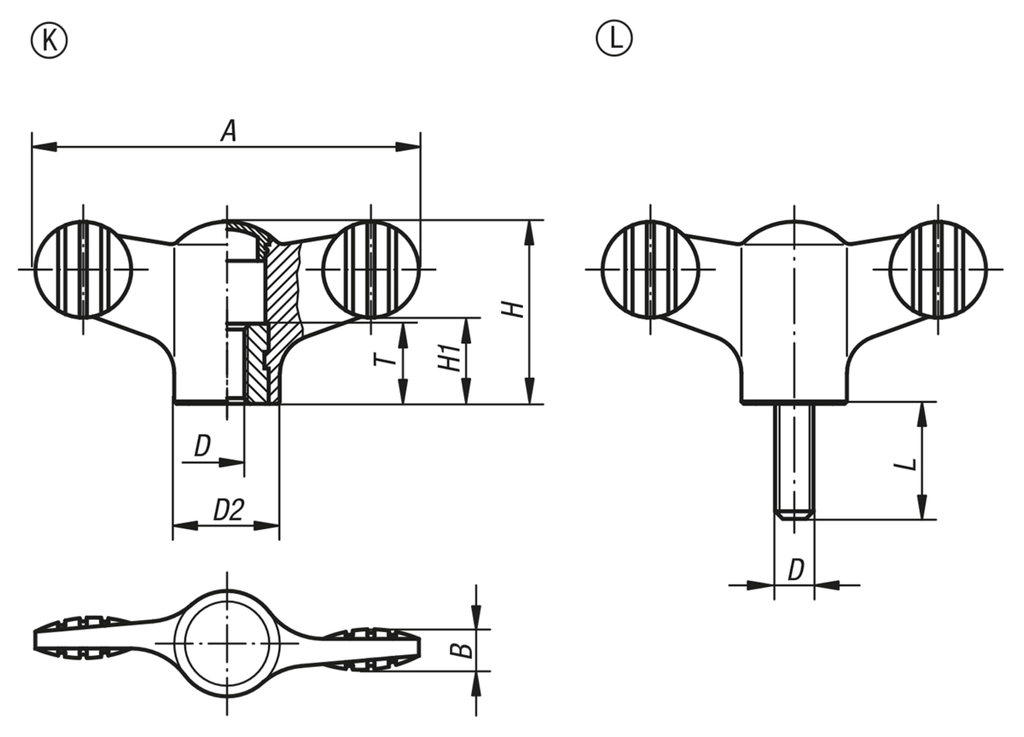

Drawing Reference:
K=Female
L=Male

Select your sizes

Line drawing placeholder

Move drawing here

	A	B	Colour Cap	Component Material	D	D2	H	H1	L	Male/Female	Style	T	Price (Exc. Tax)	Stock
Filters
K0274.09A2 View product	38	4.5	Black	Stainless Steel	1/4-20	12	18	8.5	--	Female	K	10	£1.99	0
K0274.09A25 View product	38	4.5	Grey	Stainless Steel	1/4-20	12	18	8.5	--	Female	K	10	£1.99	0
K0274.09A26 View product	38	4.5	Red	Stainless Steel	1/4-20	12	18	8.5	--	Female	K	10	£1.99	0
K0274.09A27 View product	38	4.5	Yellow	Stainless Steel	1/4-20	12	18	8.5	--	Female	K	10	£1.99	0
K0274.01A2 View product	50	5	Black	Stainless Steel	1/4-20	14	24	11.5	--	Female	K	10	£2.20	0
K0274.01A25 View product	50	5	Grey	Stainless Steel	1/4-20	14	24	11.5	--	Female	K	10	£2.20	0
K0274.01A26 View product	50	5	Red	Stainless Steel	1/4-20	14	24	11.5	--	Female	K	10	£2.20	0
K0274.01A27 View product	50	5	Yellow	Stainless Steel	1/4-20	14	24	11.5	--	Female	K	10	£2.20	0
K0274.09A2X20 View product	38	4.5	Black	Stainless Steel	1/4-20	12	18	8.5	20	Male	L	--	£2.22	0
K0274.09A25X20 View product	38	4.5	Grey	Stainless Steel	1/4-20	12	18	8.5	20	Male	L	--	£2.22	0
K0274.09A26X20 View product	38	4.5	Red	Stainless Steel	1/4-20	12	18	8.5	20	Male	L	--	£2.22	0
K0274.09A27X20 View product	38	4.5	Yellow	Stainless Steel	1/4-20	12	18	8.5	20	Male	L	--	£2.22	0
K0274.01A2X20 View product	50	5	Black	Stainless Steel	1/4-20	14	24	11.5	20	Male	L	--	£2.49	0
K0274.01A25X20 View product	50	5	Grey	Stainless Steel	1/4-20	14	24	11.5	20	Male	L	--	£2.49	0
K0274.01A26X20 View product	50	5	Red	Stainless Steel	1/4-20	14	24	11.5	20	Male	L	--	£2.49	0
K0274.01A27X20 View product	50	5	Yellow	Stainless Steel	1/4-20	14	24	11.5	20	Male	L	--	£2.49	0
K0274.09A2X30 View product	38	4.5	Black	Stainless Steel	1/4-20	12	18	8.5	30	Male	L	--	£2.39	0
K0274.09A25X30 View product	38	4.5	Grey	Stainless Steel	1/4-20	12	18	8.5	30	Male	L	--	£2.39	0
K0274.09A26X30 View product	38	4.5	Red	Stainless Steel	1/4-20	12	18	8.5	30	Male	L	--	£2.39	0
K0274.09A27X30 View product	38	4.5	Yellow	Stainless Steel	1/4-20	12	18	8.5	30	Male	L	--	£2.39	0
K0274.01A2X30 View product	50	5	Black	Stainless Steel	1/4-20	14	24	11.5	30	Male	L	--	£2.68	0
K0274.01A25X30 View product	50	5	Grey	Stainless Steel	1/4-20	14	24	11.5	30	Male	L	--	£2.68	0
K0274.01A26X30 View product	50	5	Red	Stainless Steel	1/4-20	14	24	11.5	30	Male	L	--	£2.68	0
K0274.01A27X30 View product	50	5	Yellow	Stainless Steel	1/4-20	14	24	11.5	30	Male	L	--	£2.68	0
K0274.09A2X40 View product	38	4.5	Black	Stainless Steel	1/4-20	12	18	8.5	40	Male	L	--	£2.54	0
K0274.09A25X40 View product	38	4.5	Grey	Stainless Steel	1/4-20	12	18	8.5	40	Male	L	--	£2.54	0
K0274.09A26X40 View product	38	4.5	Red	Stainless Steel	1/4-20	12	18	8.5	40	Male	L	--	£2.54	0
K0274.09A27X40 View product	38	4.5	Yellow	Stainless Steel	1/4-20	12	18	8.5	40	Male	L	--	£2.54	0
K0274.01A2X40 View product	50	5	Black	Stainless Steel	1/4-20	14	24	11.5	40	Male	L	--	£2.81	0
K0274.01A25X40 View product	50	5	Grey	Stainless Steel	1/4-20	14	24	11.5	40	Male	L	--	£2.81	0
K0274.01A26X40 View product	50	5	Red	Stainless Steel	1/4-20	14	24	11.5	40	Male	L	--	£2.81	0
K0274.01A27X40 View product	50	5	Yellow	Stainless Steel	1/4-20	14	24	11.5	40	Male	L	--	£2.81	0
K0274.09A1 View product	38	4.5	Black	Stainless Steel	10-32	12	18	8.5	--	Female	K	10	£1.99	0
K0274.09A15 View product	38	4.5	Grey	Stainless Steel	10-32	12	18	8.5	--	Female	K	10	£1.99	0
K0274.09A16 View product	38	4.5	Red	Stainless Steel	10-32	12	18	8.5	--	Female	K	10	£1.99	0
K0274.09A17 View product	38	4.5	Yellow	Stainless Steel	10-32	12	18	8.5	--	Female	K	10	£1.99	0
K0274.01A1 View product	50	5	Black	Stainless Steel	10-32	14	24	11.5	--	Female	K	10	£2.20	0
K0274.01A15 View product	50	5	Grey	Stainless Steel	10-32	14	24	11.5	--	Female	K	10	£2.20	0
K0274.01A16 View product	50	5	Red	Stainless Steel	10-32	14	24	11.5	--	Female	K	10	£2.20	0
K0274.01A17 View product	50	5	Yellow	Stainless Steel	10-32	14	24	11.5	--	Female	K	10	£2.20	0
K0274.09A1X10 View product	38	4.5	Black	Stainless Steel	10-32	12	18	8.5	10	Male	L	--	£2.15	0
K0274.09A15X10 View product	38	4.5	Grey	Stainless Steel	10-32	12	18	8.5	10	Male	L	--	£2.15	0
K0274.09A16X10 View product	38	4.5	Red	Stainless Steel	10-32	12	18	8.5	10	Male	L	--	£2.15	0
K0274.09A17X10 View product	38	4.5	Yellow	Stainless Steel	10-32	12	18	8.5	10	Male	L	--	£2.15	0
K0274.01A1X10 View product	50	5	Black	Stainless Steel	10-32	14	24	11.5	10	Male	L	--	£2.33	0
K0274.01A15X10 View product	50	5	Grey	Stainless Steel	10-32	14	24	11.5	10	Male	L	--	£2.33	0
K0274.01A16X10 View product	50	5	Red	Stainless Steel	10-32	14	24	11.5	10	Male	L	--	£2.33	0
K0274.01A17X10 View product	50	5	Yellow	Stainless Steel	10-32	14	24	11.5	10	Male	L	--	£2.33	0
