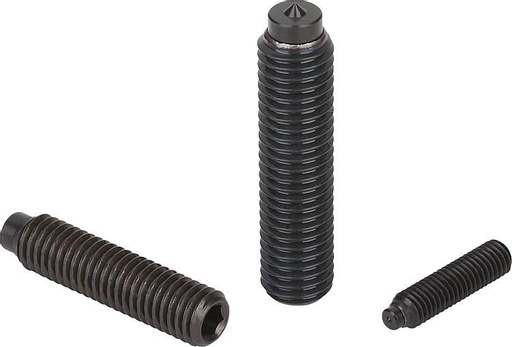

THRUST SCREW WITHOUT HEAD M05X12,5, STEEL 10.9 BLACK OXIDISED, COMP:TOOL STEEL HARDENED AND BLACK OXID FI

Item Code: K0272.05X13

THRUST SCREW WITHOUT HEAD M05X12,5, STEEL 10.9 BLACK OXIDISED, COMP:TOOL STEEL HARDENED AND BLACK OXID FI

Item Code: K0272.05X13

THRUST SCREW WITHOUT HEAD M05X12,5, STEEL 10.9 BLACK OXIDISED, COMP:TOOL STEEL HARDENED AND BLACK OXID FI

Material:
Screw steel grade 10.9.
Pin tool steel.
Version:
Pin, hardened.
Screw and pin black oxidised.
Note:
These thrust screws with point are used when additional positive fixation is required.

Quick Links

Dispatch by 08/07/25

D: M5

D1: 3

Grade: 10.9

L: 12,5

L2: 1,3

L4: 0,5

Load rating , max. kN , (static load only): 4,5

SW: 2,5

£2.42 ea. Excl VAT £2.90 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
50 +	£2.08	14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Material:
Screw steel grade 10.9.
Pin tool steel.
Version:
Pin, hardened.
Screw and pin black oxidised.
Note:
These thrust screws with point are used when additional positive fixation is required.

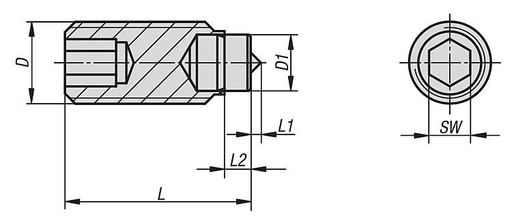

Product Dimensions

D	M5
D1	3
Grade	10.9
L	12,5
L2	1,3
L4	0,5
Load rating , max. kN , (static load only)	4,5
SW	2,5

Downloads

STP

Specifications

Thread Size / Body Diameter	M5
Length	12.5mm
Body Material	Steel
Ball / Head Material	Steel
Head Type	Point

THRUST SCREW WITHOUT HEAD M05X12,5, STEEL 10.9 BLACK OXIDISED, COMP:TOOL STEEL HARDENED AND BLACK OXID FI

THRUST SCREW WITHOUT HEAD M05X12,5, STEEL 10.9 BLACK OXIDISED, COMP:TOOL STEEL HARDENED AND BLACK OXID FI
