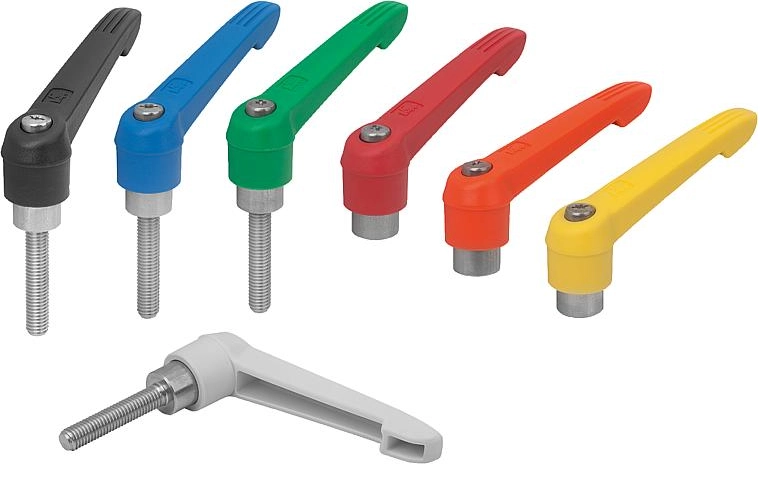

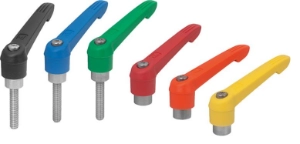

K0270 - Plastic Clamp Levers With Stainless Steel Parts M4-M16

K0270 - Plastic Clamp Levers With Stainless Steel Parts M4-M16

List view Grid view

Material:
Handle fibreglass reinforced plastic with die-cast zinc toothed ring.
Steel parts stainless steel 1.4305.

Version:
Steel parts bright.

Clamp Lever. 40mm Handle Length. M5x15mm Stainless Steel Thread.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Style

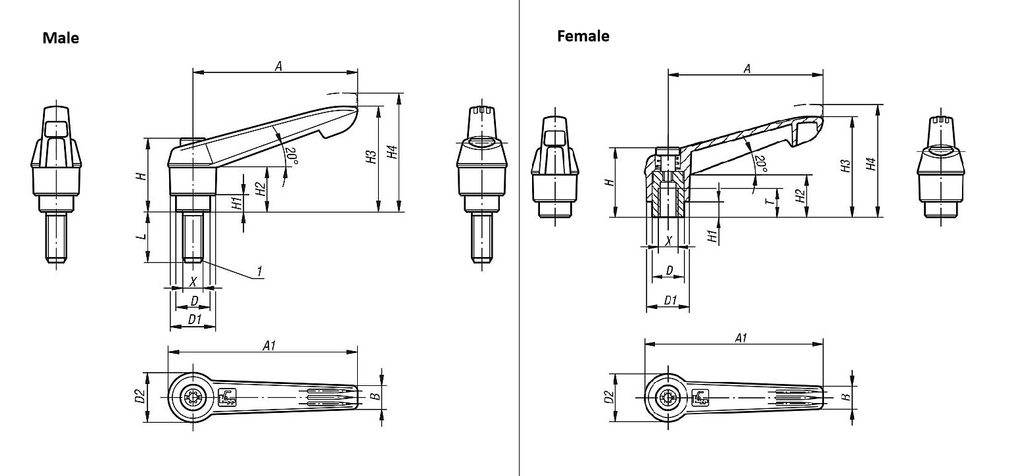

Line drawing placeholder

Move drawing here

	A	A1	B	D	D1	D2	H	H1	H2	H3	H4	L	Male/Female	T	X	Price (Exc. Tax)	Stock
Filters
K0270.1041 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M4	£7.06	18
K0270.10416 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M4	£7.06	0
K0270.1042 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M4	£7.06	0
K0270.10484 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M4	£7.06	19
K0270.10486 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M4	£7.06	0
K0270.10487 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M4	£7.06	1
K0270.1051 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M5	£7.06	32
K0270.10516 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M5	£7.06	0
K0270.10516X10 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	10	Male	--	M5	£7.57	0
K0270.10516X15 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	15	Male	--	M5	£7.57	0
K0270.10516X20 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	20	Male	--	M5	£7.57	0
K0270.10516X25 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	25	Male	--	M5	£7.57	0
K0270.1051X10 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	10	Male	--	M5	£7.57	0
K0270.1051X15 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	15	Male	--	M5	£7.57	0
K0270.1051X20 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	20	Male	--	M5	£7.57	0
K0270.1051X25 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	25	Male	--	M5	£7.57	6
K0270.1052 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M5	£7.06	0
K0270.1052X10 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	10	Male	--	M5	£7.57	0
K0270.1052X15 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	15	Male	--	M5	£7.57	0
K0270.1052X20 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	20	Male	--	M5	£7.57	0
K0270.1052X25 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	25	Male	--	M5	£7.57	0
K0270.10584 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M5	£7.06	0
K0270.10584X10 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	10	Male	--	M5	£7.57	0
K0270.10584X15 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	15	Male	--	M5	£7.57	0
K0270.10584X20 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	20	Male	--	M5	£7.57	0
K0270.10584X25 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	25	Male	--	M5	£7.57	0
K0270.10586 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M5	£7.06	0
K0270.10586X10 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	10	Male	--	M5	£7.57	0
K0270.10586X15 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	15	Male	--	M5	£7.57	0
K0270.10586X20 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	20	Male	--	M5	£7.57	0
K0270.10586X25 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	25	Male	--	M5	£7.57	0
K0270.10587 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M5	£7.06	0
K0270.10587X10 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	10	Male	--	M5	£7.57	0
K0270.10587X15 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	15	Male	--	M5	£7.57	0
K0270.10587X20 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	20	Male	--	M5	£7.57	0
K0270.10587X25 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	25	Male	--	M5	£7.57	0
K0270.1061 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M6	£7.06	0
K0270.10616 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M6	£7.06	0
K0270.10616X10 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	10	Male	--	M6	£7.57	0
K0270.10616X15 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	15	Male	--	M6	£7.57	0
K0270.10616X20 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	20	Male	--	M6	£7.57	0
K0270.10616X25 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	25	Male	--	M6	£7.57	0
K0270.10616X30 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	30	Male	--	M6	£7.57	0
K0270.10616X40 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	40	Male	--	M6	£8.12	0
K0270.10616X50 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	50	Male	--	M6	£8.12	0
K0270.1061X10 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	10	Male	--	M6	£7.57	10
K0270.1061X15 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	15	Male	--	M6	£7.57	27
K0270.1061X20 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	20	Male	--	M6	£7.57	0
