K0269 - Plastic Clamp Levers with Steel Parts M4-M16

K0269 - Plastic Clamp Levers with Steel Parts M4-M16

List view Grid view

Material:
Handle fibreglass reinforced plastic with die-cast zinc toothed ring.
Steel parts grade 5.8.

Version:
Steel parts black oxidised.

Note:
Where L ≥ 60 mm the thread length is always 60 mm.

Clamp Lever. 80mm Handle Length. M10x50mm Steel Thread.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Style

Line drawing placeholder

Move drawing here

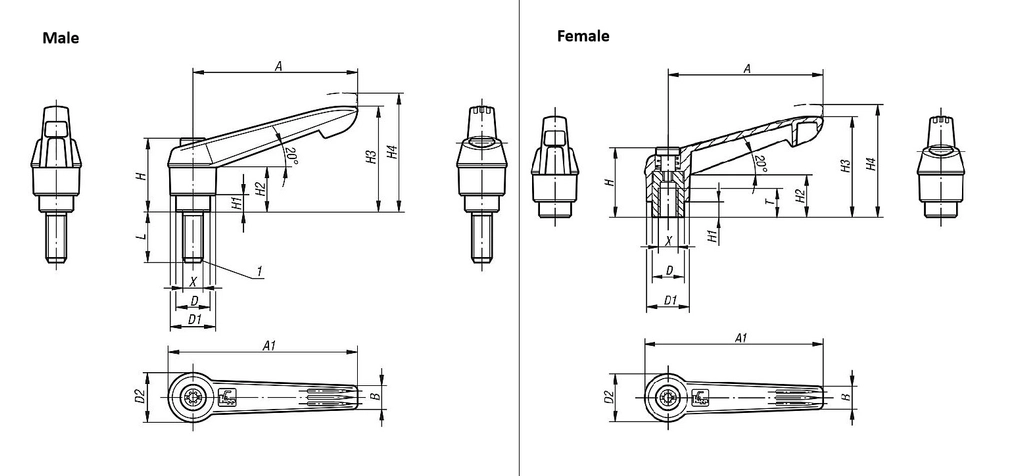

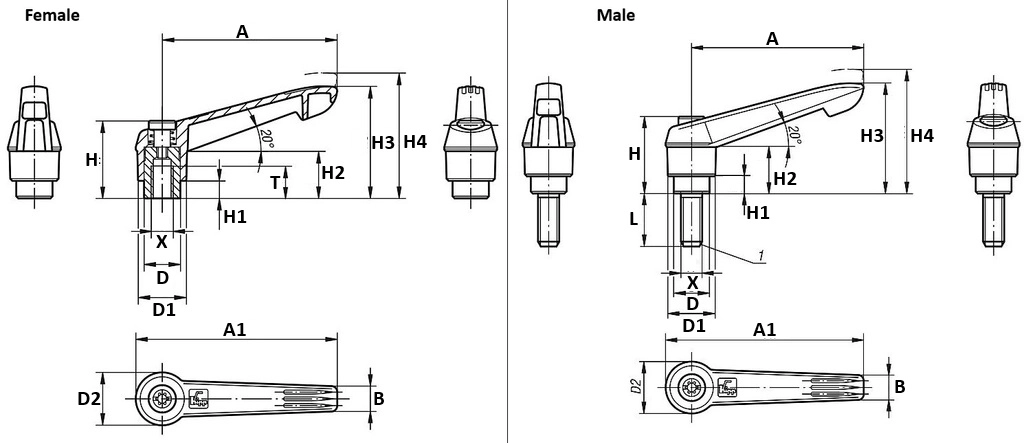

	A	A1	B	D	D1	D2	H	H1	H2	H3	H4	L	Male/Female	T	X	Price (Exc. Tax)	Stock
Filters
K0269.1041 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M4	£3.41	22
K0269.10416 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M4	£3.41	0
K0269.1042 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M4	£3.41	0
K0269.10484 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M4	£3.41	9
K0269.10486 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M4	£3.41	0
K0269.10487 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M4	£3.41	9
K0269.1051 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M5	£3.41	34
K0269.10516 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M5	£3.41	0
K0269.10516X10 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	10	Male	--	M5	£3.71	0
K0269.10516X15 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	15	Male	--	M5	£3.71	0
K0269.10516X20 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	20	Male	--	M5	£3.71	0
K0269.10516X25 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	25	Male	--	M5	£3.71	0
K0269.10516X30 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	30	Male	--	M5	£3.71	0
K0269.10516X35 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	35	Male	--	M5	£4.15	0
K0269.10516X40 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	40	Male	--	M5	£4.15	0
K0269.10516X45 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	45	Male	--	M5	£4.15	0
K0269.10516X50 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	50	Male	--	M5	£4.15	0
K0269.1051X10 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	10	Male	--	M5	£3.71	10
K0269.1051X15 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	15	Male	--	M5	£3.71	6
K0269.1051X20 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	20	Male	--	M5	£3.71	1
K0269.1051X25 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	25	Male	--	M5	£3.71	0
K0269.1051X30 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	30	Male	--	M5	£3.71	4
K0269.1051X35 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	35	Male	--	M5	£4.15	0
K0269.1051X40 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	40	Male	--	M5	£4.15	0
K0269.1051X45 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	45	Male	--	M5	£4.15	0
K0269.1051X50 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	50	Male	--	M5	£4.15	6
K0269.1052 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M5	£3.41	0
K0269.1052X10 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	10	Male	--	M5	£3.71	0
K0269.1052X15 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	15	Male	--	M5	£3.71	5
K0269.1052X20 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	20	Male	--	M5	£3.71	0
K0269.1052X25 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	25	Male	--	M5	£3.71	0
K0269.1052X30 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	30	Male	--	M5	£3.71	0
K0269.1052X35 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	35	Male	--	M5	£4.15	0
K0269.1052X40 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	40	Male	--	M5	£4.15	0
K0269.1052X45 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	45	Male	--	M5	£4.15	0
K0269.1052X50 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	50	Male	--	M5	£4.15	10
K0269.10584 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M5	£3.41	0
K0269.10584X10 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	10	Male	--	M5	£3.71	0
K0269.10584X15 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	15	Male	--	M5	£3.71	0
K0269.10584X20 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	20	Male	--	M5	£3.71	12
K0269.10584X25 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	25	Male	--	M5	£3.71	0
K0269.10584X30 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	30	Male	--	M5	£3.71	4
K0269.10584X35 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	35	Male	--	M5	£4.15	0
K0269.10584X40 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	40	Male	--	M5	£4.15	0
K0269.10584X45 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	45	Male	--	M5	£4.15	0
K0269.10584X50 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	50	Male	--	M5	£4.15	0
K0269.10586 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	--	Female	9	M5	£3.41	0
K0269.10586X10 View product	40	47	7.5	10	13	14.5	24.5	4	15	30	33.5	10	Male	--	M5	£3.71	0
