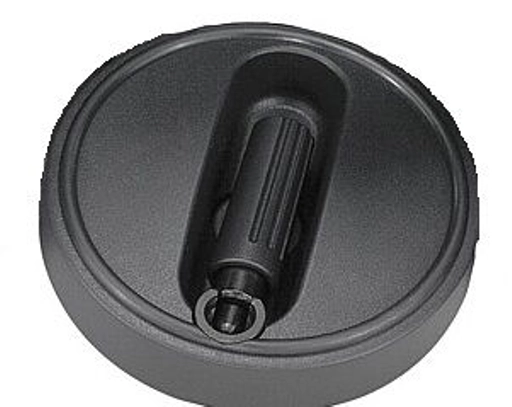

Handwheel. Folding Revolving Grip. 10mm H7 Reamed Hole. 80mm Overall Diameter. With Keyway. Plastic.

Item Code: K0258.10801003

Handwheel. Folding Revolving Grip. 10mm H7 Reamed Hole. 80mm Overall Diameter. With Keyway. Plastic.

Item Code: K0258.10801003

Handwheel. Folding Revolving Grip. 10mm H7 Reamed Hole. 80mm Overall Diameter. With Keyway. Plastic.

Material, surface finish:
Anthracite grey thermoplastic.
Steel parts black oxide finish. Note:
The hub cover is supplied unassembled.
The handwheels can be secured axially to the shaft via feather connection by cross-pinning or with a socket head screw to DIN 6912 and a washer to DIN 7349.
Assembly example see K0256.

Quick Links

Dispatch by 09/06/25

D3: 19

D: 25

L: 74.6

L1: 13

L3: 36.7

D1: 80

A: 30

H: 17.6

T: 11.4

A1: 2.5

L2: 40

D2: 10H7

D4: 14

B3: 3

D5: M4

D6: 13

£40.35 ea. Excl VAT £48.42 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£33.09	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

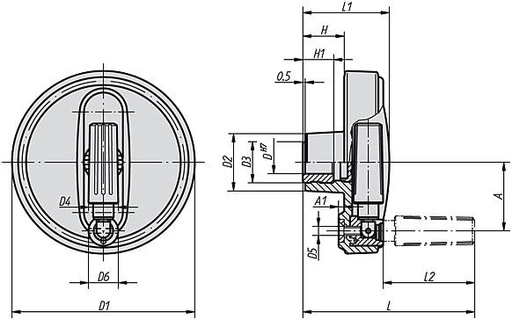

Product Dimensions

D3	19
D	25
L	74.6
L1	13
L3	36.7
D1	80
A	30
H	17.6
T	11.4
A1	2.5
L2	40
D2	10H7
D4	14
B3	3
D5	M4
D6	13

Downloads

STP

Handwheel. Folding Revolving Grip. 10mm H7 Reamed Hole. 80mm Overall Diameter. With Keyway. Plastic.

Handwheel. Folding Revolving Grip. 10mm H7 Reamed Hole. 80mm Overall Diameter. With Keyway. Plastic.
