Item Code: K0252.1A11X10

ECO Clamp Lever. 55mm Handle Length. 10-32"x10mm Thread.

Item Code: K0252.1A11X10

Material:
Handle and insert made from reinforced plastic.
Bush steel.

Version:
Steel trivalent blue passivated.

Note:

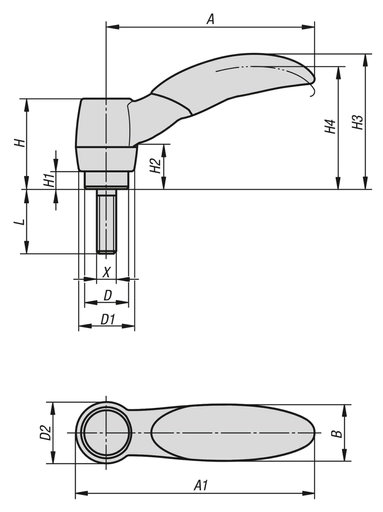

For the inch series, dimension X is in inches, all other dimensions are in mm.

Quick Links

No. Of Teeth: 12

A: 47.9

A1: 55

B: 13

D: 10

D1: 12.6

D2: 14.1

H: 21.7

H1: 5

H2: 11.3

H3: 32

H4: 29.1

L: 10

Male/Female: Male

X: 10-32

£2.55 ea. Excl VAT £3.06 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.
