Item Code: K0245.1206A56

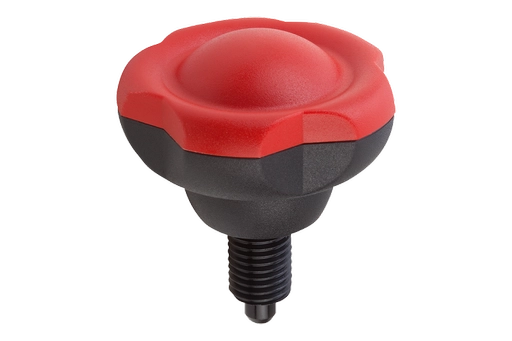

Indexing Plunger With 5 Lobe Grip. 1/2-13 Thread.

Item Code: K0245.1206A56

Material:
Thermoplastic.
Indexing pin and screw steel 5.8.

Version:
Steel version:
Threaded sleeve black oxidized.
Indexing pin hardened, ground and black oxidized.

Note:

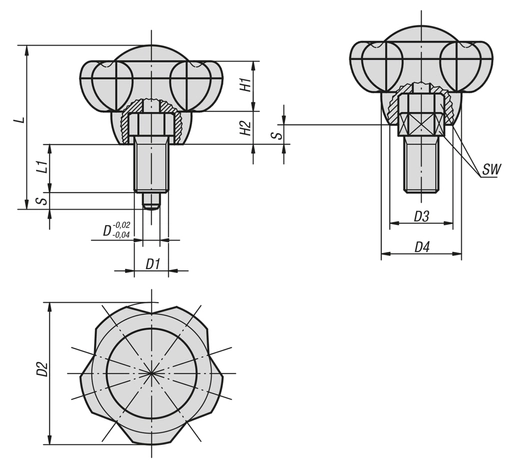

For the inch series, dimension D1 is in inches, all other dimensions are in mm.

Quick Links

Dispatch by 28/11/25

Colour Cap: Red

D: 6

D1: 1/2-13

D2: 1/2-13

D3: 50

D4: 22.2

H: 28.2

H2: 17.8

L: 57.8

L1: 17

SW: 14

Travel S: 6

£10.02 ea. Excl VAT £12.02 ea. Inc VAT
