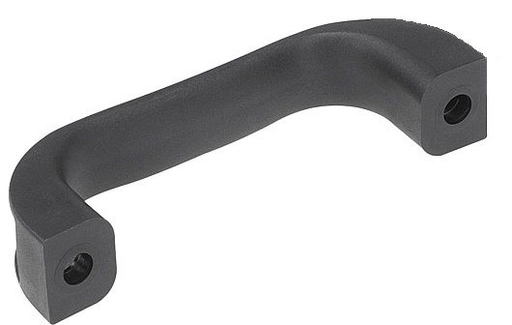

Pull Handle. 117mm Hole Centres. Polyamide.

Item Code: K0190.111708

Pull Handle. 117mm Hole Centres. Polyamide.

Item Code: K0190.111708

Pull Handle. 117mm Hole Centres. Polyamide.

Material: Thermoplastic PA (polyamide) or PP (polypropylene), glass-ball reinforced Surface finish: Anthracite grey Note: The fastening hole is designed in such a way that the Stirrup-Shaped Handles can be secured from the operating side with a socket head screw or a hexagon nut.

Quick Links

5 in stock

A: 117

B: 26

C: 10

D: 9

H: 41

L: 136

L1: 94

Load capacity N: 1500

Material: Polyamide

SW: 13

T: 15

T1: 8

£3.30 ea. Excl VAT £3.96 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
30 +	£2.77	16%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

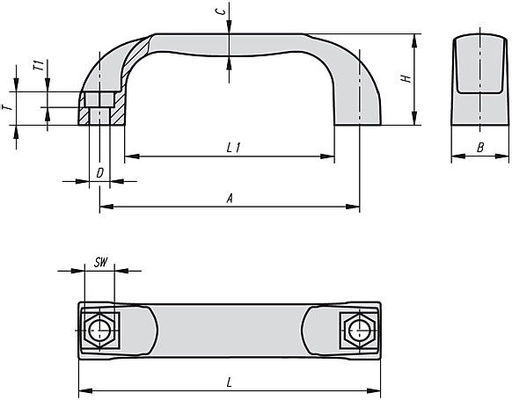

Product Dimensions

A	117
B	26
C	10
D	9
H	41
L	136
L1	94
Load capacity N	1500
Material	Polyamide
SW	13
T	15
T1	8

Downloads

STP

Specifications

Distance Between Hole Centres	117mm
Bore Size	9mm
Handle Material	Polyamide
Colour	Black Grey
