K0176 - Control Handles In Steel With Locating Hole & Female Thread Size M8-M20
Back to K0176 Control Handles In Steel With Locating Hole Size 8mm-20mm

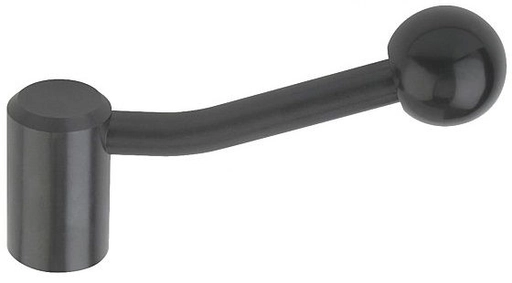

Tension Lever. 10mm H7 Tolerance Locating Hole.

Item Code: K0176.110

Tension Lever. 10mm H7 Tolerance Locating Hole.

K0176_560x310.jpg?

Z06340Anwb1_242x242.jpg?

Tension-Lever-With-Reamed-Hole_1200x1200.jpg?

Item Code: K0176.110

Tension Lever. 10mm H7 Tolerance Locating Hole.

Material:
Steel parts quality class 5.8;
black plastic ball knob Surface finish:
Black oxide finish Note:

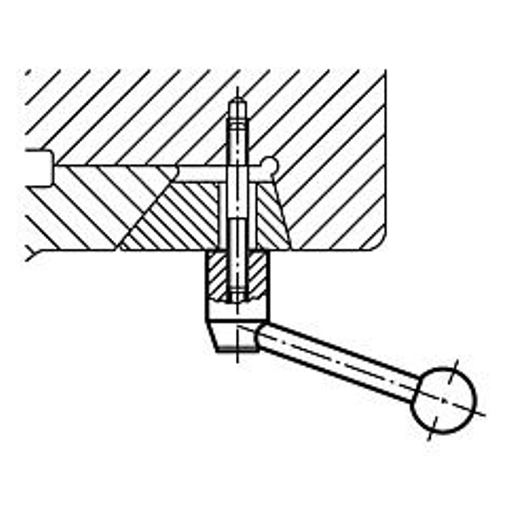

Control handles can be used for simple clamping applications and switching operations.
Generally there must be enough space so that the handle can be turned 360°.

Quick Links

Dispatch by 09/06/25

D: 24

D1: 10

A: 84,5

H: 40

H1: 52,5

H2: 32,5

T: 22

A2: 15

D2: 25

X: 10

£10.82 ea. Excl VAT £12.98 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£8.87	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Material:
Steel parts quality class 5.8;
black plastic ball knob Surface finish:
Black oxide finish Note:
Control handles can be used for simple clamping applications and switching operations.
Generally there must be enough space so that the handle can be turned 360°.

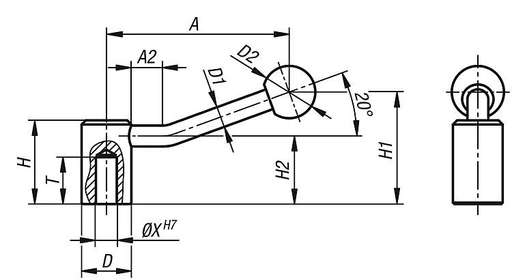

Product Dimensions

D	24
D1	10
A	84,5
H	40
H1	52,5
H2	32,5
T	22
A2	15
D2	25
X	10

Thread Type	Female
Bore Hole	10mm
Handle Length	84.5mm
Handle Material	Steel
Thread Material	Steel
