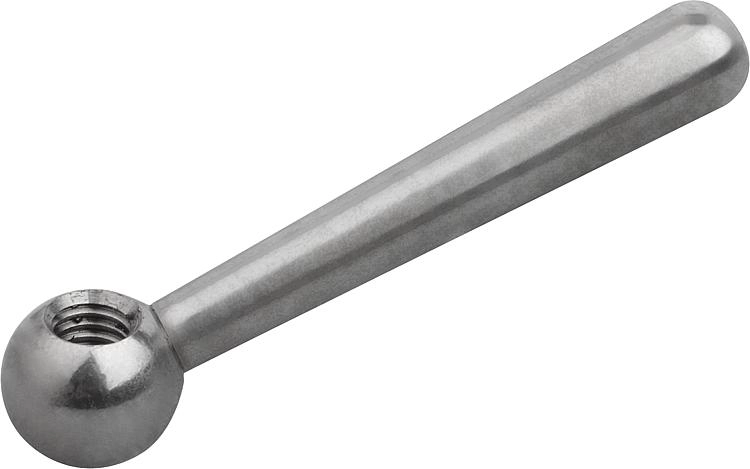

K0174 Tension Levers In Polished Steel Female Thread Size M6-M20

K0174 Tension Levers In Polished Steel Female Thread Size M6-M20

List view Grid view

Angled tension lever with internal thread M6
Material:
Steel Surface finish:
Polished

Tension Lever. M6 Thread. 48mm Long Handle.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

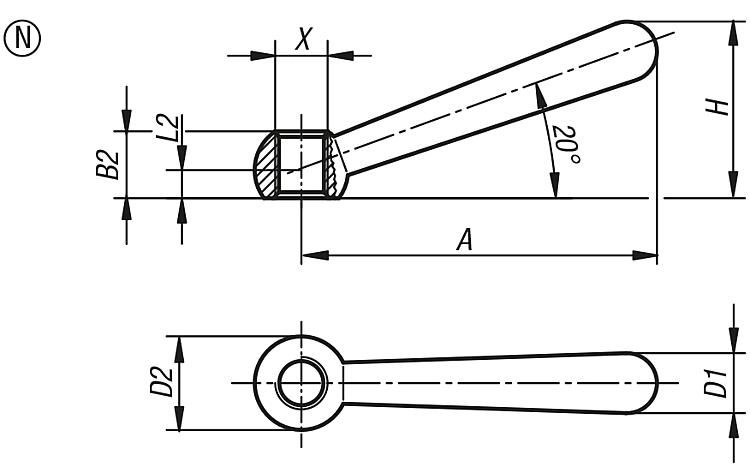

Line drawing placeholder

Move drawing here

	A	B2	D1	D2 ball	DIN	Form	H	L2	X	Price (Exc. Tax)	Stock
Filters
K0174.206 View product	48	9,5	8	12	DIN 99	N	24	4	M6	£4.19	7
K0174.208 View product	60	12	10	16	DIN 99	N	30,5	5	M8	£4.80	5
K0174.210 View product	76	14,5	13	20	DIN 99	N	38	6	M10	£6.21	0
K0174.212 View product	95	18,5	16	25	DIN 99	N	47	7,5	M12	£8.72	0
K0174.216 View product	119	24	20	32	DIN 99	N	59,5	10	M16	£17.08	10
K0174.220 View product	152	30	25	40	DIN 99	N	75,5	12,5	M20	£29.57	0
