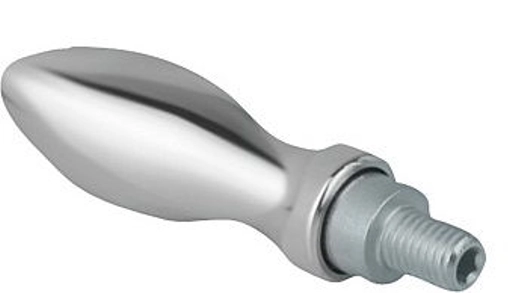

Machine Handle Revolving. M10 Thread. 83mm Handle Length. Aluminium.

Item Code: K0169.1025083

Machine Handle Revolving. M10 Thread. 83mm Handle Length. Aluminium.

Item Code: K0169.1025083

Machine Handle Revolving. M10 Thread. 83mm Handle Length. Aluminium.

Material:
Machine handle in aluminium. :
Axle part in steel. Surface finish::
Machine handle polished.:
Axle part galvanized and blue chromated. Note::
Machine handle suitable for handwheels to DIN 950.

Quick Links

Dispatch by 09/06/25

D: M10

L: 13

L1: 83

L3: 8

D1: 25

SW: 5

D4: 16

DIN: similar to DIN 98

L4: 6.5

D6: 21

£15.86 ea. Excl VAT £19.03 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£13.01	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

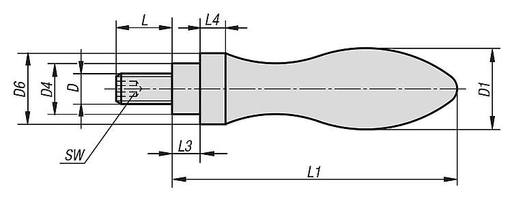

Product Dimensions

D	M10
L	13
L1	83
L3	8
D1	25
SW	5
D4	16
DIN	similar to DIN 98
L4	6.5
D6	21

Downloads

STP

Machine Handle Revolving. M10 Thread. 83mm Handle Length. Aluminium.

Machine Handle Revolving. M10 Thread. 83mm Handle Length. Aluminium.
