Back to K0162 Flat Rim Aluminium Fixed Grip 2 Spoke Handwheels

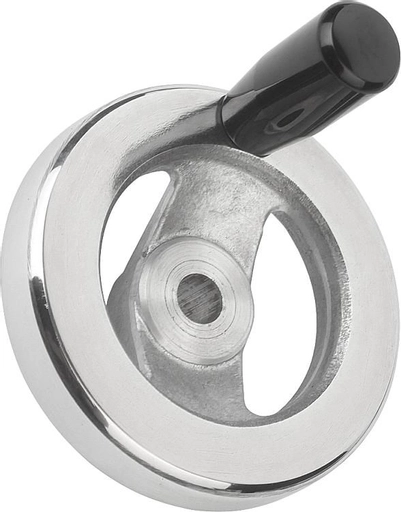

2 Spoke Handwheel. Fixed Handle. 20mm H7 Reamed Hole. 200mm Overall Diameter. With Keyway. Aluminium.

Item Code: K0162.3200X20

2 Spoke Handwheel. Fixed Handle. 20mm H7 Reamed Hole. 200mm Overall Diameter. With Keyway. Aluminium.

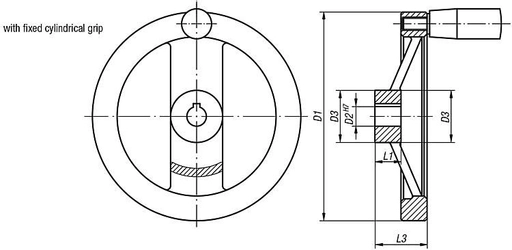

Handwheel-Flat-Aluminium-Black-Drawing_1200x1200.jpg?

Item Code: K0162.3200X20

2 Spoke Handwheel. Fixed Handle. 20mm H7 Reamed Hole. 200mm Overall Diameter. With Keyway. Aluminium.

Material:
Handwheels aluminium.
Cylinder grip black thermoset PF 31-DIN 7708, centre pin electro zinc-plated steel.
Version:
Black, powder-coated.
Wheel rim turned.
Radial and axial run-out of rim < IT 12.

Quick Links

Dispatch by 09/06/25

Fixed cylinder grip: ø26 x M10 x 80

D3: 42

L1: 24

L3: 45

D1: 200

T: 22.8

D2: 20H7

B3: 6

£51.06 ea. Excl VAT £61.27 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£41.87	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Product Dimensions

Fixed cylinder grip	ø26 x M10 x 80
D3	42
L1	24
L3	45
D1	200
T	22.8
D2	20H7
B3	6

Downloads

STP

2 Spoke Handwheel. Fixed Handle. 20mm H7 Reamed Hole. 200mm Overall Diameter. With Keyway. Aluminium.

2 Spoke Handwheel. Fixed Handle. 20mm H7 Reamed Hole. 200mm Overall Diameter. With Keyway. Aluminium.
