Item Code: K0161.2080XCN

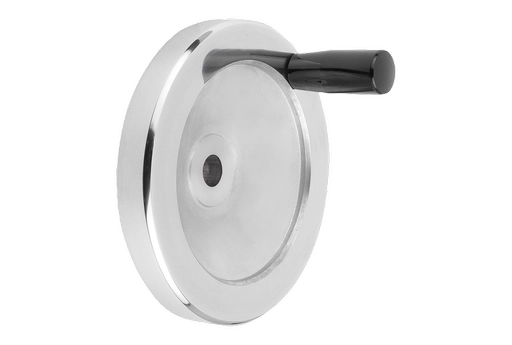

Disc Handwheel Aluminium. 80mm Dia. 0.312" Reamed Hole. Fixed Grip.

Item Code: K0161.2080XCN

Material:
Disc handwheel aluminum.
Cylinder grip black thermoset PF 31-DIN 7708.

Version:
Wheel rim turned and polished.

Note:

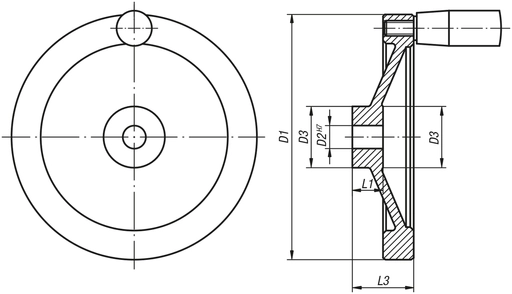

For the inch series, dimension D2 is in inches, all other dimensions are in mm.

Quick Links

Dispatch by 19/06/26

D1: 80

D2: 0.312

D3: 26

fixed machine handle DIN 39 style E: &oslash18 x M6 x 40

L1: 16

L3: 31

Style: fixed grip

Version: Reamed Hole

£24.46 ea. Excl VAT £29.35 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Next Working Day Delivery on All In-Stock Products

modal placeholder

Quick Links

D1	80
D2	0.312
D3	26
fixed machine handle DIN 39 style E	&oslash18 x M6 x 40
L1	16
L3	31
Style	fixed grip
Version	Reamed Hole
