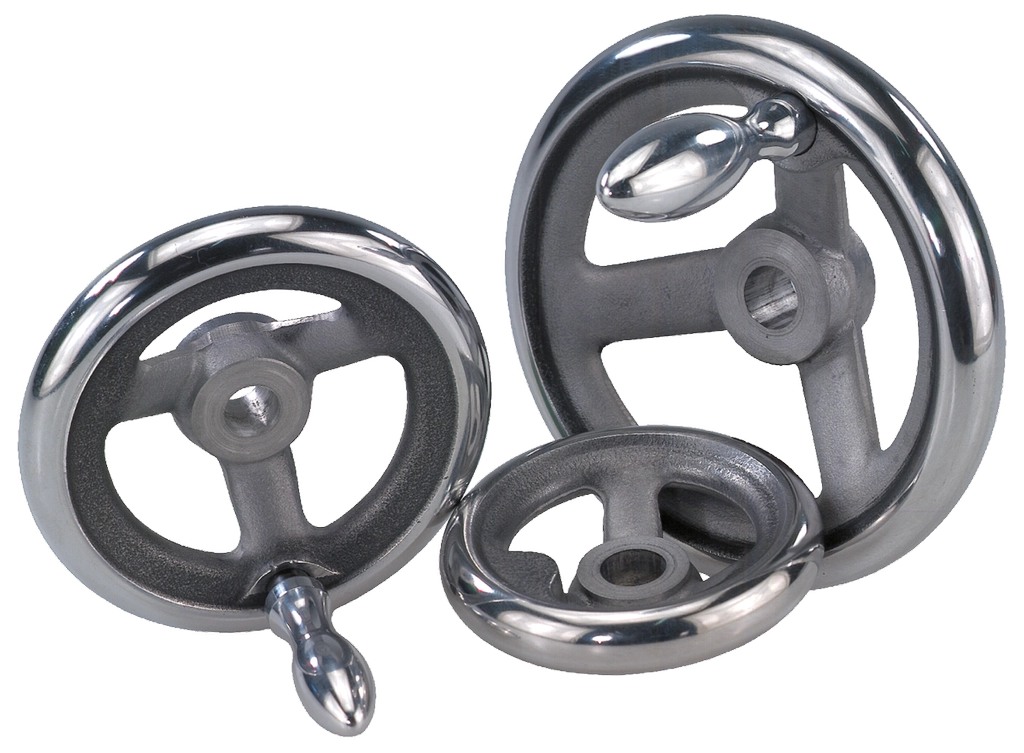

K0160 Inch - Aluminium Handwheels

K0160 Inch - Aluminium Handwheels

Material:
Handwheel aluminum.
Fixed grip aluminum, center pin black oxidized steel.
Revolving grip aluminum, center pin trivalent blue passivated steel.

Version:
Wheel rim turned and polished.

Note:
For the inch series, dimension D2 is in inches, all other dimensions are in mm.

K0160 Inch - Aluminium Handwheels

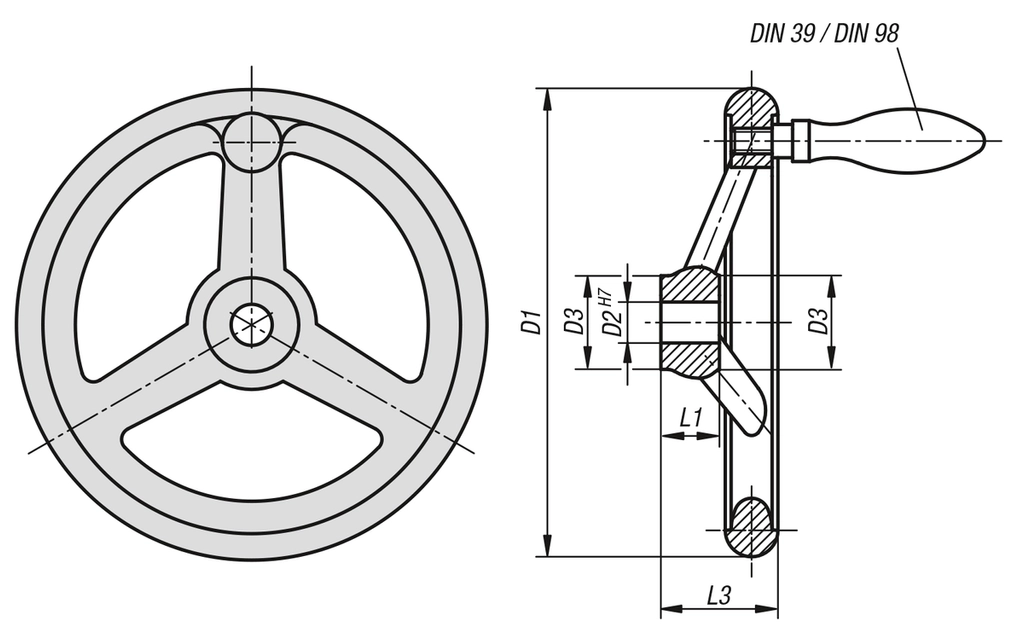

Line drawing placeholder

Move drawing here

D1 D2 D3 fixed machine handle DIN 39 style E L1 L3 Number of spokes revolving grip DIN 98 style E Style Version Price (Exc. Tax) Stock Qty basket

Filters
K0160.0100XCO
View product 		100 0.375 26 -- 17 33 3 -- No Grip Reamed Hole
£18.29
0
K0160.2100XCO
View product 		100 0.375 26 &oslash16 x M6 x 50 17 33 3 -- fixed grip Reamed Hole
£29.50
0
K0160.4100XCO
View product 		100 0.375 26 -- 17 33 3 &oslash16 x M6 x 54.5 revolving grip Reamed Hole
£34.45
0
K0160.0100XCP
View product 		100 .500 26 -- 17 33 3 -- No Grip Reamed Hole
£18.29
0
K0160.2100XCP
View product 		100 0.5 26 &oslash16 x M6 x 50 17 33 3 -- fixed grip Reamed Hole
£29.50
0
K0160.4100XCP
View product 		100 0.5 26 -- 17 33 3 &oslash16 x M6 x 54.5 revolving grip Reamed Hole
£34.45
0
K0160.0125XCO
View product 		125 0.375 28 -- 18 36 3 -- No Grip Reamed Hole
£23.02
0
K0160.2125XCO
View product 		125 0.375 28 &oslash20 x M8 x 64 18 36 3 -- fixed grip Reamed Hole
£36.83
0
K0160.4125XCO
View product 		125 0.375 28 -- 18 36 3 &oslash20 x M8 x 67 revolving grip Reamed Hole
£41.84
0
K0160.0125XCP
View product 		125 0.5 28 -- 18 36 3 -- No Grip Reamed Hole
£23.02
0
K0160.2125XCP
View product 		125 0.5 28 &oslash20 x M8 x 64 18 36 3 -- fixed grip Reamed Hole
£36.83
0
K0160.4125XCP
View product 		125 0.5 28 -- 18 36 3 &oslash20 x M8 x 67 revolving grip Reamed Hole
£41.84
0
K0160.0140XCP
View product 		140 0.5 30 -- 19 39 3 -- No Grip Reamed Hole
£27.37
0
K0160.2140XCP
View product 		140 0.5 30 &oslash20 x M8 x 64 19 39 3 -- fixed grip Reamed Hole
£41.00
0
K0160.4140XCP
View product 		140 0.5 30 -- 19 39 3 &oslash20 x M8 x 67 revolving grip Reamed Hole
£46.98
0
K0160.0140XCQ
View product 		140 0.625 30 -- 19 39 3 -- No Grip Reamed Hole
£27.37
0
K0160.2140XCQ
View product 		140 0.625 30 &oslash20 x M8 x 64 19 39 3 -- fixed grip Reamed Hole
£41.00
0
K0160.4140XCQ
View product 		140 0.625 30 -- 19 39 3 &oslash20 x M8 x 67 revolving grip Reamed Hole
£46.98
0
K0160.0160XCP
View product 		160 0.5 32 -- 20 40 3 -- No Grip Reamed Hole
£32.45
0
K0160.2160XCP
View product 		160 0.5 32 &oslash25 x M10 x 80 20 40 3 -- fixed grip Reamed Hole
£48.78
0
K0160.4160XCP
View product 		160 0.5 32 -- 20 40 3 &oslash25 x M10 x 83 revolving grip Reamed Hole
£56.99
0
K0160.0160XCQ
View product 		160 0.625 32 -- 20 40 3 -- No Grip Reamed Hole
£32.45
0
K0160.2160XCQ
View product 		160 0.625 32 &oslash25 x M10 x 80 20 40 3 -- fixed grip Reamed Hole
£48.78
0
K0160.4160XCQ
View product 		160 0.625 32 -- 20 40 3 &oslash25 x M10 x 83 revolving grip Reamed Hole
£56.99
0
K0160.0180XCP
View product 		180 0.5 37 -- 22 43 3 -- No Grip Reamed Hole
£39.20
0
K0160.2180XCP
View product 		180 0.5 37 &oslash25 x M10 x 80 22 43 3 -- fixed grip Reamed Hole
£54.87
0
K0160.4180XCP
View product 		180 0.5 37 -- 22 43 3 &oslash25 x M10 x 83 revolving grip Reamed Hole
£66.15
0
K0160.0180XCQ
View product 		180 0.625 37 -- 22 43 3 -- No Grip Reamed Hole
£39.20
0
K0160.2180XCQ
View product 		180 0.625 37 &oslash25 x M10 x 80 22 43 3 -- fixed grip Reamed Hole
£54.87
0
K0160.4180XCQ
View product 		180 0.625 37 -- 22 43 3 &oslash25 x M10 x 83 revolving grip Reamed Hole
£66.15
0
K0160.0200XCQ
View product 		200 0.625 38 -- 24 45 3 -- No Grip Reamed Hole
£48.48
0
K0160.2200XCQ
View product 		200 0.625 38 &oslash25 x M10 x 80 24 45 3 -- fixed grip Reamed Hole
£63.40
0
K0160.4200XCQ
View product 		200 0.625 38 -- 24 45 3 &oslash25 x M10 x 83 revolving grip Reamed Hole
£74.18
0
K0160.0200XCR
View product 		200 0.75 38 -- 24 45 3 -- No Grip Reamed Hole
£48.48
0
K0160.2200XCR
View product 		200 0.75 38 &oslash25 x M10 x 80 24 45 3 -- fixed grip Reamed Hole
£63.40
0
K0160.4200XCR
View product 		200 0.75 38 -- 24 45 3 &oslash25 x M10 x 83 revolving grip Reamed Hole
£74.18
0
K0160.0250XCR
View product 		250 0.75 45 -- 28 50 5 -- No Grip Reamed Hole
£79.57
0
K0160.2250XCR
View product 		250 0.75 45 &oslash32 x M12 x 100 28 50 5 -- fixed grip Reamed Hole
£99.49
0
K0160.4250XCR
View product 		250 0.75 45 -- 28 50 5 &oslash32 x M12 x 105.5 revolving grip Reamed Hole
£112.39
0
K0160.0250XCV
View product 		250 0.875 45 -- 28 50 5 -- No Grip Reamed Hole
£79.57
0
K0160.2250XCV
View product 		250 0.875 45 &oslash32 x M12 x 100 28 50 5 -- fixed grip Reamed Hole
£99.49
0
K0160.4250XCV
View product 		250 0.875 45 -- 28 50 5 &oslash32 x M12 x 105.5 revolving grip Reamed Hole
£112.39
0
K0160.0315XCV
View product 		315 0.875 54 -- 33 56 5 -- No Grip Reamed Hole
£127.60
0
K0160.2315XCV
View product 		315 0.875 54 &oslash32 x M12 x 100 33 56 5 -- fixed grip Reamed Hole
£143.18
0
K0160.4315XCV
View product 		315 0.875 53 -- 33 56 5 &oslash32 x M12 x 105.5 revolving grip Reamed Hole
£154.75
0
K0160.0315XCS
View product 		315 1 54 -- 33 56 5 -- No Grip Reamed Hole
£127.60
0
K0160.2315XCS
View product 		315 1 53 &oslash32 x M12 x 100 33 56 5 -- fixed grip Reamed Hole
£143.18
0
K0160.4315XCS
View product 		315 1 53 -- 33 56 5 &oslash32 x M12 x 105.5 revolving grip Reamed Hole
£154.75
0

Showing products per page


List view Grid view
£
£

Item Code: K0160.0100XCO

Handwheel DIN950 Aluminium. 100mm Dia. 0.375" Reamed Hole.

£18.29  Excl VAT £21.95  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.2100XCO

Handwheel DIN950 Aluminium. 100mm Dia. 0.375" Reamed Hole. Fixed Handle.

£29.50  Excl VAT £35.40  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.4100XCO

Handwheel DIN950 Aluminium. 100mm Dia. 0.375" Reamed Hole. Revolving Handle.

£34.45  Excl VAT £41.34  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.0100XCP

Handwheel DIN950 Aluminium. 100mm Dia. 0.5" Reamed Hole.

£18.29  Excl VAT £21.95  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.2100XCP

Handwheel DIN950 Aluminium. 100mm Dia. 0.5" Reamed Hole. Fixed Handle.

£29.50  Excl VAT £35.40  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.4100XCP

Handwheel DIN950 Aluminium. 100mm Dia. 0.5" Reamed Hole. Revolving Handle.

£34.45  Excl VAT £41.34  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.0125XCO

Handwheel DIN950 Aluminium. 120mm Dia. 0.375" Reamed Hole.

£23.02  Excl VAT £27.62  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.2125XCO

Handwheel DIN950 Aluminium. 120mm Dia. 0.375" Reamed Hole. Fixed Handle.

£36.83  Excl VAT £44.20  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.4125XCO

Handwheel DIN950 Aluminium. 120mm Dia. 0.375" Reamed Hole. Revolving Handle.

£41.84  Excl VAT £50.21  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.0125XCP

Handwheel DIN950 Aluminium. 120mm Dia. 0.5" Reamed Hole.

£23.02  Excl VAT £27.62  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.2125XCP

Handwheel DIN950 Aluminium. 120mm Dia. 0.5" Reamed Hole. Fixed Handle.

£36.83  Excl VAT £44.20  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.4125XCP

Handwheel DIN950 Aluminium. 120mm Dia. 0.5" Reamed Hole. Revolving Handle.

£41.84  Excl VAT £50.21  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.0140XCP

Handwheel DIN950 Aluminium. 140mm Dia. 0.5" Reamed Hole.

£27.37  Excl VAT £32.84  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.2140XCP

Handwheel DIN950 Aluminium. 140mm Dia. 0.5" Reamed Hole. Fixed Handle.

£41.00  Excl VAT £49.20  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.4140XCP

Handwheel DIN950 Aluminium. 140mm Dia. 0.5" Reamed Hole. Revolving Handle.

£46.98  Excl VAT £56.38  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.0140XCQ

Handwheel DIN950 Aluminium. 140mm Dia. 0.625" Reamed Hole.

£27.37  Excl VAT £32.84  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.2140XCQ

Handwheel DIN950 Aluminium. 140mm Dia. 0.625" Reamed Hole. Fixed Handle.

£41.00  Excl VAT £49.20  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.4140XCQ

Handwheel DIN950 Aluminium. 140mm Dia. 0.625" Reamed Hole. Revolving Handle.

£46.98  Excl VAT £56.38  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.0160XCP

Handwheel DIN950 Aluminium. 160mm Dia. 0.5" Reamed Hole.

£32.45  Excl VAT £38.94  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.2160XCP

Handwheel DIN950 Aluminium. 160mm Dia. 0.5" Reamed Hole. Fixed Handle.

£48.78  Excl VAT £58.54  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.4160XCP

Handwheel DIN950 Aluminium. 160mm Dia. 0.5" Reamed Hole. Revolving Handle.

£56.99  Excl VAT £68.39  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.0160XCQ

Handwheel DIN950 Aluminium. 160mm Dia. 0.625" Reamed Hole.

£32.45  Excl VAT £38.94  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.2160XCQ

Handwheel DIN950 Aluminium. 160mm Dia. 0.625" Reamed Hole. Fixed Handle.

£48.78  Excl VAT £58.54  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.4160XCQ

Handwheel DIN950 Aluminium. 160mm Dia. 0.625" Reamed Hole. Revolving Handle.

£56.99  Excl VAT £68.39  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.0180XCP

Handwheel DIN950 Aluminium. 180mm Dia. 0.5" Reamed Hole.

£39.20  Excl VAT £47.04  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.2180XCP

Handwheel DIN950 Aluminium. 180mm Dia. 0.5" Reamed Hole. Fixed Handle.

£54.87  Excl VAT £65.84  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.4180XCP

Handwheel DIN950 Aluminium. 180mm Dia. 0.5" Reamed Hole. Revolving Handle.

£66.15  Excl VAT £79.38  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.0180XCQ

Handwheel DIN950 Aluminium. 180mm Dia. 0.625" Reamed Hole.

£39.20  Excl VAT £47.04  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.2180XCQ

Handwheel DIN950 Aluminium. 180mm Dia. 0.625" Reamed Hole. Fixed Handle.

£54.87  Excl VAT £65.84  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.4180XCQ

Handwheel DIN950 Aluminium. 180mm Dia. 0.625" Reamed Hole. Revolving Handle.

£66.15  Excl VAT £79.38  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.0200XCQ

Handwheel DIN950 Aluminium. 200mm Dia. 0.625" Reamed Hole.

£48.48  Excl VAT £58.18  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.2200XCQ

Handwheel DIN950 Aluminium. 200mm Dia. 0.625" Reamed Hole. Fixed Handle.

£63.40  Excl VAT £76.08  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.4200XCQ

Handwheel DIN950 Aluminium. 200mm Dia. 0.625" Reamed Hole. Revolving Handle.

£74.18  Excl VAT £89.02  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.0200XCR

Handwheel DIN950 Aluminium. 200mm Dia. 0.75" Reamed Hole.

£48.48  Excl VAT £58.18  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.2200XCR

Handwheel DIN950 Aluminium. 200mm Dia. 0.75" Reamed Hole. Fixed Handle.

£63.40  Excl VAT £76.08  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.4200XCR

Handwheel DIN950 Aluminium. 200mm Dia. 0.75" Reamed Hole. Revolving Handle.

£74.18  Excl VAT £89.02  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.0250XCR

Handwheel DIN950 Aluminium. 250mm Dia. 0.75" Reamed Hole.

£79.57  Excl VAT £95.48  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.2250XCR

Handwheel DIN950 Aluminium. 250mm Dia. 0.75" Reamed Hole. Fixed Handle.

£99.49  Excl VAT £119.39  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.4250XCR

Handwheel DIN950 Aluminium. 250mm Dia. 0.75" Reamed Hole. Revolving Handle.

£112.39  Excl VAT £134.87  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.0250XCV

Handwheel DIN950 Aluminium. 250mm Dia. 0.875" Reamed Hole.

£79.57  Excl VAT £95.48  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.2250XCV

Handwheel DIN950 Aluminium. 250mm Dia. 0.875" Reamed Hole. Fixed Handle.

£99.49  Excl VAT £119.39  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.4250XCV

Handwheel DIN950 Aluminium. 250mm Dia. 0.875" Reamed Hole. Revolving Handle.

£112.39  Excl VAT £134.87  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.0315XCV

Handwheel DIN950 Aluminium. 350mm Dia. 0.875" Reamed Hole.

£127.60  Excl VAT £153.12  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.2315XCV

Handwheel DIN950 Aluminium. 350mm Dia. 0.875" Reamed Hole. Fixed Handle.

£143.18  Excl VAT £171.82  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.4315XCV

Handwheel DIN950 Aluminium. 350mm Dia. 0.875" Reamed Hole. Revolving Handle.

£154.75  Excl VAT £185.70  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.0315XCS

Handwheel DIN950 Aluminium. 350mm Dia. 1" Reamed Hole.

£127.60  Excl VAT £153.12  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.2315XCS

Handwheel DIN950 Aluminium. 350mm Dia. 1" Reamed Hole. Fixed Handle.

£143.18  Excl VAT £171.82  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Item Code: K0160.4315XCS

Handwheel DIN950 Aluminium. 350mm Dia. 1" Reamed Hole. Revolving Handle.

£154.75  Excl VAT £185.70  Inc VAT

Price breaks available

Dispatch by 19/06/26

Text

Qty

Showing products per page

Handwheel DIN950 Aluminium. 100mm Dia. 0.375" Reamed Hole.

Handwheel DIN950 Aluminium. 100mm Dia. 0.375" Reamed Hole.

Dispatch by 19/06/26

Item Code: K0160.0100XCO

£18.29  Excl VAT £21.95  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 100mm Dia. 0.375" Reamed Hole. Fixed Handle.

Handwheel DIN950 Aluminium. 100mm Dia. 0.375" Reamed Hole. Fixed Handle.

Dispatch by 19/06/26

Item Code: K0160.2100XCO

£29.50  Excl VAT £35.40  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 100mm Dia. 0.375" Reamed Hole. Revolving Handle.

Handwheel DIN950 Aluminium. 100mm Dia. 0.375" Reamed Hole. Revolving Handle.

Dispatch by 19/06/26

Item Code: K0160.4100XCO

£34.45  Excl VAT £41.34  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 100mm Dia. 0.5" Reamed Hole.

Handwheel DIN950 Aluminium. 100mm Dia. 0.5" Reamed Hole.

Dispatch by 19/06/26

Item Code: K0160.0100XCP

£18.29  Excl VAT £21.95  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 100mm Dia. 0.5" Reamed Hole. Fixed Handle.

Handwheel DIN950 Aluminium. 100mm Dia. 0.5" Reamed Hole. Fixed Handle.

Dispatch by 19/06/26

Item Code: K0160.2100XCP

£29.50  Excl VAT £35.40  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 100mm Dia. 0.5" Reamed Hole. Revolving Handle.

Handwheel DIN950 Aluminium. 100mm Dia. 0.5" Reamed Hole. Revolving Handle.

Dispatch by 19/06/26

Item Code: K0160.4100XCP

£34.45  Excl VAT £41.34  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 120mm Dia. 0.375" Reamed Hole.

Handwheel DIN950 Aluminium. 120mm Dia. 0.375" Reamed Hole.

Dispatch by 19/06/26

Item Code: K0160.0125XCO

£23.02  Excl VAT £27.62  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 120mm Dia. 0.375" Reamed Hole. Fixed Handle.

Handwheel DIN950 Aluminium. 120mm Dia. 0.375" Reamed Hole. Fixed Handle.

Dispatch by 19/06/26

Item Code: K0160.2125XCO

£36.83  Excl VAT £44.20  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 120mm Dia. 0.375" Reamed Hole. Revolving Handle.

Handwheel DIN950 Aluminium. 120mm Dia. 0.375" Reamed Hole. Revolving Handle.

Dispatch by 19/06/26

Item Code: K0160.4125XCO

£41.84  Excl VAT £50.21  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 120mm Dia. 0.5" Reamed Hole.

Handwheel DIN950 Aluminium. 120mm Dia. 0.5" Reamed Hole.

Dispatch by 19/06/26

Item Code: K0160.0125XCP

£23.02  Excl VAT £27.62  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 120mm Dia. 0.5" Reamed Hole. Fixed Handle.

Handwheel DIN950 Aluminium. 120mm Dia. 0.5" Reamed Hole. Fixed Handle.

Dispatch by 19/06/26

Item Code: K0160.2125XCP

£36.83  Excl VAT £44.20  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 120mm Dia. 0.5" Reamed Hole. Revolving Handle.

Handwheel DIN950 Aluminium. 120mm Dia. 0.5" Reamed Hole. Revolving Handle.

Dispatch by 19/06/26

Item Code: K0160.4125XCP

£41.84  Excl VAT £50.21  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 140mm Dia. 0.5" Reamed Hole.

Handwheel DIN950 Aluminium. 140mm Dia. 0.5" Reamed Hole.

Dispatch by 19/06/26

Item Code: K0160.0140XCP

£27.37  Excl VAT £32.84  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 140mm Dia. 0.5" Reamed Hole. Fixed Handle.

Handwheel DIN950 Aluminium. 140mm Dia. 0.5" Reamed Hole. Fixed Handle.

Dispatch by 19/06/26

Item Code: K0160.2140XCP

£41.00  Excl VAT £49.20  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 140mm Dia. 0.5" Reamed Hole. Revolving Handle.

Handwheel DIN950 Aluminium. 140mm Dia. 0.5" Reamed Hole. Revolving Handle.

Dispatch by 19/06/26

Item Code: K0160.4140XCP

£46.98  Excl VAT £56.38  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 140mm Dia. 0.625" Reamed Hole.

Handwheel DIN950 Aluminium. 140mm Dia. 0.625" Reamed Hole.

Dispatch by 19/06/26

Item Code: K0160.0140XCQ

£27.37  Excl VAT £32.84  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 140mm Dia. 0.625" Reamed Hole. Fixed Handle.

Handwheel DIN950 Aluminium. 140mm Dia. 0.625" Reamed Hole. Fixed Handle.

Dispatch by 19/06/26

Item Code: K0160.2140XCQ

£41.00  Excl VAT £49.20  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 140mm Dia. 0.625" Reamed Hole. Revolving Handle.

Handwheel DIN950 Aluminium. 140mm Dia. 0.625" Reamed Hole. Revolving Handle.

Dispatch by 19/06/26

Item Code: K0160.4140XCQ

£46.98  Excl VAT £56.38  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 160mm Dia. 0.5" Reamed Hole.

Handwheel DIN950 Aluminium. 160mm Dia. 0.5" Reamed Hole.

Dispatch by 19/06/26

Item Code: K0160.0160XCP

£32.45  Excl VAT £38.94  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 160mm Dia. 0.5" Reamed Hole. Fixed Handle.

Handwheel DIN950 Aluminium. 160mm Dia. 0.5" Reamed Hole. Fixed Handle.

Dispatch by 19/06/26

Item Code: K0160.2160XCP

£48.78  Excl VAT £58.54  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 160mm Dia. 0.5" Reamed Hole. Revolving Handle.

Handwheel DIN950 Aluminium. 160mm Dia. 0.5" Reamed Hole. Revolving Handle.

Dispatch by 19/06/26

Item Code: K0160.4160XCP

£56.99  Excl VAT £68.39  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 160mm Dia. 0.625" Reamed Hole.

Handwheel DIN950 Aluminium. 160mm Dia. 0.625" Reamed Hole.

Dispatch by 19/06/26

Item Code: K0160.0160XCQ

£32.45  Excl VAT £38.94  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 160mm Dia. 0.625" Reamed Hole. Fixed Handle.

Handwheel DIN950 Aluminium. 160mm Dia. 0.625" Reamed Hole. Fixed Handle.

Dispatch by 19/06/26

Item Code: K0160.2160XCQ

£48.78  Excl VAT £58.54  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 160mm Dia. 0.625" Reamed Hole. Revolving Handle.

Handwheel DIN950 Aluminium. 160mm Dia. 0.625" Reamed Hole. Revolving Handle.

Dispatch by 19/06/26

Item Code: K0160.4160XCQ

£56.99  Excl VAT £68.39  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 180mm Dia. 0.5" Reamed Hole.

Handwheel DIN950 Aluminium. 180mm Dia. 0.5" Reamed Hole.

Dispatch by 19/06/26

Item Code: K0160.0180XCP

£39.20  Excl VAT £47.04  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 180mm Dia. 0.5" Reamed Hole. Fixed Handle.

Handwheel DIN950 Aluminium. 180mm Dia. 0.5" Reamed Hole. Fixed Handle.

Dispatch by 19/06/26

Item Code: K0160.2180XCP

£54.87  Excl VAT £65.84  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 180mm Dia. 0.5" Reamed Hole. Revolving Handle.

Handwheel DIN950 Aluminium. 180mm Dia. 0.5" Reamed Hole. Revolving Handle.

Dispatch by 19/06/26

Item Code: K0160.4180XCP

£66.15  Excl VAT £79.38  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 180mm Dia. 0.625" Reamed Hole.

Handwheel DIN950 Aluminium. 180mm Dia. 0.625" Reamed Hole.

Dispatch by 19/06/26

Item Code: K0160.0180XCQ

£39.20  Excl VAT £47.04  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 180mm Dia. 0.625" Reamed Hole. Fixed Handle.

Handwheel DIN950 Aluminium. 180mm Dia. 0.625" Reamed Hole. Fixed Handle.

Dispatch by 19/06/26

Item Code: K0160.2180XCQ

£54.87  Excl VAT £65.84  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 180mm Dia. 0.625" Reamed Hole. Revolving Handle.

Handwheel DIN950 Aluminium. 180mm Dia. 0.625" Reamed Hole. Revolving Handle.

Dispatch by 19/06/26

Item Code: K0160.4180XCQ

£66.15  Excl VAT £79.38  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 200mm Dia. 0.625" Reamed Hole.

Handwheel DIN950 Aluminium. 200mm Dia. 0.625" Reamed Hole.

Dispatch by 19/06/26

Item Code: K0160.0200XCQ

£48.48  Excl VAT £58.18  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 200mm Dia. 0.625" Reamed Hole. Fixed Handle.

Handwheel DIN950 Aluminium. 200mm Dia. 0.625" Reamed Hole. Fixed Handle.

Dispatch by 19/06/26

Item Code: K0160.2200XCQ

£63.40  Excl VAT £76.08  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 200mm Dia. 0.625" Reamed Hole. Revolving Handle.

Handwheel DIN950 Aluminium. 200mm Dia. 0.625" Reamed Hole. Revolving Handle.

Dispatch by 19/06/26

Item Code: K0160.4200XCQ

£74.18  Excl VAT £89.02  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 200mm Dia. 0.75" Reamed Hole.

Handwheel DIN950 Aluminium. 200mm Dia. 0.75" Reamed Hole.

Dispatch by 19/06/26

Item Code: K0160.0200XCR

£48.48  Excl VAT £58.18  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 200mm Dia. 0.75" Reamed Hole. Fixed Handle.

Handwheel DIN950 Aluminium. 200mm Dia. 0.75" Reamed Hole. Fixed Handle.

Dispatch by 19/06/26

Item Code: K0160.2200XCR

£63.40  Excl VAT £76.08  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 200mm Dia. 0.75" Reamed Hole. Revolving Handle.

Handwheel DIN950 Aluminium. 200mm Dia. 0.75" Reamed Hole. Revolving Handle.

Dispatch by 19/06/26

Item Code: K0160.4200XCR

£74.18  Excl VAT £89.02  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 250mm Dia. 0.75" Reamed Hole.

Handwheel DIN950 Aluminium. 250mm Dia. 0.75" Reamed Hole.

Dispatch by 19/06/26

Item Code: K0160.0250XCR

£79.57  Excl VAT £95.48  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 250mm Dia. 0.75" Reamed Hole. Fixed Handle.

Handwheel DIN950 Aluminium. 250mm Dia. 0.75" Reamed Hole. Fixed Handle.

Dispatch by 19/06/26

Item Code: K0160.2250XCR

£99.49  Excl VAT £119.39  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 250mm Dia. 0.75" Reamed Hole. Revolving Handle.

Handwheel DIN950 Aluminium. 250mm Dia. 0.75" Reamed Hole. Revolving Handle.

Dispatch by 19/06/26

Item Code: K0160.4250XCR

£112.39  Excl VAT £134.87  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 250mm Dia. 0.875" Reamed Hole.

Handwheel DIN950 Aluminium. 250mm Dia. 0.875" Reamed Hole.

Dispatch by 19/06/26

Item Code: K0160.0250XCV

£79.57  Excl VAT £95.48  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 250mm Dia. 0.875" Reamed Hole. Fixed Handle.

Handwheel DIN950 Aluminium. 250mm Dia. 0.875" Reamed Hole. Fixed Handle.

Dispatch by 19/06/26

Item Code: K0160.2250XCV

£99.49  Excl VAT £119.39  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 250mm Dia. 0.875" Reamed Hole. Revolving Handle.

Handwheel DIN950 Aluminium. 250mm Dia. 0.875" Reamed Hole. Revolving Handle.

Dispatch by 19/06/26

Item Code: K0160.4250XCV

£112.39  Excl VAT £134.87  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 350mm Dia. 0.875" Reamed Hole.

Handwheel DIN950 Aluminium. 350mm Dia. 0.875" Reamed Hole.

Dispatch by 19/06/26

Item Code: K0160.0315XCV

£127.60  Excl VAT £153.12  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 350mm Dia. 0.875" Reamed Hole. Fixed Handle.

Handwheel DIN950 Aluminium. 350mm Dia. 0.875" Reamed Hole. Fixed Handle.

Dispatch by 19/06/26

Item Code: K0160.2315XCV

£143.18  Excl VAT £171.82  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 350mm Dia. 0.875" Reamed Hole. Revolving Handle.

Handwheel DIN950 Aluminium. 350mm Dia. 0.875" Reamed Hole. Revolving Handle.

Dispatch by 19/06/26

Item Code: K0160.4315XCV

£154.75  Excl VAT £185.70  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 350mm Dia. 1" Reamed Hole.

Handwheel DIN950 Aluminium. 350mm Dia. 1" Reamed Hole.

Dispatch by 19/06/26

Item Code: K0160.0315XCS

£127.60  Excl VAT £153.12  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 350mm Dia. 1" Reamed Hole. Fixed Handle.

Handwheel DIN950 Aluminium. 350mm Dia. 1" Reamed Hole. Fixed Handle.

Dispatch by 19/06/26

Item Code: K0160.2315XCS

£143.18  Excl VAT £171.82  Inc VAT

Price breaks available

Text

Qty

Handwheel DIN950 Aluminium. 350mm Dia. 1" Reamed Hole. Revolving Handle.

Handwheel DIN950 Aluminium. 350mm Dia. 1" Reamed Hole. Revolving Handle.

Dispatch by 19/06/26

Item Code: K0160.4315XCS

£154.75  Excl VAT £185.70  Inc VAT

Price breaks available

Text

Qty

Showing products per page

{
    "id": "1534",
    "layout_id": "",
    "parent_id": "1533",
    "name": "K0160 Inch - Aluminium Handwheels",
    "slug": "k0160-inch-aluminium-handwheels",
    "meta_title": "K0160 Inch - Aluminium Handwheels",
    "meta_description": "",
    "canonical_override": "",
    "long_description": "",
    "short_description": "<div id=\"category-description-short-1\">\r\n<div style=\"text-align: left;\">\r\n<p><strong>Material:<\/strong><br \/>\r\nHandwheel aluminum.<br \/>\r\nFixed grip aluminum, center pin black oxidized steel.<br \/>\r\nRevolving grip aluminum, center pin trivalent blue passivated steel.<\/p>\r\n\r\n<p><strong>Version:<\/strong><br \/>\r\nWheel rim turned and polished.<\/p>\r\n\r\n<p><strong>Note:<\/strong><br \/>\r\nFor the inch series, dimension D2 is in inches, all other dimensions are in mm.<\/p>\r\n<\/div>\r\n\r\n<div class=\"category-desc-drawings\" style=\"display: flex; justify-content: center; flex-wrap: wrap; gap: 20px; margin-top: 20px;\"><img src=\"https:\/\/images.shopcdn.co.uk\/17\/a5\/17a56e2de19213df09847f5187be8022\/1024x1024\/webp\/fit?quality=100&amp;compression=100&amp;t=1761908468\" \/><\/div>\r\n<\/div>",
    "active": "1",
    "visible": "1",
    "show_products": "1",
    "order_num": "89",
    "default_sortby": "aa",
    "deleted": "0",
    "created": "2025-10-31 10:53:27",
    "updated": "2025-10-31 11:02:11",
    "images": [
        {
            "url": "https:\/\/images.shopcdn.co.uk\/68\/60\/686041871e016330e7b8f6e51a5697e6\/1024x1024\/webp\/fit?quality=100&amp;compression=100",
            "contain_url": "https:\/\/images.shopcdn.co.uk\/68\/60\/686041871e016330e7b8f6e51a5697e6\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "crop_url": "https:\/\/images.shopcdn.co.uk\/68\/60\/686041871e016330e7b8f6e51a5697e6\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "original_url": "https:\/\/images.shopcdn.co.uk\/68\/60\/686041871e016330e7b8f6e51a5697e6\/1200x882\/webp\/resize?quality=100&amp;compression=100"
        }
    ],
    "is_parent_category": false,
    "is_product_group": false,
    "parent_category_title": "Inch Handwheels",
    "parent_category_url": "inch-handwheels",
    "path": "Inch Parts > Inch Handwheels > K0160 Inch - Aluminium Handwheels",
    "path_list": [
        "Inch Parts",
        "Inch Handwheels",
        "K0160 Inch - Aluminium Handwheels"
    ],
    "selectedTags": [],
    "availableProducts": {
        "key": "available",
        "doc_count": 60,
        "stockLevel": {
            "untracked": 60,
            "in_stock": 0
        }
    },
    "unavailableProducts": {
        "key": "unavailable",
        "doc_count": 0
    },
    "product_attributes": [
        "D1",
        "D2",
        "D3",
        "fixed machine handle DIN 39 style E",
        "L1",
        "L3",
        "Number of spokes",
        "revolving grip DIN 98 style E",
        "Style",
        "Version"
    ]
}

Category Image Schema
