K0159 - Ball Knobs In Duroplastic Four Types Thread Size M4-M12
Back to K0159 Ball Knobs In Duroplastic Form L Press Fit Sleeve Size 5mm-12mm

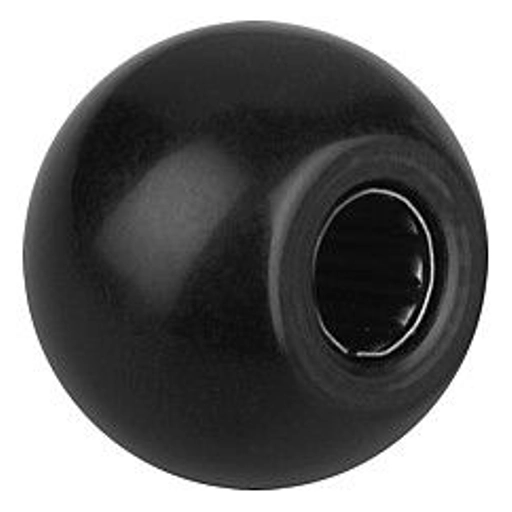

Ball Knob. 8mm Hole Diameter. 32mm Ball Diameter. Duroplastic. Black.

Item Code: K0159.43208

Ball Knob. 8mm Hole Diameter. 32mm Ball Diameter. Duroplastic. Black.

Item Code: K0159.43208

Ball Knob. 8mm Hole Diameter. 32mm Ball Diameter. Duroplastic. Black.

Material: Black duroplastic PF 31.
Bush in galvanized steel.
Surface finish: Deburred and high-polish finish. Note: Assembly Form L: The Ball Knobs are mounted firmly by tapping a hammer lightly. Please only use a rubber or plastic hammer, with a weight up to 200 g! Shank tolerance: Ball knobs with clamping sleeves can be mounted on standard rods with tolerance h9. The clamping sleeve supplied assures a firm and reliable fit.

Quick Links

Dispatch by 03/07/25

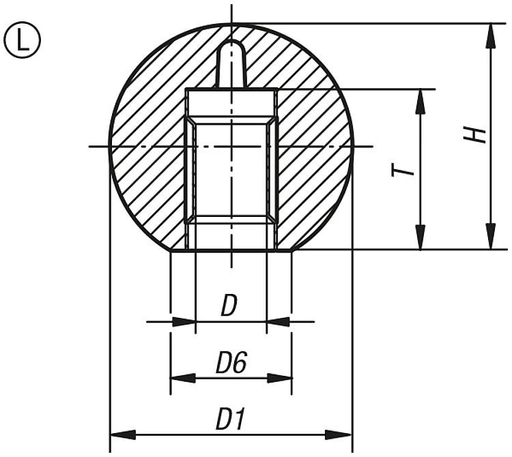

D: 8

D1: 32

D6: 18

DIN: DIN 319 extended

Form: L

H: 29

T: 15

£2.22 ea. Excl VAT £2.66 ea. Inc VAT
