Back to K0159 Ball Knobs In Duroplastic Form E Threaded Bush Size M4-M12

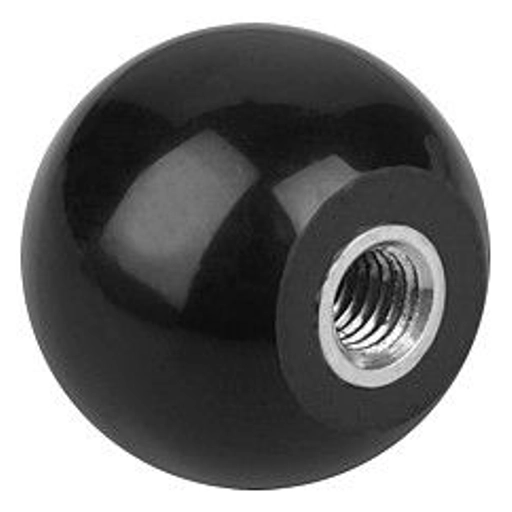

Ball Knob. M6 Steel Thread. Ball Diameter 20mm. Duroplastic. Black.

Item Code: K0159.22006

Ball Knob. M6 Steel Thread. Ball Diameter 20mm. Duroplastic. Black.

Item Code: K0159.22006

Ball Knob. M6 Steel Thread. Ball Diameter 20mm. Duroplastic. Black.

Material: Black duroplastic PF 31.
Bush in galvanized steel.
Surface finish: Deburred and high-polish finish. Note: Assembly Form L: The ball knobs are mounted firmly by tapping a hammer lightly. Please only use a rubber or plastic hammer, with a weight up to 200 g! The version K0159.21604 has a bush in copper-plated steel.
The versions K0159.23008, K0159.23508 and K0159.24008 have a bush in brass. On request: These versions are available from stock in dark red at extra charge. Shank tolerance: Ball knobs with clamping sleeves can be mounted on standard rods with tolerance h9. The clamping sleeve supplied assures a firm and reliable fit.

Quick Links

20 in stock

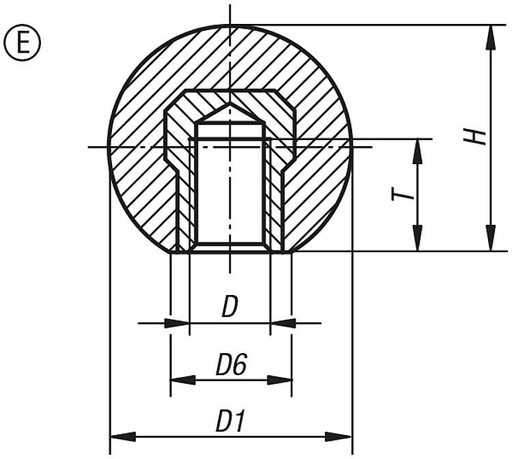

Form: E

D: M6

D1: 20

H: 18

T: 9

DIN: DIN 319 extended

D6: 12

£0.73 ea. Excl VAT £0.88 ea. Inc VAT
