Item Code: K0159.11604

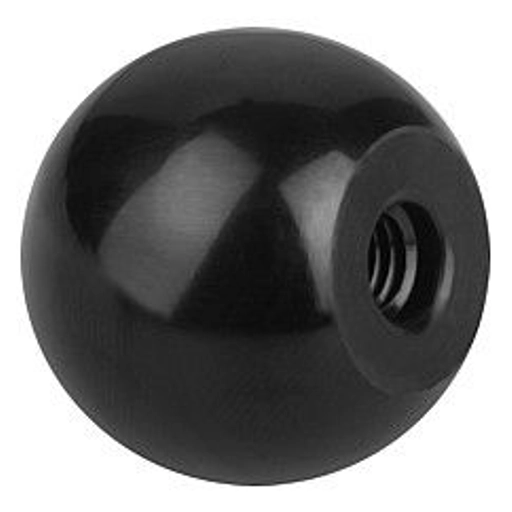

Ball Knob. M4 Thread. Ball Diameter 16mm. Duroplastic. Black.

Item Code: K0159.11604

Ball Knob. M4 Thread. Ball Diameter 16mm. Duroplastic. Black.

Material: Black duroplastic PF 31.
Bush in galvanized steel.
Surface finish: Deburred and high-polish finish. Note: Assembly Form L: The ball knobs are mounted firmly by tapping a hammer lightly. Please only use a rubber or plastic hammer, with a weight up to 200 g! The version K0159.21604 has a bush in copper-plated steel.
The versions K0159.23008, K0159.23508 and K0159.24008 have a bush in brass. On request: These versions are available from stock in dark red at extra charge. Shank tolerance: Ball knobs with clamping sleeves can be mounted on standard rods with tolerance h9. The clamping sleeve supplied assures a firm and reliable fit.

Quick Links

18 in stock

M4
16
8
DIN 319 extended
C
15
6

£0.52  ea. Excl VAT £0.62  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
50 + £0.45 14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material: Black duroplastic PF 31.
Bush in galvanized steel.
Surface finish: Deburred and high-polish finish. Note: Assembly Form L: The ball knobs are mounted firmly by tapping a hammer lightly. Please only use a rubber or plastic hammer, with a weight up to 200 g! The version K0159.21604 has a bush in copper-plated steel.
The versions K0159.23008, K0159.23508 and K0159.24008 have a bush in brass. On request: These versions are available from stock in dark red at extra charge. Shank tolerance: Ball knobs with clamping sleeves can be mounted on standard rods with tolerance h9. The clamping sleeve supplied assures a firm and reliable fit.

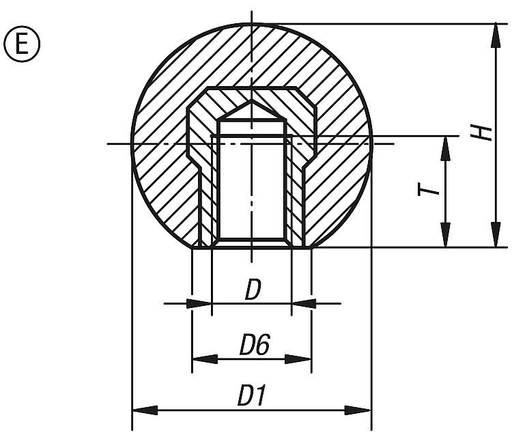

DM4
D116
D68
DINDIN 319 extended
FormC
H15
T6
STP
Thread TypeFemale
Thread SizeM4
Grip Diameter16mm
Thread MaterialPlastic
Grip MaterialPlastic
ColourBlack
