K0153 Star Knobs In Plastic With Steel & Stainless Steel External Thread Size M5-M12

K0153 Star Knobs In Plastic With Steel & Stainless Steel External Thread Size M5-M12

Material:
Black thermoplastic.
Steel grade 5.8 or stainless steel 1.4305.

Version:
Metal parts trivalent blue passivated steel or bright stainless steel.

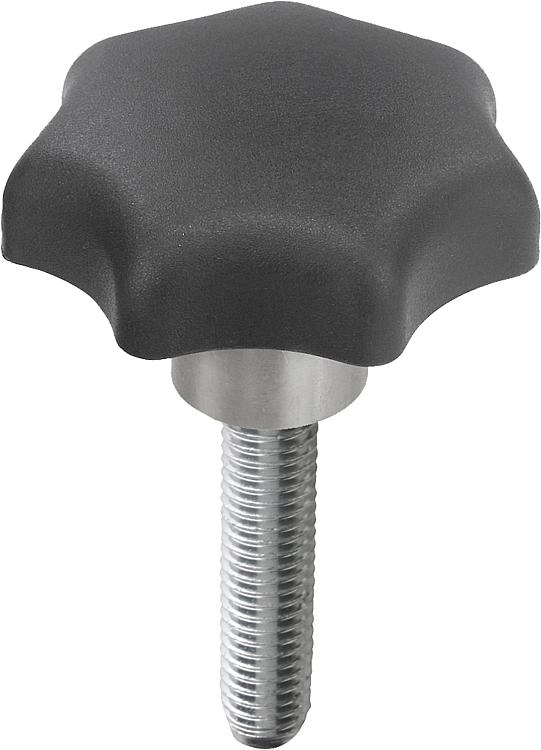

Star Grip. Steel Bush. M6x15mm Thread. Plastic. 32mm Grip Diameter. Steel Thread. Plastic.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Style

Line drawing placeholder

Move drawing here

	D	D1	D2	Form	H	H2	H3	L	Price (Exc. Tax)	Stock
Filters
K0153.405X10 View product	M5	25	10	L	17	9	7	10	£1.74	0
K0153.405X15 View product	M5	25	10	L	17	9	7	15	£1.74	0
K0153.405X20 View product	M5	25	10	L	17	9	7	20	£1.74	0
K0153.406X10 View product	M6	32	13,5	L	21	11	9,5	10	£1.98	30
K0153.406X15 View product	M6	32	13,5	L	21	11	9,5	15	£1.98	0
K0153.406X20 View product	M6	32	13,5	L	21	11	9,5	20	£1.98	0
K0153.406X25 View product	M6	32	13,5	L	21	11	9,5	25	£2.23	0
K0153.406X30 View product	M6	32	13,5	L	21	11	9,5	30	£2.23	0
K0153.408X15 View product	M8	40	13,5	L	25	13	10	15	£2.31	0
K0153.408X20 View product	M8	40	13,5	L	25	13	10	20	£2.39	0
K0153.408X25 View product	M8	40	13,5	L	25	13	10	25	£2.46	0
K0153.408X30 View product	M8	40	13,5	L	25	13	10	30	£2.53	0
K0153.408X40 View product	M8	40	13,5	L	25	13	10	40	£2.61	0
K0153.408X50 View product	M8	40	13,5	L	25	13	10	50	£2.80	0
K0153.410X20 View product	M10	50	19	L	32	17	12	20	£2.93	0
K0153.410X25 View product	M10	50	19	L	32	17	12	25	£3.20	0
K0153.410X30 View product	M10	50	19	L	32	17	12	30	£3.46	0
K0153.410X40 View product	M10	50	19	L	32	17	12	40	£3.79	33
K0153.410X50 View product	M10	50	19	L	32	17	12	50	£4.13	0
K0153.410X60 View product	M10	50	19	L	32	17	12	60	£4.21	0
K0153.412X20 View product	M12	63	19	L	37	18	12	20	£4.02	0
K0153.412X25 View product	M12	63	19	L	37	18	12	25	£4.35	0
K0153.412X30 View product	M12	63	19	L	37	18	12	30	£4.69	0
K0153.412X40 View product	M12	63	19	L	37	18	12	40	£5.01	0
K0153.412X50 View product	M12	63	19	L	37	18	12	50	£5.33	40
K0153.412X60 View product	M12	63	19	L	37	18	12	60	£5.67	0
K0153.505X10 View product	M5	25	10	L	17	9	7	10	£2.39	0
K0153.505X15 View product	M5	25	10	L	17	9	7	15	£2.39	0
K0153.505X20 View product	M5	25	10	L	17	9	7	20	£2.39	0
K0153.506X10 View product	M6	32	13,5	L	21	11	9,5	10	£2.87	0
K0153.506X15 View product	M6	32	13,5	L	21	11	9,5	15	£2.87	0
K0153.506X20 View product	M6	32	13,5	L	21	11	9,5	20	£2.87	0
K0153.506X25 View product	M6	32	13,5	L	21	11	9,5	25	£3.03	0
K0153.506X30 View product	M6	32	13,5	L	21	11	9,5	30	£3.03	0
K0153.508X15 View product	M8	40	13,5	L	25	13	10	15	£3.62	0
K0153.508X20 View product	M8	40	13,5	L	25	13	10	20	£3.68	0
K0153.508X25 View product	M8	40	13,5	L	25	13	10	25	£3.79	0
K0153.508X30 View product	M8	40	13,5	L	25	13	10	30	£3.88	0
K0153.508X40 View product	M8	40	13,5	L	25	13	10	40	£4.02	0
K0153.508X50 View product	M8	40	13,5	L	25	13	10	50	£4.13	11
K0153.510X20 View product	M10	50	19	L	32	17	12	20	£4.84	0
K0153.510X25 View product	M10	50	19	L	32	17	12	25	£4.92	0
K0153.510X30 View product	M10	50	19	L	32	17	12	30	£5.01	0
K0153.510X40 View product	M10	50	19	L	32	17	12	40	£5.09	0
K0153.510X50 View product	M10	50	19	L	32	17	12	50	£5.18	0
K0153.510X60 View product	M10	50	19	L	32	17	12	60	£5.27	0
K0153.512X20 View product	M12	63	19	L	37	18	12	20	£6.08	0
K0153.512X25 View product	M12	63	19	L	37	18	12	25	£6.25	0
